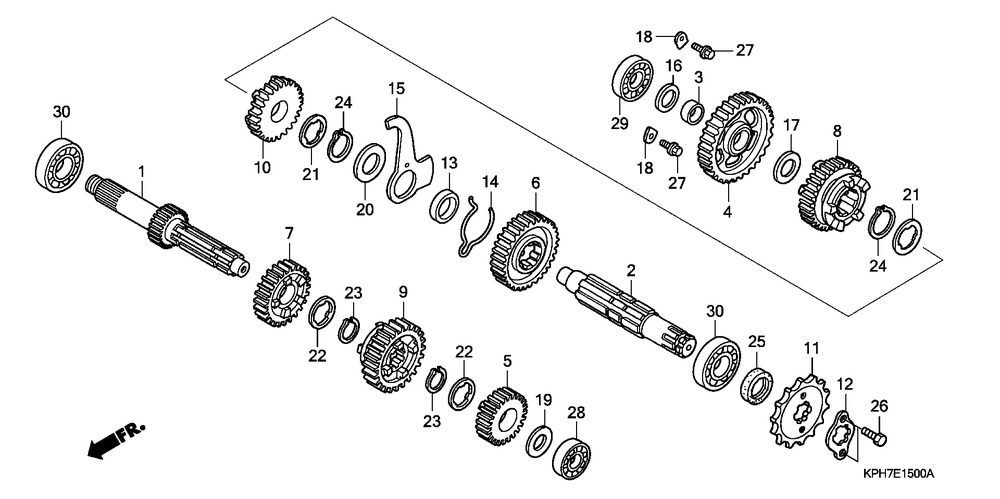

1
23211-KPH-900
MAINSHAFT (14T)
UTGÅTT
2
23221-KPH-900
COUNTERSHAFT
1155:-
3
23415-KPH-900
BUSH, 15MM
65:-
4
23421-KPH-900
GEAR, COUNTERSHAFT FIRST (35T)
305:-
5
23431-KPH-700
GEAR, MAINSHAFT SECOND (20T)
460:-
6
23441-KPH-900
GEAR, COUNTERSHAFT SECOND (31T)
210:-
7
23451-KPH-700
GEAR, MAINSHAFT THIRD (20T)
485:-
8
23461-KPH-900
GEAR, COUNTERSHAFT THIRD (23T)
UTGÅTT
9
23471-KPH-700
GEAR, MAINSHAFT FOURTH (26T)
605:-
10
23481-KPH-700
GEAR, COUNTERSHAFT FOURTH (24T)
390:-
11
23801-KPH-970
SPROCKET, DRIVE (14T)
410:-
12
23802-GN5-910
PLATE, FIXING
60:-
13
23911-KPH-900
COLLAR, LOCK PLATE
30:-
14
24305-KPH-900
SPRING, CHANGE FRICTION
15:-
15
24306-KPH-900
PLATE, DRUM LOCK
70:-
16
90412-KPH900
WASHER, SPECIAL, 12X23
25:-
17
90412-187000
WASHER, THRUST, 15MM
40:-
18
90441-KA4700
PLATE, BEARING HOLDER, åtgår 2st
50:-
19
90452-KGH900
WASHER, SPECIAL, 12MM
UTGÅTT
20
90452-413000
WASHER, THRUST, 20MM
55:-
21
90461-GB4770
WASHER, SPLINE, 20X1.2, åtgår 2st
45:-
22
90461-115000
WASHER, SPLINE, 17MM, åtgår 2st
40:-
23
90601-001000
CIRCLIP, EXTERNAL, 17MM, åtgår 2st
25:-
24
90605-200000
SET RING, 20MM, åtgår 2st
40:-
25
91204-KPH901
OIL SEAL, 17X30X5
65:-
26
92101-060100A
BOLT, HEX., 6X10, åtgår 2st
20:-
27
95701-0601400
BOLT, FLANGE, 6X14, åtgår 2st
15:-
28
96100-6001000
BEARING, RADIAL BALL, 6001
170:-
29
96100-6201000
BEARING, RADIAL BALL, 6201
155:-
30
96100-6203000
BEARING, RADIAL BALL, 6203, åtgår 2st
160:-
