1
16001-246

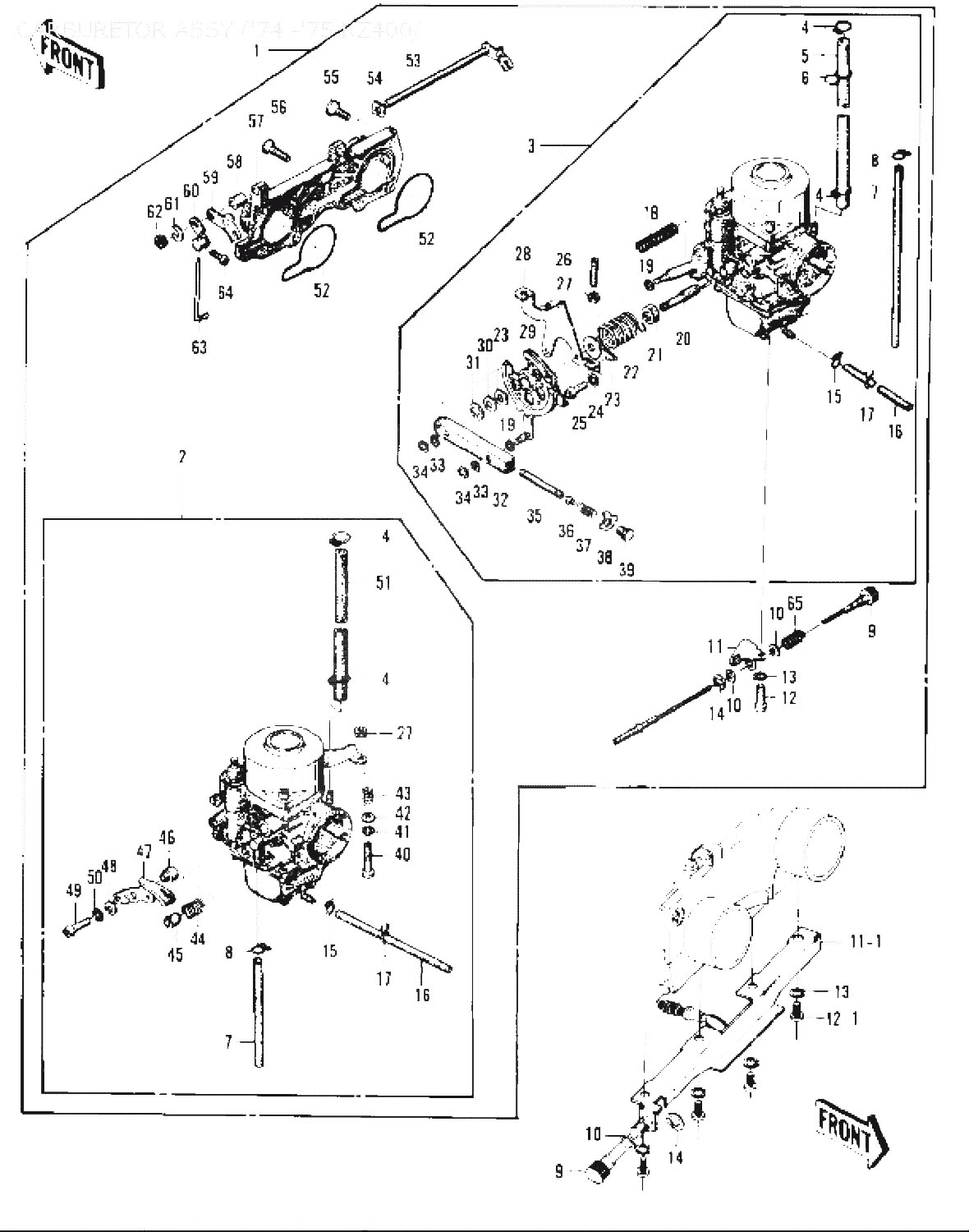

CARBURETOR ASSY
10452:-
1
16001-246
CARBURETOR ASSY
10452:-
1
16001-246
CARBURETOR ASSY
10452:-
2
16001-247
CARBURETOR,R.H
4868:-
3
16001-248
CARBURETOR,L.H
4552:-
5
92059-112
HOSE,FUEL
130:-
6
16044-005
CLAMP,FUEL HOSE
31:-
8
16044-004
CLAMP,HOSE, åtgår 2st
21:-
9
16021-024
SCREW,THROTTLE STOP
196:-
10
16039-029
WASHER,PLAIN,7MM, åtgår 2st
31:-
10
16039-029
WASHER,PLAIN,7MM
31:-
11
16055-008
PLATE,THR STOP SCREW
51:-
11
16065-044
STAY PLATE
153:-
12
220B0-412
SCREW-PAN-CRSOSS,4X12
*
12
220B0-416
SCREW PAN HEAD 4X16, åtgår 4st
*
13
461F0-400
WASHER SPRING 4MM
*
13
461F0-400
WASHER SPRING 4MM, åtgår 4st
*
14
482J6-000
CIRCLIP 6MM
*
15
92037-1142
CLAMP,TUBE,OVERFLOW, åtgår 2st
39:-
17
16044-002
CLAMP,OVERFLOW HOSE, åtgår 2st
21:-
18
16040-013
SPRING,THR CABLE PLY
37:-
19
16034-009
WASHER,WAVE, åtgår 2st
21:-
20
16041-008
SCREW,BALANCE ADJUST
119:-
21
16003-010
NUT,5MM
31:-
22
16040-011
SPRING,ADJUST
105:-
23
16039-023
WASHER,PLAIN, åtgår 2st
17:-
24
461F0-500
WASHER SPRING 5MM, åtgår 2st
*
25
220B0-510
SCREW PAN HEAD 5X10, åtgår 2st
*
26
16046-006
SCREW,SLOTTED
31:-
27
16003-011
NUT,5MM, åtgår 2st
31:-
28
16070-002
HOLDER,THR CABL PULY
175:-
29
16074-003
PULLEY,THROTTLE CABL
353:-
30
16039-024
WASHER,PLAIN,8MM
17:-
31
482J6-000
CIRCLIP 6MM
*
32
16071-002
LINK,ADJUSTER
228:-
33
16039-030
WASHER,PLAIN,3MM, åtgår 2st
31:-
34
16008-013
CIRCLIP, åtgår 2st
21:-
35
16002-015
ROD CABLE ADJUSTING
58:-
36
16042-007
PLUG,CABLE ADJST ROD
26:-
37
16040-012
SPRING,CABLE ADJUST
31:-
38
16054-006
WASHER,LOCK,7MM
27:-
39
16067-007
BOLT,HEX HEAD,7MM
55:-
40
16021-025
SCREW,THROTTLE STOP
64:-
41
16039-025
WASHER,PLAIN,5MM
37:-
42
16039-026
WASHER,PLAIN,5MM
17:-
43
16022-012
SPRING,THR STOP SCREW
21:-
44
16040-014
SPRING,CHOKE LEVER
68:-
45
16147-002
CONTACT,CHOKE LEVER
111:-
46
16073-010
COLLAR,CHOKE LEVER
59:-
47
16063-006
LEVER,CHOKE
109:-
48
16039-027
WASHER,PLAIN
26:-
49
220B0-520
SCREW PAN HEAD 5X20
*
50
461F0-500
WASHER SPRING 5MM
*
51
92059-113
HOSE,FUEL
113:-
52
16038-015
"O" RING,CARB MOUNT, åtgår 2st
129:-
53
16041-009
SHAFT,THROTTLE VALVE
148:-
54
16034-010
WASHER,WAVE, åtgår 2st
27:-
55
220B0-616
SCREW PAN HEAD 6X16, åtgår 2st
*
56
220B0-620
SCREW PAN HEAD 6X20, åtgår 2st
*
57
16070-003
PLATE,CARB MOUNTING
644:-
58
16073-011
COLLAR,CHOKE LEV SHFT
21:-
59
16063-007
LEVER,THROTTLE VALVE
54:-
60
16063-008
LEVER,THROTTLE VALVE
72:-
61
16054-007
WASHER,LOCK,6MM
27:-
62
16003-012
NUT,6MM
21:-
63
16024-013
ROD
31:-
64
220B0-305A
SCREW PAN HEAD 3X5
*
65
16022-011
SPRING,THR STOP SCREW
81:-
* Kontakta kundtjänst för prisuppgift: 018-15 60 00
