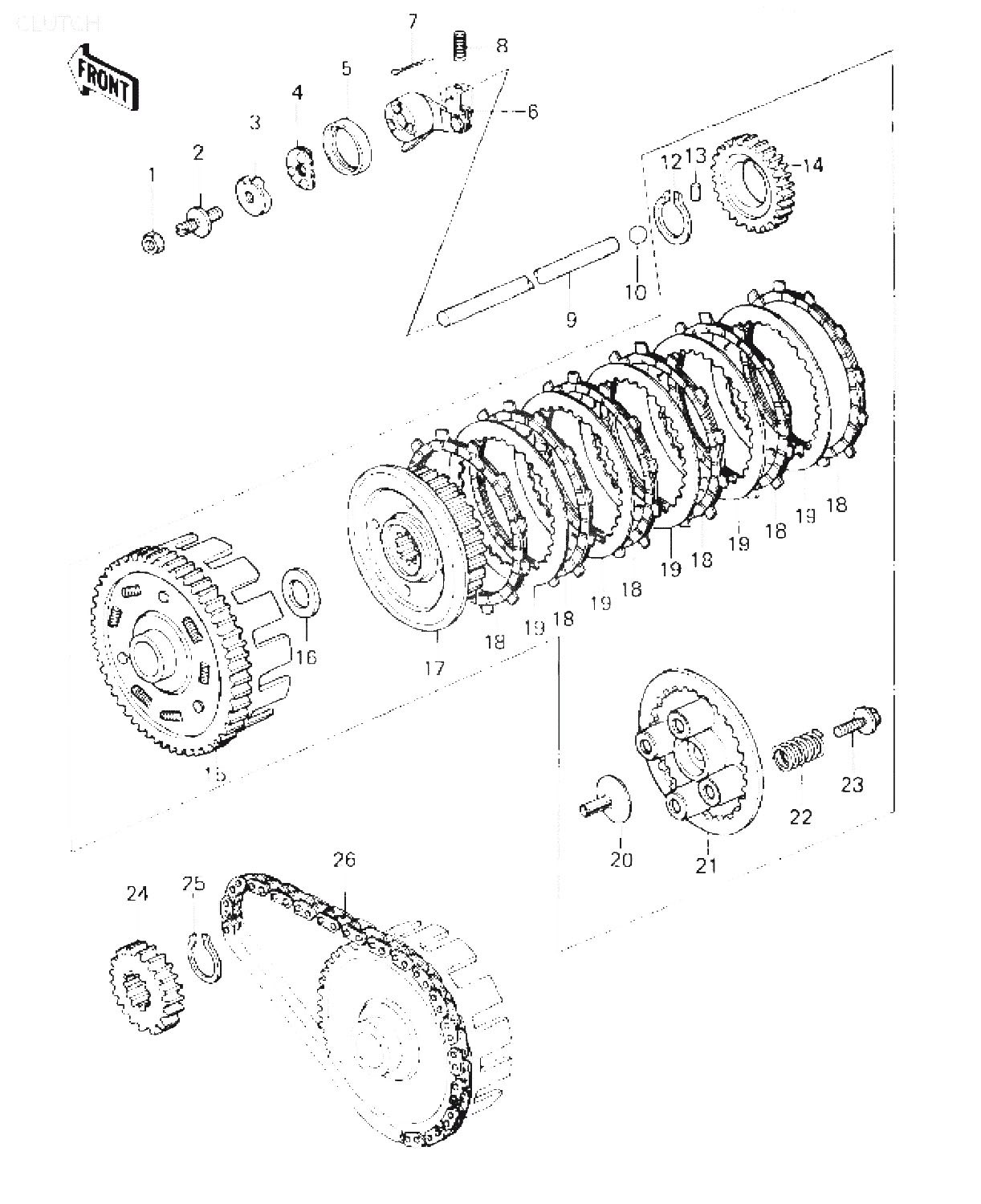

1
318B0-800
NUT 8MM
*
2
92009-1009
SCREW,SLOTTED,8M/M
*
3
13119-1003
CAM,RELEASE,CLUTCH
117:-
5
92049-1003
OIL SEAL,CLUTCH RELES
99:-
6
13102-1004
RELEASE, CLUTCH
*
7
550D1-615
PIN COTTER 1.6X15
*
8
92081-1058
SPRING,CLUTCH RETURN
*
9
13116-1017
ROD,PUSH,CLUTCH
*
10
600A1-200
BALL STEEL 3/8'
*
11
13081-1019
CLUTCH-ASSY
5465:-
12
480J3-800
CIRCLIP, 38MM
*
13
610A0-606
PIN, DOWELL, 6X6
*
14
59051-1001
GEAR,OIL PUMP,34T
507:-
15
13095-1008
HOUSING,CLUTCH
3557:-
16
92022-288
WASHER,CLUTCH THRUST
138:-
17
13087-040
HUB,CLUTCH
839:-
18
13088-1001
PLATE,FRICTION, åtgår 6st
*
19
13089-026
PLATE,CLUTCH STEEL, åtgår 5st
92:-
20
13116-029
PUSHER,CLTCH SPRG PLT
247:-
21
13187-1003
PLATE,CLUTCH SPRING
535:-
22
92081-1033
SPRING,CLUTCH, åtgår 4st
87:-
23
92001-1066
BOLT,CLUTCH SPR FITT, åtgår 4st
55:-
24
13121-030
SPROCKET,PRIMARY
609:-
25
480J3-000
CIRCLIP,30MM
*
26
13122-005A
CHAIN,PRIMARY DRIVE
*
* Kontakta kundtjänst för prisuppgift: 018-15 60 00
