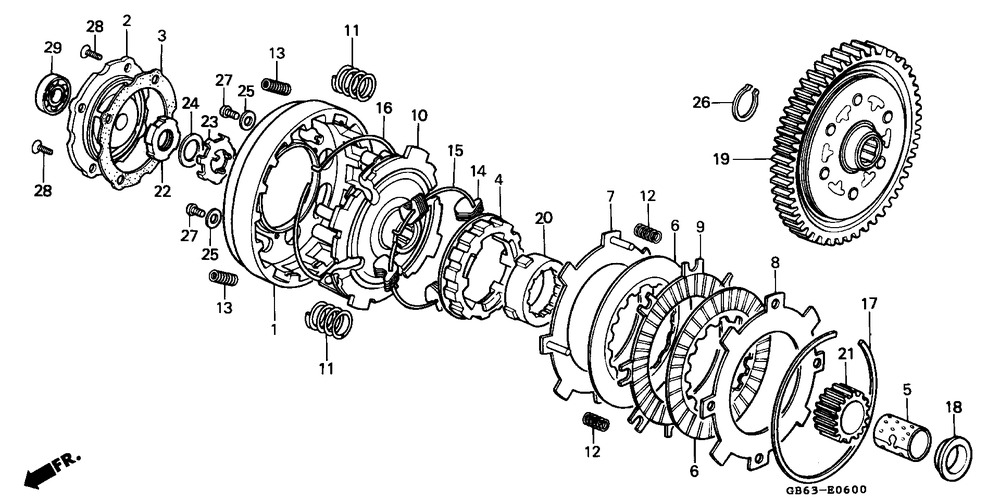

1
22101-178-000
OUTER, CLUTCH
740:-
2
22111-178-010
COVER, CLUTCH OUTER
137:-
3
22119-178-306
GASKET, CLUTCH OUTER COVER
38:-
4
22121-178-000
CENTER, CLUTCH (17T)
*
5
22131-035-030
GUIDE, CLUTCH CENTER
206:-
6
22201-GW8-681
DISK A, CLUTCH FRICTION, åtgår 2st
175:-
7
22310-GB0-910
PLATE A, CLUTCH
212:-
8
22321-046-020
PLATE B, CLUTCH
98:-
9
22331-GW8-681
DISK B, CLUTCH FRICTION
175:-
10
22351-178-020
PLATE, DRIVE
948:-
11
22401-178-000
SPRING, CLUTCH
*
12
22411-178-000
SPRING, CLUTCH FREE, åtgår 4st
30:-
13
22421-040-000
SPRING, CLUTCH DAMPER, åtgår 4st
28:-
14
22531-178-000
WEIGHT, CLUTCH, åtgår 28st
28:-
15
22535-033-000
RING, CLUTCH WEIGHT CENTER
53:-
16
22536-033-000
RING, CLUTCH WEIGHT STOPPER
53:-
17
22901-001-000
SET RING, 102MM
53:-
18
22911-GB4-680
COLLAR, 17MM
73:-
19
23110-086-030
GEAR, PRIMARY DRIVEN (69T)
*
20
23112-178-020
OUTER, DRIVE GEAR
*
21
23120-086-020
GEAR, PRIMARY DRIVE (17T)
553:-
22
90231-087010
NUT, LOCK, 14MM
47:-
23
90431-086000
WASHER, LOCK, 14MM
37:-
24
90432-086000
WASHER B, LOCK
81:-
25
90483-178000
WASHER, STOPPER, 14MM, åtgår 4st
40:-
26
90601-001000
CIRCLIP, EXTERNAL, 17MM
27:-
27
93500-050100A
SCREW, PAN, 5X10, åtgår 4st
618:-
28
93600-050100A
SCREW, FLAT, 5X10, åtgår 4st
811:-
29
96100-6000000
BEARING, RADIAL BALL, 6000
205:-
* Kontakta kundtjänst för prisuppgift: 018-15 60 00
