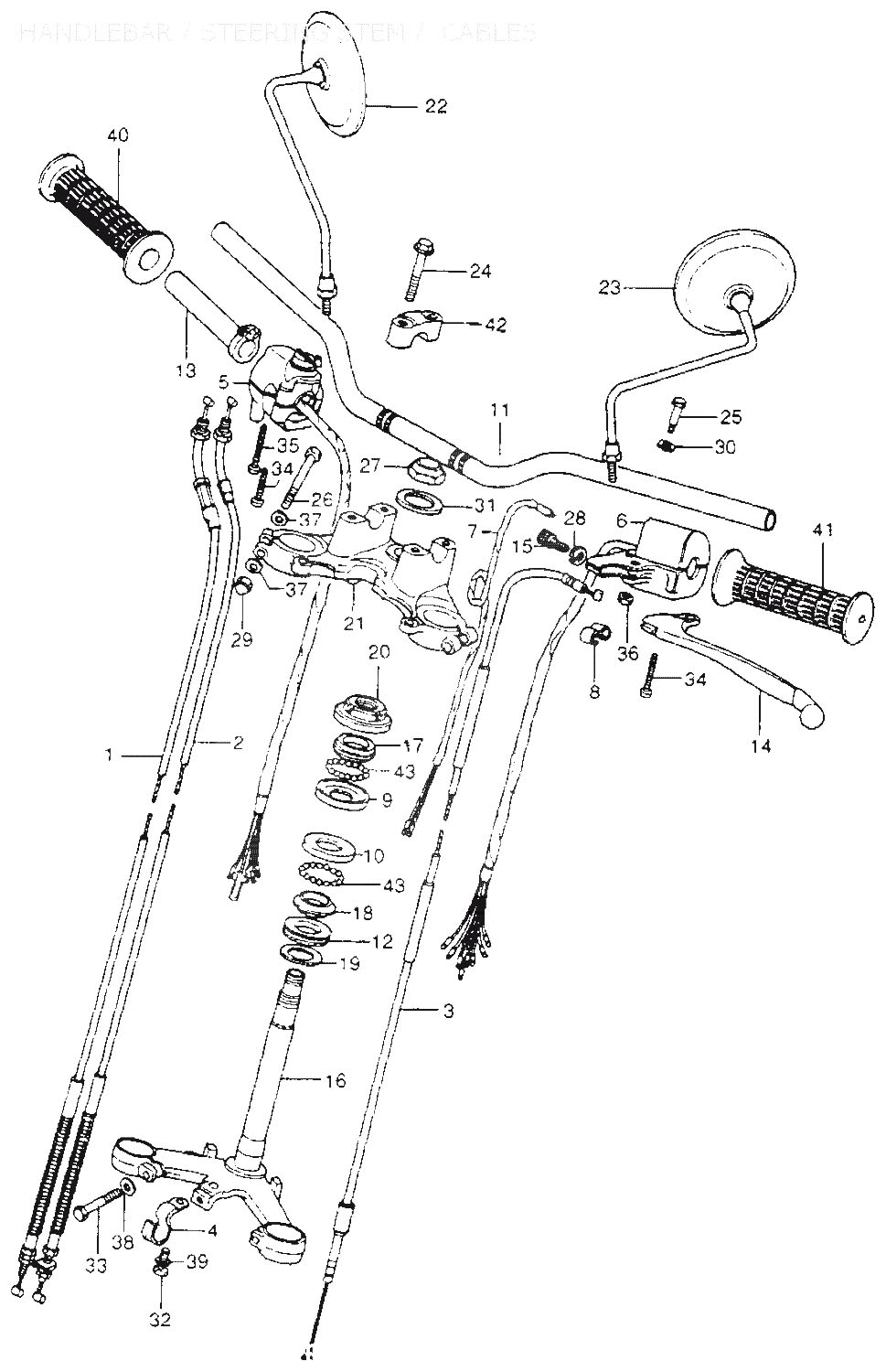

1
17910-377-000
CABLE COMP,A THRO
610:-
2
17920-377-000
CABLE COMP,B THRO
370:-
3
22870-377-000
CABLE COMP,CLUTCH
635:-
4
32123-375-000
CLIP D,HARNESS
*
5
35130-377-P00
SW.ASSY.,START KI
1250:-
5
35130-377-670
(35130-377-P00) SW ASSY,STAT KILL
1250:-
6
35200-377-671
SWITCH,WINKER
*
8
45465-370-000
CLIP,CABLE
*
9
50301-268-000
RACE,STRG.TOP
242:-
10
50302-268-000
RACE,STRG.BOTTOM
242:-
10
50302-268-010
RACE.(STRG.BOT).B
242:-
10
50302-268-305
RACE, STEERING
242:-
11
53100-377-000
PIPE,STRG.HANDLE
1720:-
13
53141-300-010
PIPE,THROTTLEGRIP
226:-
14
53178-329-000
LEVER,L.STEERING
307:-
14
53190-329-000
LEVER,L.HANDLE
213:-
15
53192-268-000
BOLT
166:-
16
53200-377-010B
STEM CONP.,STRG
*
17
53211-268-000
RACE,STRG.TOP
317:-
17
53211-268-010
RACE.(STRG.TOP) C
317:-
17
53211-268-305
RACE
317:-
18
53212-250-000
RACE,STRG.BOTTOM
209:-
18
53212-250-010
RACE,(STRG.BOT.)
209:-
18
53212-250-305
RACE
209:-
19
53215-250-000
DUST SEAL WASHER
38:-
20
53220-286-000
THREAD,HEAD TOP
496:-
21
53230-377-305
BRIDGE,FORK TOP
*
22
88100-333-004
MIRROR,R.BACK
451:-
22
88110-333-611
R.BACK MIRROR
390:-
23
88120-333-004
MIRROR,L.BACK
451:-
23
88120-333-610
MIRROR,L.BACK
451:-
23
88120-333-611
L.BACK MIRROR
390:-
24
90111-362000
BOLT,FLANGE,8X36, åtgår 4st
136:-
25
90114-310000
BOLT,PIVOT
157:-
26
92000-080560B
BOLT, HEX., 8X56, åtgår 2st
56:-
26
92101-080560B
BOLT,HEX 8X56, åtgår 2st
56:-
27
90304-415000
NUT,STEERING STEM
167:-
27
95020-11300
NUT,STEM,A3
167:-
28
90321-315670
NUT,FIXING
208:-
28
90321-968000
NUT,FIXING
208:-
29
94021-080200S
NUT HEX CAP 8MM, åtgår 2st
13:-
29
94021-080210S
NUT,HEX.CAP,8MM, åtgår 2st
13:-
30
90501-310000
WASHER,7X12
32:-
31
90503-283000
WASHER, STEM
69:-
32
92000-080160A
BOLT,HEX 8X16
16:-
32
92101-080160A
BOLT,HEX.,8X16
16:-
33
92101-080320B
BOLT,HEX 8X32, åtgår 2st
52:-
34
93500-050250A
SCREW,PAN,5X25, åtgår 3st
17:-
35
93500-050320A
SCREW CROSS 5X32
10:-
36
94001-062000S
NUT,HEX.,6MM
13:-
37
94101-08000
WASHER,PLAIN,8MM, åtgår 4st
9:-
38
94101-08000
WASHER,PLAIN,8MM, åtgår 2st
9:-
39
94102-08000
WASHER,8MM
9:-
40
95011-14100
GLIP,R HANDLE
166:-
41
95011-14200
GLIP,L HANDLE
146:-
42
95014-22200
HOLDER,B2 HANDLE, åtgår 2st
166:-
43
96211-08000
BALL,STEEL.,8, åtgår 37st
8:-
* Kontakta kundtjänst för prisuppgift: 018-15 60 00
