Honda
»
CB550 (FOUR) (CB550F1 SUPER SPORT 550 FOUR 1976 (GERMANY))

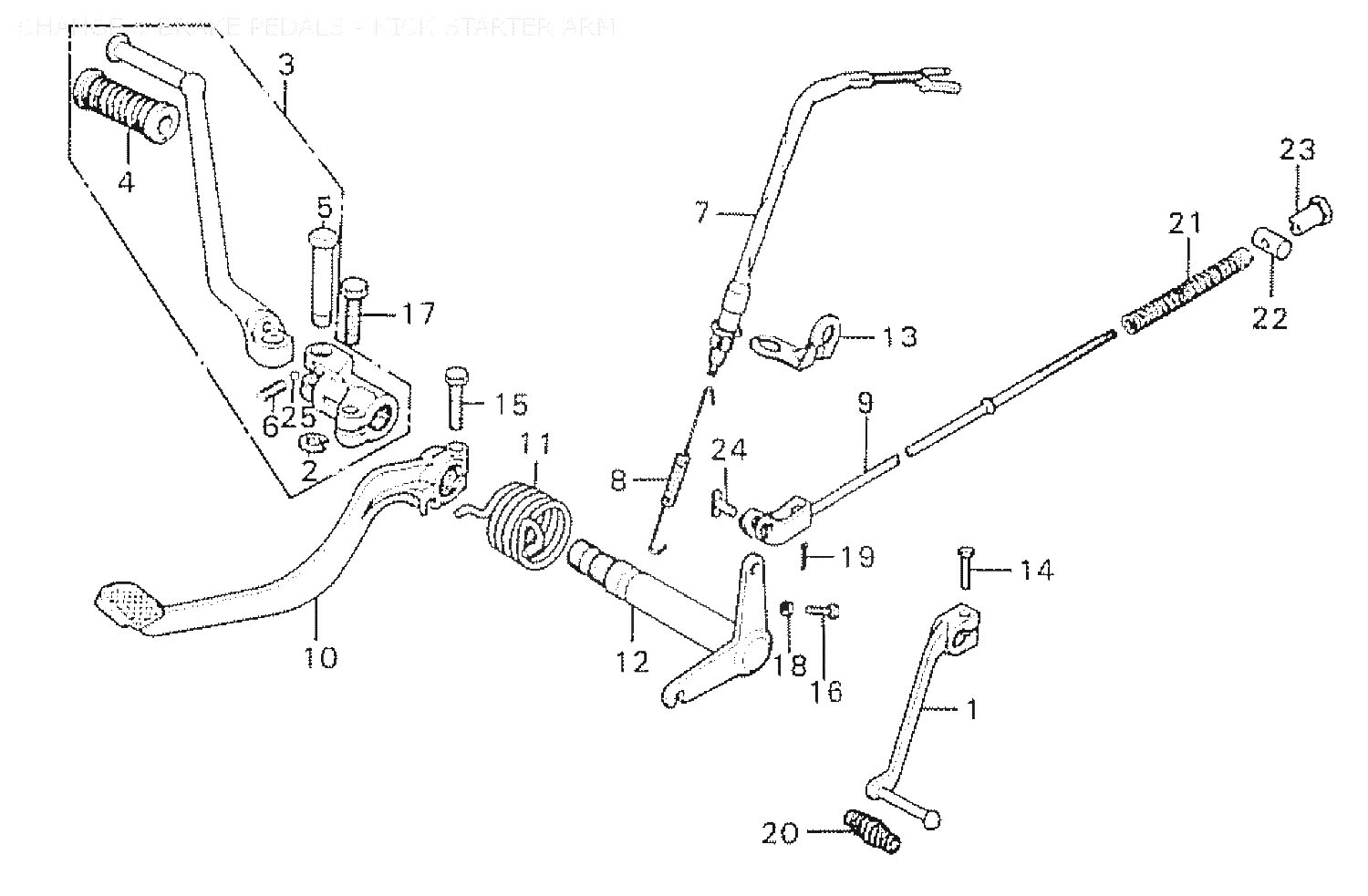

» CHANGE & BRAKE PEDALS - KICK STARTER ARM 1
24700-390-000
PEDAL,GEAR CHANGE
*
2
28293-250-000
CLIP
72:-
3
28300-390-000
ARM,KICK
*
4
28311-329-000
RUBBER,KICK
80:-
5
28321-390-000
PIN,KICK KNUCKLE
*
6
28333-300-000
SPRING KICK
55:-
7
35350-292-003
(35350-KJ9-405) SWITCH,STOP LAMP
215:-
8
35357-011-000
SPRING
35:-
9
43451-323-010
ROD,REAR BRAKE
*
10
46500-390-000
PEDAL COMP,BRAKE
*
11
46514-390-000
SPRING,BRAKEPEDAL
*
12
46515-390-000
SHAFT,RR.BRAKE
*
13
50157-390-000
BRACKET,STOP SW
*
14
92000-06020
BOLT,HEX 6X20
20:-
15
92000-080280A
BOLT,HEX 8X28
35:-
16
92030-06032
BOLT,HEX.,6X32
*
17
93200-080280A
BOLT,HEX 8X28
1306:-
18
94002-06000
NUT,THIN 6MM
15:-
19
94201-16150
PIN,COTTER 1.6X15
5:-
20
95011-40000
RUB.,CHANGE PEDAL
20:-
21
95014-73300
SPRING,BRAKE ROD
20:-
22
95015-32001
JOINT, BRAKE ARM
20:-
23
95015-42000
NUT,ADJUST
50:-
24
95015-52000
PIN,JOINT
50:-
25
96211-08000
BALL,STEEL.,8
10:-
* Kontakta kundtjänst för prisuppgift: 018-15 60 00
