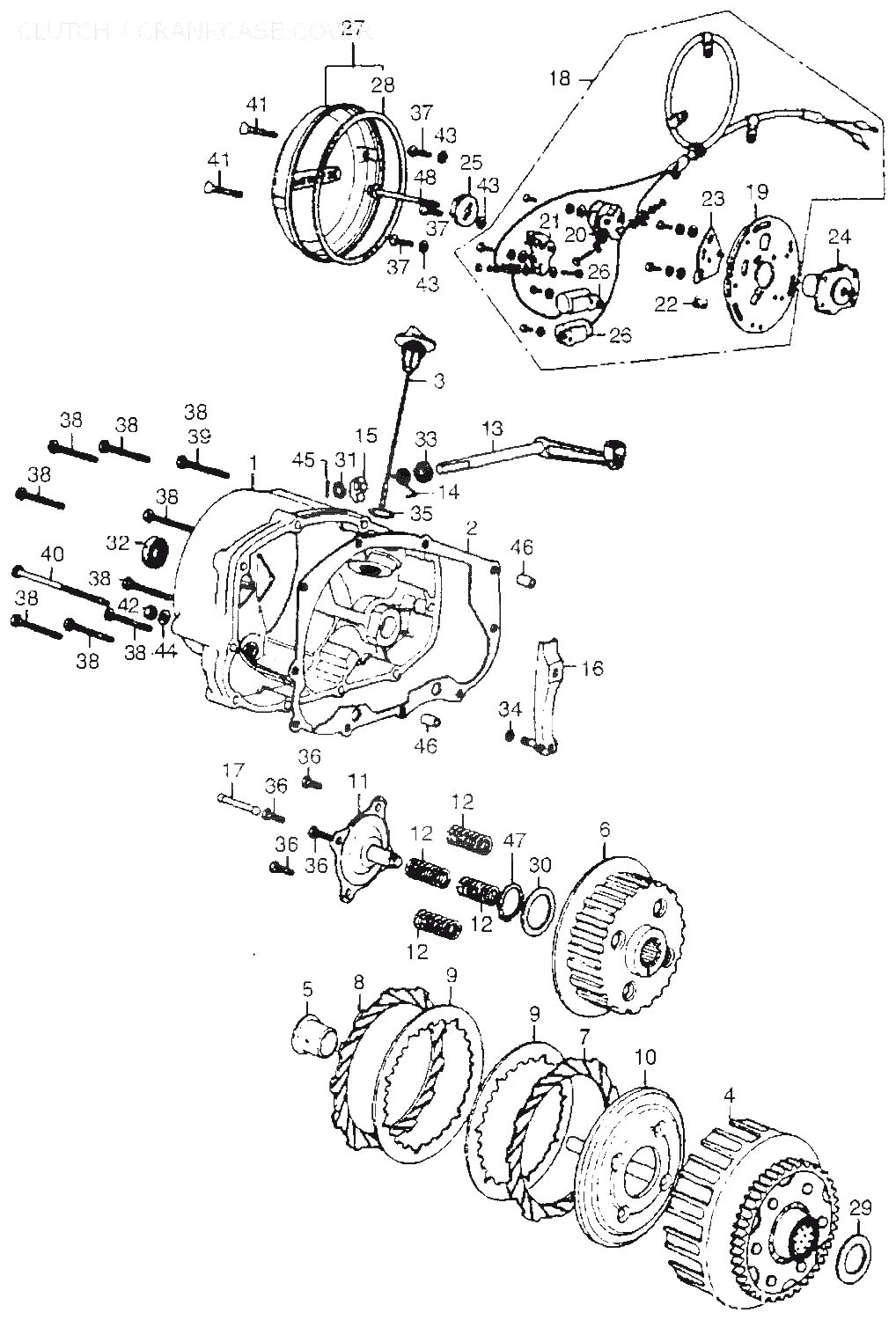

1
11331-374-010
COVER, R. CRANKCASE
*
1
11331-390-000
COVER,R.CRANKCASE
7457:-
2
11394-374-306
GSKT,R CK/C
*
2
11394-390-306
GASKET,CRANK CASE
185:-
3
15650-323-000
GAUGE,OIL LEVEL
*
4
22100-390-000
OUTER ., CLUTCH
*
5
22116-374-300
COLLAR (25MM)
*
6
22120-390-000
CENTER ., CLUTCH
*
7
22201-286-010
DISK CLUTCH, åtgår 6st
320:-
8
22202-392-000
DISK B,CLUH.
310:-
9
22321-MT3-000
(22321-GHB-811) PLATE,CLUTCH, åtgår 6st
205:-
9
22321-374-000
PLATE, CLUTCH, åtgår 6st
205:-
10
22350-390-000
PLATE, CLUTCH
*
11
22360-390-000
PLATE.,CLUTCH
*
12
22401-374-000
SPRING, CLUTCH, åtgår 4st
70:-
13
22710-374-010
LEVER,CLUTCH
*
14
22815-374-000
SPRING,CLUH.LEVER
*
15
22821-116-000
CAM,CLUTCH LIFTER
125:-
16
22831-333-010
(22831-333-020) LEVER,CLUTCH ADJ.
*
16
22831-333-020
LEVER,CLUTCH ADJG
*
17
22850-333-000
ROD,CLUTCH LIFTER
146:-
18
30200-323-005
(30200-323-154) BREAKER,CONTACT
1180:-
18
30200-323-154
BREAKER,CONTACT
1300:-
19
30201-300-015
PLATE,CONTACT BRK
*
19
30201-300-154
PLATE,CONTACT BRK
213:-
20
30203-300-005
(30203-300-154) CYLN,CONTACT
735:-
20
30203-300-154
CYLN,CONTACT
735:-
21
30204-300-005
(30204-300-154) CYLN,CONTACT
735:-
21
30204-300-154
CYLN,CONTACT
735:-
22
30205-003-005
FELT, OIL
98:-
22
30205-300-154
FELT,OIL
55:-
23
30215-300-005
(30215-300-154) PLATE,SHIFT BRK.
*
23
30215-300-154
PLATE,SHIFT BRK.
148:-
24
30220-323-005
ADVANCER,SPARK
*
24
30220-323-154
ADVANCER,SPARK
*
25
30233-300-000
WASHER,SPECIAL
204:-
26
30250-300-005
COMP,CONDENSER, åtgår 2st
720:-
26
30250-300-154
COMP,CONDENSER, åtgår 2st
720:-
27
30370-323-000
COVER,POINT
970:-
28
30372-300-300
GASKET,POINT
120:-
29
90455-374000
WASHER,THRUST
*
30
90458-323010
SPACER,0.1MM
*
30
90459-323010
SPACER,0.3MM
*
30
90460-323010
SPACER,0.5MM
*
31
90471-333000
WASHER,10MM
*
32
91204-286003
OIL SEAL,18X29X7
40:-
32
91204-286005
OIL-SEAL,18X29X7
40:-
33
91206-333003
OIL SEAL
50:-
33
91259-VM0000
DUST,10X16X4.5
75:-
34
91301-704000
O RING, 6M/M
*
36
92020-06022
BOLT,HEX.,6X22, åtgår 4st
10:-
36
92022-06022
BOLT,HEX.,6X22, åtgår 4st
20:-
36
92022-060220A
BOLT,HEX.,6X22, åtgår 4st
25:-
36
92101-060220A
BOLT,HEX.,6X22, åtgår 4st
25:-
37
93500-050120A
SCREW,CROSS,5X12, åtgår 3st
10:-
38
93500-06032
SCREW,CROSS 6X32, åtgår 8st
15:-
38
93500-060320A
SCREW,PAN,6X32, åtgår 8st
15:-
39
93500-06075
SCREW CROSS 6X75
35:-
39
93500-060750A
SCREW,CROSS,6X75
40:-
40
93500-06080
SCREW CROSS 6X80
20:-
40
93500-060800A
SCREW PAN 6X80
20:-
41
93700-06032
SCREW,CROSS,6X32, åtgår 2st
15:-
41
93700-060320B
SCREW,OVAL,6X32, åtgår 2st
25:-
41
93700-0603202
SCREW,CROSS 6X32, åtgår 2st
25:-
42
90310-KA3711
NUT HEX 6MM
15:-
42
94000-060000S
NUT,HEX.,6MM
15:-
42
94001-060000S
NUT,HEX 6MM
15:-
42
94001-060080S
NUT,HEX.,6MM
15:-
42
94001-062000S
NUT,HEX.,6MM
15:-
42
94030-06000
NUT,HEX 6MM
15:-
43
94101-05000
WASHER,PLAIN,5MM, åtgår 3st
10:-
44
94101-06000
WASHER,PLAIN, 6MM
10:-
44
94101-06080
WASHER PLAIN 6MM
*
44
94101-06800
WASHER,PLAIN,6MM
10:-
45
94201-20150
PIN,COTTER 2.0X15
10:-
46
94301-08140
DOWEL,PIN,8X14, åtgår 2st
25:-
47
94510-25150
CIRCLIP,25M/M
35:-
48
95700-0605500
BOLT,FLANGE,6X55
35:-
48
95701-0605500
BOLT,FLANGE,6X55
35:-
* Kontakta kundtjänst för prisuppgift: 018-15 60 00
