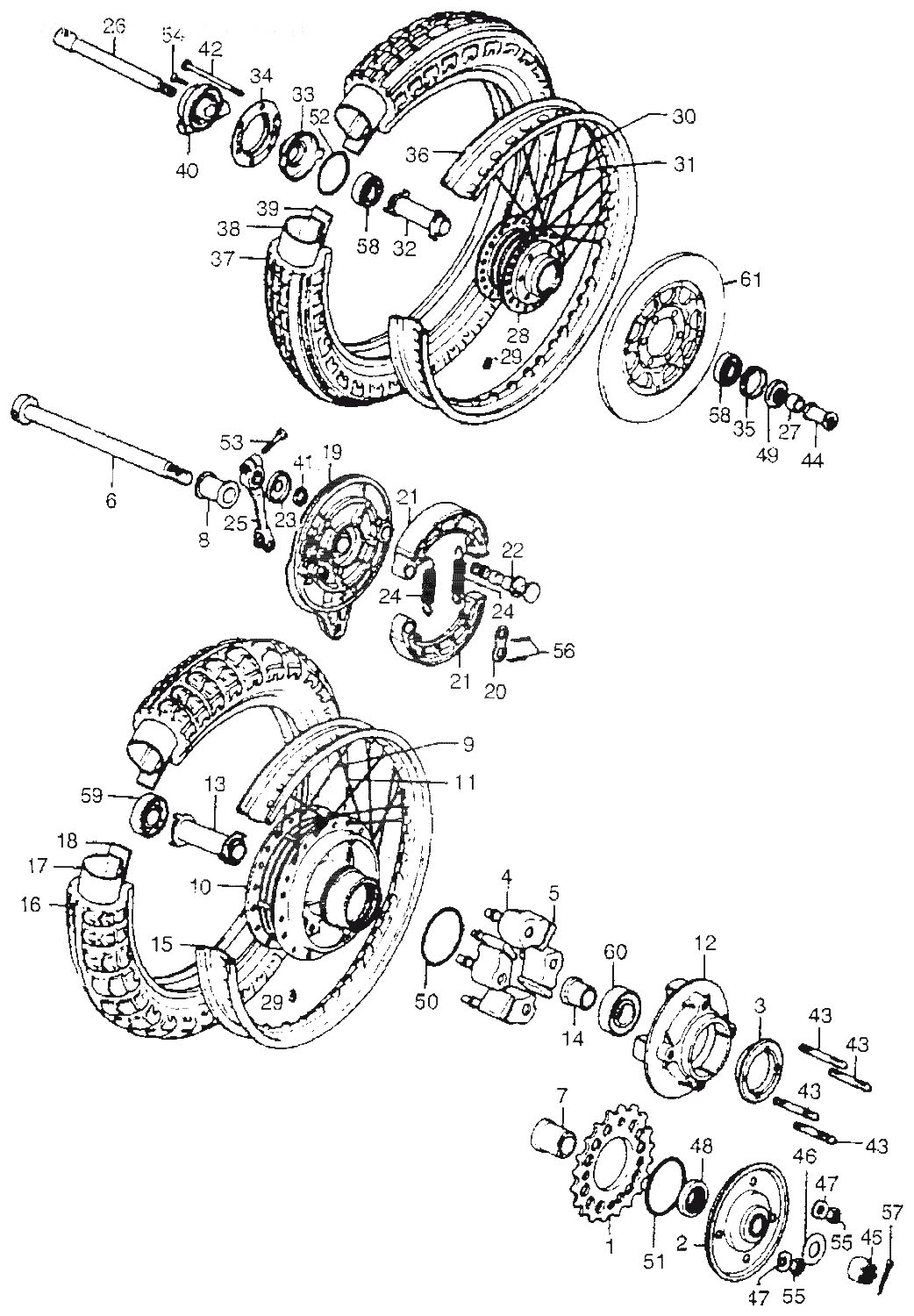

0
06430-390-405
SHOE,SET.BRAKE
*
1
41201-374-000
SPROCKET,FAINAL
*
2
41211-323-000
PLATE,SPRKT SIDE
*
3
41231-323-020
RETAINER,BEARING
*
4
41242-323-000
DAMPPER A,REAR, åtgår 4st
*
5
41243-323-000
DAMPPER B,REAR, åtgår 4st
112:-
6
42301-300-010
AXLE,REAR.WHEEL
*
6
42301-300-020
AXLE,REAR WHEEL
*
7
42311-323-040
COLLAR,REAR WHEEL
*
8
42313-323-010
COLLAR,RR BRK PNL
*
9
42601-283-000
SPOKE A, REAR, åtgår 20st
115:-
10
42601-323-030
HUB,REAR WHEEL
*
11
42604-283-000
SPOKE B, REAR, åtgår 20st
125:-
12
42610-323-000
FLANGE,FINAL
*
13
42620-323-030
COLLAR,REAR AXLE
321:-
14
42625-283-000
COLLAR
241:-
15
42701-283-003
RIM, RR. WHEEL (18)
*
15
42701-404-771
RIM,RR.WHEEL
*
16
42711-375-671
TIRE375S184S21RAM
*
17
08400-340-01
TUBE, TIRE (4.00-18)
*
17
42712-KT1-671
TUBE,TIRE (110/10
795:-
17
42712-340-006
TUBE,400-18
*
17
42712-374-003
TUBE375/400-18TR6
*
17
42712-400-003
TUBE, TIRE (4.10-18)
*
17
42712-425-003
TUBE, TIRE (4.00-18)
*
17
42712-435-003
TUBE,TIRE
*
17
44712-300-004
TUBE,TIRE
1010:-
17
42712-300-000
TUBE,TIRE BS
795:-
17
42712-300-003
TUBE375/400-18TR6
*
17
42712-310-004
TUBE,WHEEL 400-18
*
17
42712-312-003
TUBE3751400-18TR6
*
18
42713-268-003
FLAP,X-18A
100:-
19
43100-374-000
PANEL, RR. BRAKE
*
20
43102-319-000
WASHER,ANCHER PIN
45:-
20
43106-222-300
WASHER,ANCHOR PIN
*
21
06430-390-405
SHOE,SET.BRAKE, åtgår 2st
*
22
43141-374-000
CAM,REAR BRAKE
327:-
23
43145-374-000
PLATE,BRAKE
125:-
24
43151-346-000
SPRING,RR.BRAKE, åtgår 2st
80:-
25
43411-374-000
ARM,REAR BRAKE
*
26
44301-300-000
(44301-425-870) AXLE FRONT WHEEL
1375:-
26
44301-393-000
AXLE,REAR WHEEL
*
26
44301-422-000
AXLE,FR.WHEEL
*
26
44301-425-870
AXLE,FR.WHEEL
666:-
27
44311-300-000
COLLAR FR WHEEL
*
28
44601-300-040
HUB,FRONT.WHEEL
*
29
44606-283-000
BALANCER,HEEL(20G
95:-
29
44607-283-000
BALANCER, WHEEL
95:-
29
44608-283-000
BALANCER, WHEEL
75:-
29
44609-283-000
BALANCER, WHEEL
*
30
97451-6924610
SPOKE, BS 8X203, åtgår 20st
55:-
31
97B11-6924510
SPOKE, BS 8X202.5, åtgår 20st
65:-
32
44620-300-020
COLLAR FR AXLE
174:-
33
44641-375-000
RETAINER,GEAR BOX
384:-
34
44642-300-020
COVER,GEARBOX RET
172:-
35
44643-300-000
RETAINER FR WHEEL
155:-
36
44701-405-771
RIM,FR.WHEEL
2500:-
37
44711-341-003
TIRE325H194PS21F2
*
37
44711-375-671
TIRE325S194S21FAM
*
38
08400-371-10
TUBE (3.25/3.50-19)
*
38
44712-371-003
TUBE325/350-19TR6
1140:-
40
44800-323-000
BOX,SPDMT GEAR
2002:-
41
45134-250-000
DUST-SEAL, BRAKE
25:-
42
90122-300020
BOLT,8X102, åtgår 6st
245:-
43
90125-323000
BOLT,STUD,10X48, åtgår 4st
46:-
44
90305-300000
NUT,FRONT AXLE
*
44
90305-333000
(90306-425-870) NUT,FR.WHEEL AXLE
*
44
90306-425870
NUT,AXLE,12MM
259:-
45
90306-268000
NUT, WHEEL AXLE
110:-
45
90306-329770
NUT,REAR WHEEL
110:-
46
90523-292000
WASHER,18.5X38
*
47
90524-323000
WASHER,10MM, åtgår 4st
60:-
48
90753-283000
OIL SEAL, 34559
150:-
49
91252-300003
DUST,SEAL,
115:-
50
91261-323000
D RING,79X2.6
*
51
91262-323000
O RING,92X2
*
52
91302-300000
O RING,58X2
110:-
53
92000-06020
BOLT,HEX 6X20
20:-
53
92101-060200A
BOLT,HEX.,6X20
20:-
54
93700-050150A
SCREW CROSS 5X15
*
54
93700-050160A
SCREW,OVAL,5X16
15:-
55
94030-10000
NUT.HEX 10MM, åtgår 4st
10:-
56
94201-25200
PIN COTTER 2.5MM, åtgår 2st
15:-
56
94201-25250
PIN COTTER 2.5MM, åtgår 2st
10:-
56
94201-25300
PIN COTTER 2.5MM, åtgår 2st
10:-
57
94201-40300
PIN,COTTER 4.0MM
15:-
58
96140-63020
B/BRG RAD N/COM, åtgår 2st
245:-
59
96140-6304010
B/BRG RAD N/COM
355:-
60
96140-6305010
B/BRG RAD N/COM
475:-
61
45120-374-700
BRAKE,FRONT DISK
*
* Kontakta kundtjänst för prisuppgift: 018-15 60 00
