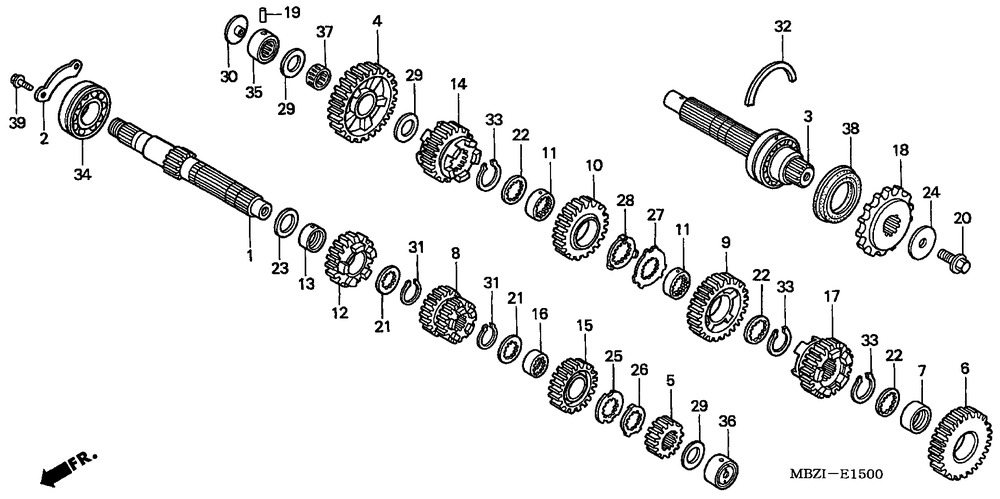

1
23211-MAL-A00
MAINSHAFT (14T)
*
2
23212-MV9-670
PLATE, BEARING SETTING
160:-
3
23220-MBZ-610
COUNTERSHAFT COMP.
3660:-
4
23421-MV9-670
GEAR, COUNTERSHAFT LOW (41T)
*
5
23431-MV9-670
GEAR, MAINSHAFT SECOND (16T)
770:-
6
23441-MAL-600
GEAR, COUNTERSHAFT SECOND (33T)
1925:-
7
23442-MM4-000
COLLAR, 28MM
275:-
8
23451-MAL-A00
GEAR, MAINSHAFT THIRD & FOURTH (17T/19T)
2625:-
9
23461-MAL-600
GEAR, COUNTERSHAFT THIRD (28T)
1970:-
10
23481-MAL-600
GEAR, COUNTERSHAFT FOURTH (26T)
1820:-
11
23482-MV9-670
COLLAR, SPLINE, 28X31X9, åtgår 2st
340:-
12
23491-MAL-600
GEAR, MAINSHAFT FIFTH (20T)
1860:-
13
23496-MM4-000
COLLAR, 25X14
385:-
14
23501-MER-D00
GEAR, COUNTERSHAFT FIFTH
*
15
23511-MAL-600
GEAR, MAINSHAFT SIXTH (23T)
1925:-
16
23512-MV9-670
COLLAR, SPLINE, 25X28X13
415:-
17
23521-MBZ-610
GEAR, COUNTERSHAFT SIXTH (25T)
2010:-
18
23801-MV9-900
SPROCKET, DRIVE (15T)
615:-
19
24261-283-000
PIN, GEARSHIFT FORK GUIDE
50:-
20
90037-422003
BOLT, SPECIAL, 10MM
150:-
21
90451-KY2000
WASHER, SPLINE, 25X31X1.5, åtgår 2st
60:-
22
90452-MR7000
WASHER, SPLINE, 28X34X1.5, åtgår 3st
50:-
23
90456-MA6000
WASHER, THRUST, 25MM
50:-
24
90459-438000
WASHER, 10.2MM
85:-
25
90461-KY2000
WASHER, SPLINE, 25MM
80:-
26
90462-KAZ000
WASHER, LOCK, 25MM
120:-
27
90463-MR7000
WASHER, SPLINE, 28MM
105:-
28
90464-MR7000
WASHER, LOCK, 28MM
105:-
29
90469-ME5000
WASHER, THRUST, 20X0.9, åtgår 3st
45:-
30
90559-MM4000
PLATE, ORIFICE
80:-
31
90601-107000
CIRCLIP, 25MM, åtgår 2st
35:-
32
90602-ML7000
SET RING, 62MM
110:-
33
90603-MN4000
CIRCLIP, 28MM, åtgår 3st
60:-
35
91023-MM4003
BEARING, NEEDLE, 20X34X16.8 (TOYO)
485:-
36
91025-MW0003
BEARING, NEEDLE, 20MM
675:-
37
91102-MM4003
BEARING, NEEDLE, 20X24X10
340:-
38
91207-MAL601
OIL SEAL, 40X62X8.4
180:-
39
95701-0601400
BOLT, FLANGE, 6X14, åtgår 2st
15:-
* Kontakta kundtjänst för prisuppgift: 018-15 60 00
