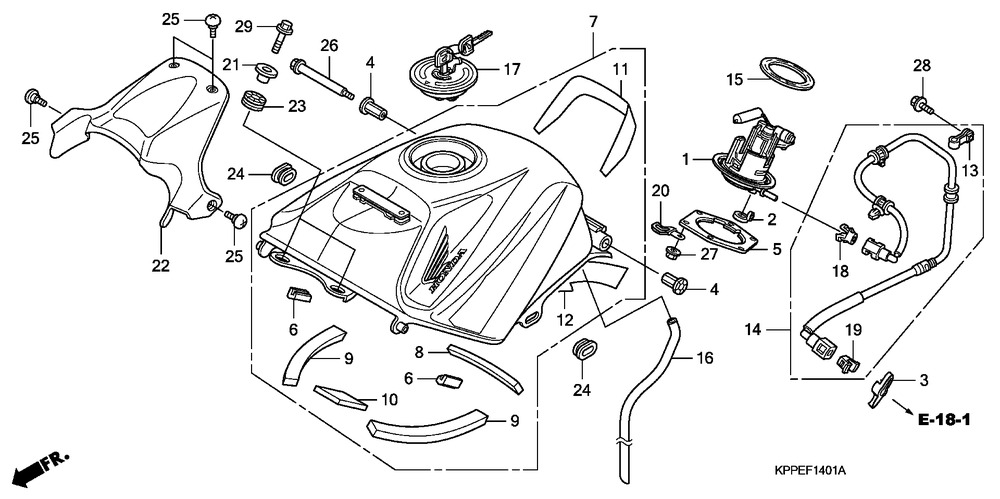

1
16700-KTY-D31
PUMP ASSY., FUEL
4896:-
2
16719-KPH-700
DAMPER, CONNECTOR
35:-
3
16719-MFJ-D00
DAMPER, CONNECTOR
60:-
4
17502-KTY-D30
CUSHION, FUEL TANK RR. PIVOT, åtgår 2st
35:-
5
17507-KTY-D30
PLATE, SETTING
80:-
6
17511-KPP-900
RUBBER, FUEL TANK, åtgår 2st
20:-
7
17520-KTY-D50ZD
TANK SET, FUEL (WL) *TYPE1 1*
5185:-
8
17531-KTY-D30
MAT, FUEL TANK
*
9
17532-KTY-D30
MAT A, FUEL TANK, åtgår 2st
*
10
17533-KTY-D30
MAT B, FUEL TANK
*
11
17534-KTY-D30
TAPE, SEAT GUARD
40:-
12
17536-KTY-D30
TAPE, TANK GUARD
*
13
17568-KTY-D30
CLAMPER, FUEL FEED HOSE
*
14
17570-KTY-D31
HOSE COMP., FUEL FEED
2116:-
15
17572-KTR-941
GASKET, FUEL PUMP
255:-
16
17575-KTY-D30
TUBE, FUEL TANK BREATHER
*
17
17620-MM5-007
CAP ASSY., FUEL FILLER
2133:-
18
17711-S0X-A31
RETAINER (GREEN) (TOKAI)
90:-
19
17711-S0X-931
RETAINER (BLUE GREEN) (TOKAI)
90:-
20
32925-958-000
CLIP, PULSER CORD
35:-
21
61104-422-000
COLLAR, SETTING, åtgår 2st
60:-
22
64450-KTY-D30
COVER, FUEL TANK
270:-
23
77208-KW7-900
RUBBER B, SEAT MOUNTING, åtgår 2st
85:-
24
83551-300-000
GROMMET, AIR CLEANER CASE, åtgår 2st
45:-
25
90114-MG9770
SCREW, PROTECTOR SETTING, åtgår 4st
35:-
26
90135-KTYD30
BOLT, TANK HINGE
65:-
27
94050-06000
NUT, FLANGE, 6MM, åtgår 6st
15:-
28
95701-0601000
BOLT, FLANGE, 6X10
25:-
29
95701-0602200
BOLT, FLANGE, 6X22, åtgår 2st
31:-
* Kontakta kundtjänst för prisuppgift: 018-15 60 00
