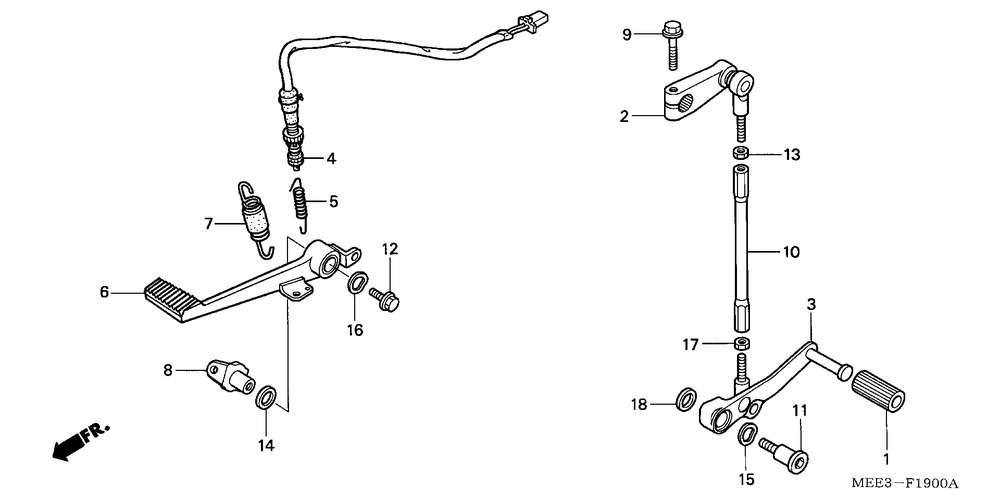

1
24705-MR7-000
RUBBER, GEAR CHANGE PEDAL
75:-
2
24710-MEE-000
ARM COMP., GEAR CHANGE
1543:-
3
24720-MEE-D00
PEDAL COMP., GEAR CHANGE
1748:-
4
35350-MEE-000
SWITCH ASSY., RR. STOP
555:-
5
35357-KE1-000
SPRING, STOP SWITCH
70:-
6
46500-MEE-000
PEDAL COMP., RR. BRAKE
2065:-
7
46513-MEE-000
SPRING SET, BRAKE PEDAL
115:-
8
50612-MEE-D00
BRACKET, MAIN STEP
465:-
9
90010-ML0720
BOLT, FLANGE, 6X20
70:-
10
90065-MEE000
BAR, CHANGE
295:-
11
90113-MCF000
BOLT, CHANGE PIVOT
200:-
12
90121-MCJ750
BOLT, FLANGE, 10X40
90:-
13
90201-700000
NUT, GOVERNOR ARM FIXING (LEFT HAND THREAD)
10:-
14
90403-MCJ750
WASHER, THRUST, 23.2MM
70:-
15
90505-MBW000
WASHER, CHANGE PEDAL WAVE
50:-
16
90505-MCJ750
WASHER, WAVE, 20.1MM
60:-
17
94001-060200S
NUT, HEX., 6MM
20:-
18
94103-08700
WASHER, PLAIN, 8MM
15:-
