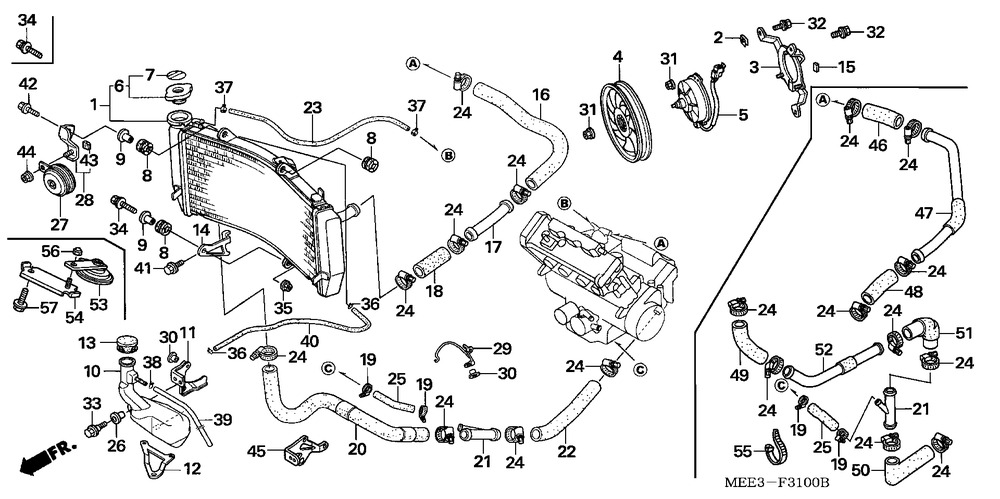

1
19010-MEE-D01
RADIATOR COMP.
9762:-
2
19014-KEA-003
NUT, SETTING, åtgår 3st
50:-
3
19015-MEE-D01
SHROUD COMP.
1193:-
4
19020-MEE-003
FAN COMP., COOLING
937:-
5
19030-MEE-D01
MOTOR ASSY., FAN
6220:-
6
19037-GEE-710
CAP COMP., RADIATOR
597:-
7
19046-PAA-A00
LABEL, RADIATOR CAP
*
8
19051-KA3-830
RUBBER, RADIATOR MOUNTING, åtgår 3st
85:-
9
19052-MN8-000
COLLAR, RADIATOR MOUNTING, åtgår 2st
70:-
10
19101-MEE-000
TANK, RADIATOR RESERVE
732:-
12
19103-MEE-D00
STAY, RESERVE TANK LOWER
105:-
13
19104-MB0-700
CAP, RESERVE TANK
137:-
14
19105-MEE-D00
STAY, RADIATOR LOWER
240:-
15
19105-MR8-300
CUSHION
41:-
19
19505-KS6-700
CLAMP A, WATER HOSE, åtgår 2st
190:-
21
19507-MEE-000
JOINT, HOSE THREE-WAY
325:-
23
19511-MEE-000
TUBE, WATER
250:-
24
19516-GAG-003
CLAMP, HOSE, 30-37MM, åtgår 10st
142:-
25
19528-MEE-000
HOSE D, WATER
157:-
26
33712-GC2-000
COLLAR A, TAILLIGHT
41:-
29
64514-MEE-000
STAY A, L. UNDER COWL
128:-
30
90111-KW3003
NUT, COWL SETTING, 5MM, åtgår 2st
31:-
31
90315-MK3003
NUT, SERRATE, 5MM, åtgår 4st
43:-
32
93401-0601407
BOLT-WASHER, 6X14, åtgår 3st
26:-
33
93401-0601600
BOLT-WASHER, 6X16
16:-
34
93404-0602800
BOLT-WASHER, 6X28, åtgår 2st
31:-
35
94050-06000
NUT, FLANGE, 6MM
17:-
36
95002-02100
CLIP, TUBE (B10), åtgår 2st
15:-
37
95002-4125008
CLAMP, TUBE (D12.5), åtgår 2st
21:-
38
95002-50000
CLIP, TUBE (C9)
15:-
39
95005-5058030
TUBE, 5X580 (95005-50001-30M)
*
40
95005-5557020
TUBE, 5.3X570 (95005-55001-20M)
*
41
95701-0601600
BOLT, FLANGE, 6X16
22:-
45
19102-MEE-D00
STAY, RESERVE TANK UPPER
177:-
46
19502-MEE-D00
HOSE A, RADIATOR UPPER
470:-
47
19503-MEE-D00
PIPE COMP., RADIATOR UPPER
1305:-
48
19504-MEE-D00
HOSE B, RADIATOR UPPER
182:-
49
19506-MEE-D00
HOSE, R. RADIATOR LOWER
575:-
50
19508-MEE-D00
HOSE, C. RADIATOR LOWER
366:-
51
19509-MEE-D00
HOSE, B. RADIATOR LOWER
325:-
52
19512-MEE-D00
PIPE COMP., RADIATOR LOWER
620:-
53
38110-MR5-871
HORN COMP. (HIGH)
1215:-
54
50155-MEE-D00
BRACKET, HORN STAY
126:-
55
90651-KV6003
BAND, WIRE, 165MM (BLACK)
71:-
56
94050-08000
NUT, FLANGE, 8MM
21:-
57
96300-0801607
BOLT, FLANGE, 8X16
26:-
* Kontakta kundtjänst för prisuppgift: 018-15 60 00
