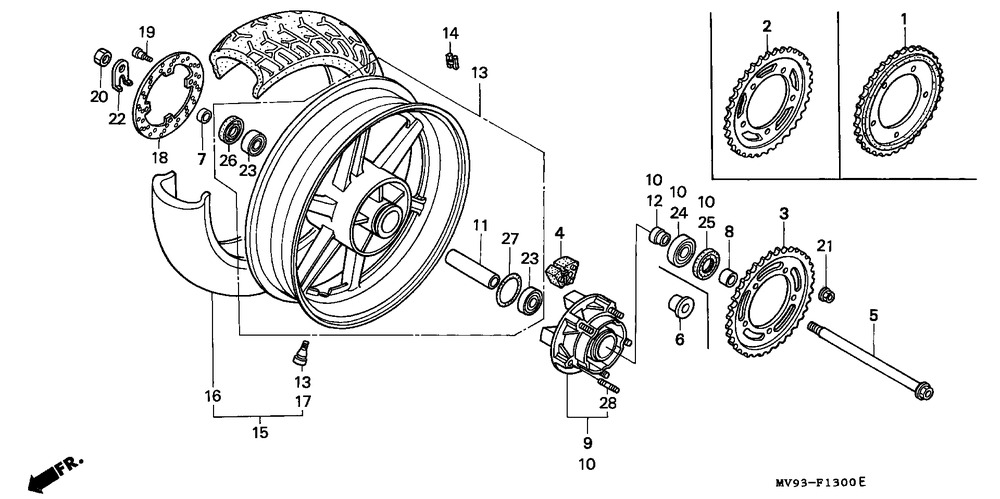

2
41201-MAL-600
SPROCKET, FINAL DRIVEN (43T)
1620:-
4
41241-MV9-000
DAMPER, RR. WHEEL, åtgår 5st
190:-
5
42301-MV9-000
AXLE, RR. WHEEL
1075:-
6
42311-MAL-601
COLLAR, L. RR. WHEEL SIDE
340:-
7
42312-MBT-D10
COLLAR, RR. BRAKE SIDE
310:-
10
FLANGE SUB ASSY., RR. DRIVEN
*
11
42620-KV3-830
COLLAR A, RR. WHEEL DISTANCE
270:-
12
42625-MV4-000
COLLAR B, RR. WHEEL DISTANCE
290:-
13
WHEEL SUB ASSY., RR.
*
14
42704-MCF-D60
WEIGHT, BALANCE (10G)
200:-
14
42705-MCF-D60
WEIGHT, BALANCE (20G)
200:-
14
42706-MCF-D60
WEIGHT, BALANCE (30G)
195:-
16
42711-MAL-671
TIRE, RR. (BS) (160/60ZR17)
*
17
42753-KBS-901
VALVE, RIM (BRIDGESTONE)
170:-
18
43251-MEE-000
DISK, RR. BRAKE
2552:-
19
90105-MV9003
BOLT, DISK, 8X24 (TSUKIBOSHI), åtgår 4st
110:-
20
90305-KA4003
NUT, AXLE, 18MM
90:-
21
90306-KF0003
NUT, FLANGE, 12MM, åtgår 5st
80:-
22
90559-MV9000
WASHER, RR. AXLE
100:-
23
91052-MAE004
BEARING, RADIAL BALL, 6204UU, åtgår 2st
360:-
24
91073-MV4782
BEARING, RADIAL BALL, 62/22
360:-
25
91252-MAE003
DUST SEAL, 30X50X7.5
285:-
26
91253-MAE003
DUST SEAL, 30X47X7.5
190:-
27
91304-KT8003
O-RING, 61X2
55:-
28
92918-120280E
BOLT, STUD, 12X28, åtgår 5st
60:-
* Kontakta kundtjänst för prisuppgift: 018-15 60 00
