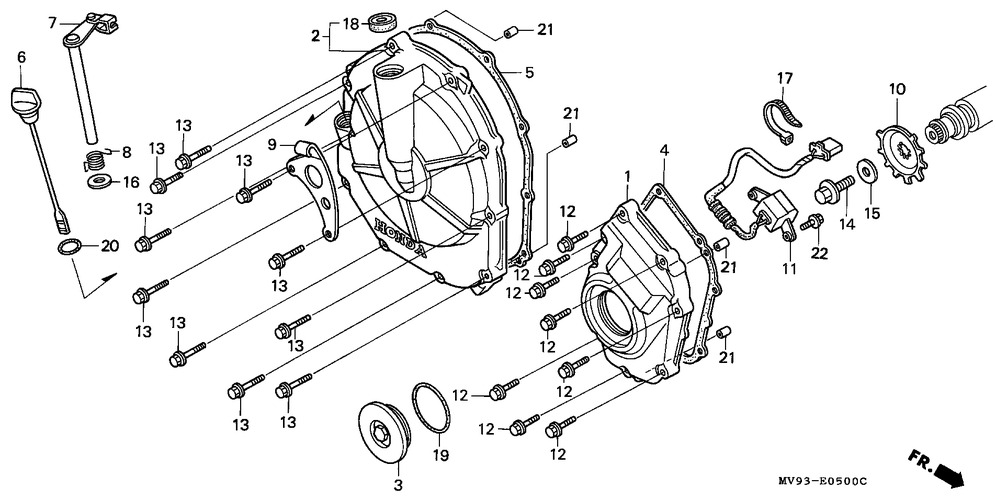

1
11311-MER-D00
COVER, PULSER
3061:-
2
11330-MV9-670
COVER COMP., CLUTCH
2938:-
3
11332-MM5-000
CAP, 45MM
290:-
4
11391-MV9-670
GASKET, PULSER COVER
175:-
5
11393-MV9-670
GASKET, CLUTCH COVER
335:-
6
15650-MAL-600
GAUGE, OIL LEVEL
*
7
22810-MV9-670
LEVER COMP., CLUTCH
805:-
8
22815-MV9-670
SPRING, CLUTCH LEVER
55:-
9
22821-MV9-670
RECEIVER, CLUTCH CABLE
*
10
30291-MV9-671
ROTOR, PULSE
280:-
11
30300-MV9-671
IGNITION PULSE GENERATOR ASSY.
*
12
90004-GHB680
BOLT, FLANGE, 6X28 (NSHF), åtgår 8st
40:-
13
90004-GHB680
BOLT, FLANGE, 6X28, åtgår 10st
40:-
14
90013-430000
BOLT, SPECIAL, 10X25
245:-
15
90405-KT7000
WASHER, 10.5X27
85:-
16
90525-GC4700
WASHER, BRAKE ARM
30:-
17
90650-KV6003
BAND, WIRE, 95MM
55:-
18
91204-KK0003
OIL SEAL, 12X18X5 (ARAI)
90:-
19
91301-ML7003
O-RING, 48.1X3.6 (ARAI)
80:-
20
91302-KE8003
O-RING, 18X3 (ARAI)
55:-
21
94301-08140
DOWEL PIN, 8X14, åtgår 4st
25:-
22
95701-0601400
BOLT, FLANGE, 6X14, åtgår 2st
15:-
* Kontakta kundtjänst för prisuppgift: 018-15 60 00
