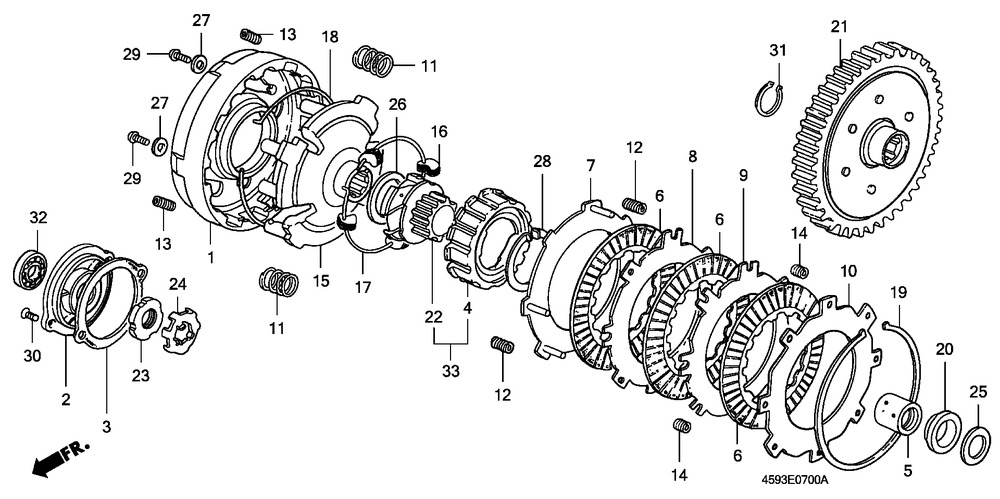

1
22101-943-010
OUTER, CLUTCH
*
2
22111-028-010
COVER, CLUTCH OUTER
95:-
3
22112-121-631
GASKET, CLUTCH OUTER COVER
35:-
4
22121-096-702
CENTER, CLUTCH
*
5
22131-943-000
GUIDE, CLUTCH CENTER
*
6
22201-121-631
DISK, CLUTCH FRICTION, åtgår 3st
220:-
7
22311-096-000
PLATE A, CLUTCH
160:-
8
22321-046-020
PLATE B, CLUTCH
85:-
9
22331-046-000
PLATE C, CLUTCH
80:-
10
22341-943-000
PLATE D, CLUTCH
*
12
22411-053-030
SPRING, CLUTCH FREE, åtgår 4st
40:-
13
22421-028-000
SPRING, CLUTCH DAMPER, åtgår 4st
20:-
14
22431-046-010
SPRING, CLUTCH SUB FREE, åtgår 2st
20:-
15
22511-459-010
PLATE, DRIVE
365:-
16
22531-033-020
WEIGHT, CLUTCH
*
17
22535-033-000
RING, CLUTCH WEIGHT CENTER
50:-
18
22536-033-000
RING, CLUTCH WEIGHT STOPPER
50:-
19
22901-102-700
SET RING, 102.5MM
25:-
20
22911-943-000
COLLAR, 20MM
*
21
23110-028-000
GEAR, PRIMARY DRIVEN (67T)
1035:-
22
23111-096-020
GEAR, DRIVE (18T)
*
23
90231-028000
NUT, LOCK, 16MM
65:-
24
90431-028010
WASHER, LOCK, 16MM
30:-
25
90432-121000
WASHER, LOCK
45:-
26
90452-459000
WASHER, THRUST, 36MM
*
27
90483-178000
WASHER, STOPPER, 14MM, åtgår 4st
40:-
28
90603-046010
CIRCLIP, 38MM
*
29
93500-050080A
SCREW, PAN, 5X8, åtgår 4st
10:-
30
93600-050120A
SCREW, FLAT, 5X12, åtgår 2st
5:-
31
94510-20000
CIRCLIP, EXTERNAL, 20MM
15:-
32
96100-6000000
BEARING, RADIAL BALL, 6000
180:-
* Kontakta kundtjänst för prisuppgift: 018-15 60 00
