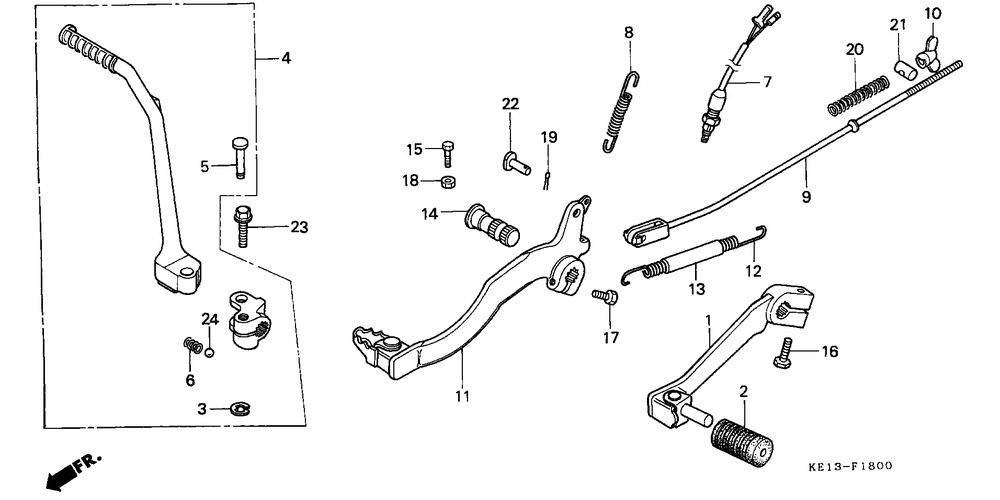

1
24700-KE1-000
PEDAL COMP., CHANGE
*
2
24781-KE1-000
RUBBER, CHANGE PEDAL
60:-
3
28293-124-000
CLIP, KICK STARTER ARM
30:-
4
28300-KJ1-000
ARM ASSY., KICK STARTER
*
5
28321-427-770
PIN, KICK STARTER
65:-
6
28333-124-000
SPRING, KICK STARTER STOPPER
30:-
7
35350-KE1-020
SWITCH ASSY., RR. STOP
*
7
35350-KE1-505
SWITCH ASSY., RR. STOP
*
8
35357-KB7-910
SPRING, STOP SWITCH
*
8
35357-KE1-000
SPRING, STOP SWITCH
70:-
9
43451-KJ1-700
ROD, RR. BRAKE
*
10
43459-434-000
NUT, BRAKE ADJUSTING
160:-
11
46500-KJ1-700
PEDAL ASSY., BRAKE
*
12
46514-KE1-000
SPRING, BRAKE PEDAL
*
13
95005-1200130M
TUBE, BRAKE PEDAL SPRING
290:-
14
46515-KE1-000
SHAFT, RR. BRAKE
*
15
92101-060160A
BOLT, HEX., 6X16
10:-
16
92101-060200A
BOLT, HEX., 6X20
20:-
17
92101-080280A
BOLT, HEX., 8X28
35:-
18
94002-060000S
NUT, HEX., 6MM
1306:-
19
94201-16150
PIN, SPLIT, 1.6X15
5:-
20
95014-73100
SPRING A, BRAKE ROD
20:-
21
95015-32001
JOINT B, BRAKE ARM
20:-
22
95015-52000
PIN B, BRAKE ROD JOINT
50:-
23
95701-0803208
BOLT, FLANGE, 8X32
40:-
24
96211-08000
BALL, STEEL, #8 (1/4)
10:-
