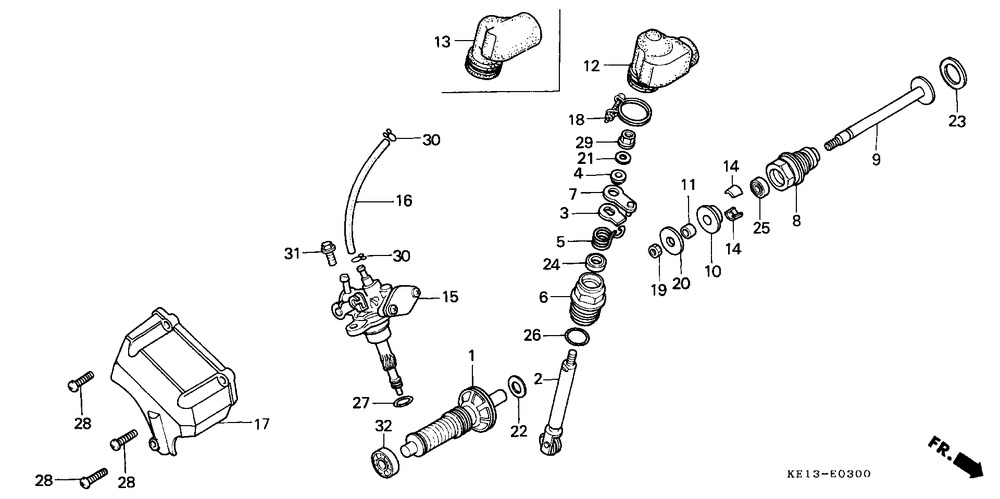

1
14200-KE1-000
SHAFT COMP., HERP DRIVE
893:-
2
14230-KE1-000
SPINDLE COMP., HERP
*
3
14233-KE1-000
PLATE, HERP ARM GUIDE
*
4
14234-KE1-000
COLLAR, HERP ARM
*
5
14235-KE1-000
SPRING, HERP ARM SETTING
60:-
6
14236-KE1-000
GUIDE, HERP SPINDLE
*
7
14240-KE1-000
ARM COMP., HERP
80:-
8
14251-KE1-000
GUIDE, VALVE
*
9
14252-KE1-000
VALVE, HERP
*
10
14253-KE1-000
RETAINER, VALVE
95:-
11
14254-KE1-000
COLLAR
45:-
12
14256-KE1-000
COVER, HERP VALVE
*
14
14781-107-003
COTTER, VALVE (SANKO), åtgår 2st
35:-
15
15100-KE1-013
PUMP ASSY., OIL
*
15
15100-KE1-013
PUMP ASSY., OIL
*
16
15525-KE1-010
TUBE, OIL PASS
*
17
15531-KE1-000
COVER COMP., OIL PUMP
*
18
55104-166-000
CLIP, OIL TUBE
60:-
19
90206-001000
NUT, TAPPET ADJUSTING
30:-
20
90403-KE1000
WASHER, THRUST, 5.5MM
10:-
22
90460-KJ1000
WASHER, THRUST, 10.2MM
*
23
90462-KE1000
WASHER, SEALING, 20X25
*
24
91259-VM0000
OIL SEAL, 10X16X4.5
75:-
25
91208-KE1003
OIL SEAL, 5.5X11X4
29:-
26
91256-383721
O-RING, 17.8X2.4 (SHOWA)
40:-
27
91305-KE1000
O-RING, 19.4X2.3
50:-
28
93500-050160A
SCREW, PAN, 5X16, åtgår 3st
5:-
29
94050-06000
NUT, FLANGE, 6MM
15:-
30
95002-02650
CLIP, TUBE (B6.5), åtgår 2st
10:-
31
96001-0601800
BOLT, FLANGE, 6X18
30:-
32
96100-6000000
BEARING, RADIAL BALL, 6000
180:-
* Kontakta kundtjänst för prisuppgift: 018-15 60 00
