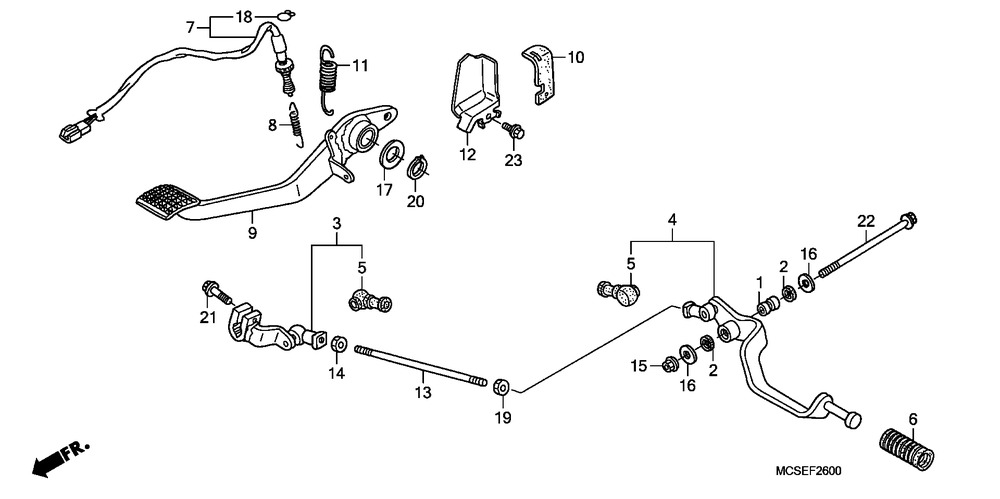

1
24705-MK3-000
COLLAR, GEAR CHANGE PEDAL PIVOT
100:-
2
24706-MK3-770
RUBBER, DUST SEAL, åtgår 2st
70:-
3
24710-MCS-G00
ARM COMP., GEAR CHANGE
810:-
4
24720-MCS-G00
PEDAL ASSY., GEAR CHANGE
1695:-
5
24724-MBW-D21
COVER, DUST, åtgår 2st
150:-
6
24781-KR3-770
RUBBER, GEAR CHANGE PEDAL
65:-
7
35350-MCS-G00
SWITCH ASSY., RR. STOP
330:-
8
35357-KR3-670
SPRING, STOP SWITCH
75:-
9
46500-MCS-G00
PEDAL COMP., RR. BRAKE
1881:-
10
46506-MCS-G00
RUBBER, RR. BRAKE GUARD
280:-
11
46511-MBW-000
SPRING, BRAKE PEDAL
110:-
12
50618-MCS-G01
COVER, RR. STOP SWITCH
460:-
13
90065-MCSG00
BOLT, TIE ROD
95:-
14
90201-700000
NUT, GOVERNOR ARM FIXING (LEFT HAND THREAD)
10:-
15
90301-GCTJ50
NUT, FLANGE, 8MM
35:-
16
90514-921000
WASHER, 8MM, åtgår 2st
30:-
17
90557-230000
WASHER, 15.2X25
50:-
18
90601-KAF003
CLIP, SWITCH COVER
30:-
19
94002-060200S
NUT, HEX., 6MM
1361:-
20
94511-15000
CIRCLIP, EXTERNAL, 15MM
10:-
21
95701-0602000
BOLT, FLANGE, 6X20
25:-
22
95701-0811008
BOLT, FLANGE, 8X110
60:-
23
96001-0601200
BOLT, FLANGE, 6X12
30:-
