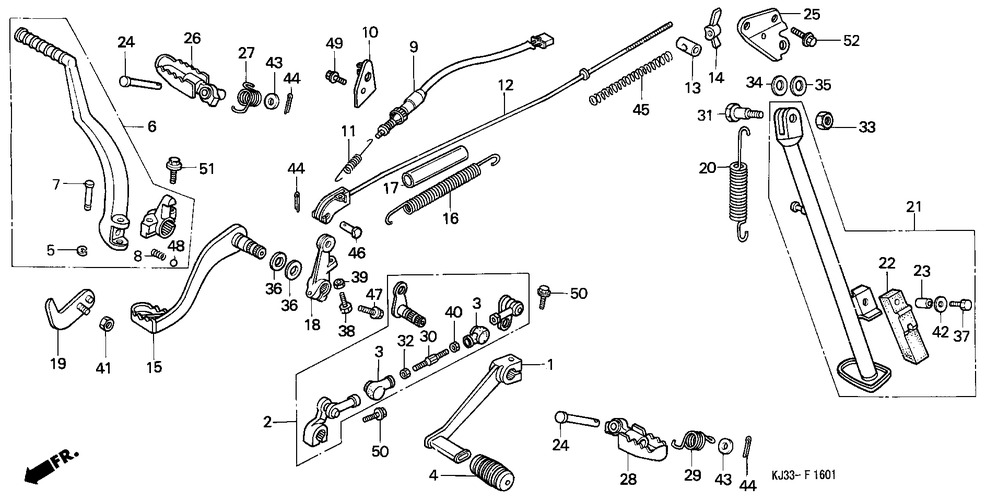

1
24700-KJ3-000
PEDAL, GEAR CHANGE
*
2
24720-KJ2-010
LINK ASSY., GEAR CHANGE
*
3
24724-422-000
COVER, DUST, åtgår 2st
105:-
4
24781-449-000
RUBBER, GEAR CHANGE
55:-
5
28293-124-000
CLIP, KICK STARTER ARM
30:-
6
28300-KJ2-000
ARM ASSY., KICK STARTER
2100:-
7
28321-427-770
PIN, KICK STARTER
65:-
8
28333-124-000
SPRING, KICK STARTER STOPPER
30:-
9
35350-KJ2-671
SWITCH ASSY., RR. STOP
*
10
35351-KJ2-670ZB
STAY, STOP SWITCH *PB109*
*
11
35357-KR3-670
SPRING, STOP SWITCH
75:-
12
43451-KJ2-000
ROD COMP., RR. BRAKE
*
13
43454-KA4-700
JOINT, BRAKE ARM
120:-
14
43459-434-000
NUT, BRAKE ADJUSTING
160:-
15
46500-KJ2-670ZA
PEDAL COMP., RR. BRAKE *NH1*
*
16
46514-KJ2-000
SPRING, BRAKE PEDAL
*
17
95005-1200130M
TUBE, BRAKE PEDAL SPRING
290:-
18
46516-KJ2-010
MIDDLE ARM, RR. BRAKE
*
19
50131-KJ2-010
STOPPER, KICK ARM
*
20
50535-429-000
SPRING, SIDE STAND
90:-
21
50540-KJ3-700ZA
BAR ASSY., SIDE STAND *PB109*
*
22
50548-324-760
RUBBER, STAND
120:-
23
50549-356-700
COLLAR, STAND RUBBER SETTING
40:-
24
50603-033-010
PIN, STEP BAR JOINT, åtgår 2st
40:-
25
50611-KJ2-670ZB
BRACKET, SIDE STAND *PB109*
*
26
50616-428-000
STEP COMP., R.
495:-
27
50617-MM9-000
SPRING, R. STEP RETURN
75:-
28
50642-KJ2-000
STEP COMP., L.
*
29
50644-MM9-000
SPRING, L. STEP RETURN
75:-
30
90065-KC1000
BOLT, TIE ROD
190:-
31
90108-KV6000
SCREW, SIDE STAND PIVOT
120:-
32
90201-KC1000
NUT, TIE ROD
*
33
90203-MF9710
NUT, SIDE STAND
70:-
34
90501-MF9710
WASHER, THRUST, 24X13
45:-
35
90502-MF9710
WASHER, THRUST, 24X10
45:-
36
91251-444000
DUST SEAL, 15X20X2.5, åtgår 2st
80:-
37
92101-060280A
BOLT, HEX., 6X28
40:-
38
92101-060200A
BOLT, HEX., 6X20
20:-
39
94002-060000S
NUT, HEX., 6MM
15:-
40
94002-060700S
NUT, HEX., 6MM
15:-
41
94050-08000
NUT, FLANGE, 8MM
20:-
42
94101-06000
WASHER, PLAIN, 6MM
10:-
43
94102-08000
WASHER, PLAIN, 8MM, åtgår 2st
10:-
44
94201-16150
PIN, SPLIT, 1.6X15, åtgår 3st
5:-
45
95014-73100
SPRING A, BRAKE ROD
20:-
46
95015-52000
PIN B, BRAKE ROD JOINT
50:-
47
95701-0602200
BOLT, FLANGE, 6X22
30:-
48
96211-08000
BALL, STEEL, #8 (1/4)
10:-
49
96300-0601000
BOLT, FLANGE, 6X10
30:-
50
96300-0602007
BOLT, FLANGE, 6X20, åtgår 2st
35:-
51
96300-0802500
BOLT, FLANGE, 8X25
30:-
52
96300-0803200
BOLT, FLANGE, 8X32, åtgår 2st
30:-
* Kontakta kundtjänst för prisuppgift: 018-15 60 00
