1
16010-HP1-671
GASKET SET
890:-
2
16012-HP1-672
NEEDLE SET, JET
690:-
3
16013-HN8-003
FLOAT SET
630:-
4
16014-HP1-671
TOP SET
*
5
16015-HP1-671
CHAMBER SET, FLOAT
1780:-
6
16016-HP1-671
SCREW SET
330:-
7
16018-HP1-671
ARM SET, LINK
1670:-
8
16019-HP1-671
VALVE SET, HOT STARTER
670:-
9
16021-HP1-671
DIAPHRAGM SET, PUMP
1640:-
10
16025-HP1-672
LEVER SET, STARTER
575:-
11
16028-HP1-671
SCREW SET
525:-
12
16031-HM3-L00
ARM SET, PUMP
1070:-
13
16038-HP1-671
PLATE SET, STAY
140:-
14
16046-HP1-672
VALVE SET, STARTER
1080:-
15
16060-HP1-671
SENSOR SET, THROTTLE
2940:-
16
16070-HP1-671
HEATER ASSY.
*
17
16075-GHB-630
O-RING, 1.3X2.8, åtgår 2st
40:-
18
16075-GHB-640
O-RING, 1.3X4.3, åtgår 3st
55:-
19
16080-HC0-003
SCREW-WASHER
60:-
20
16096-HC0-003
NUT, HEX.
35:-
21
16100-HP1-673

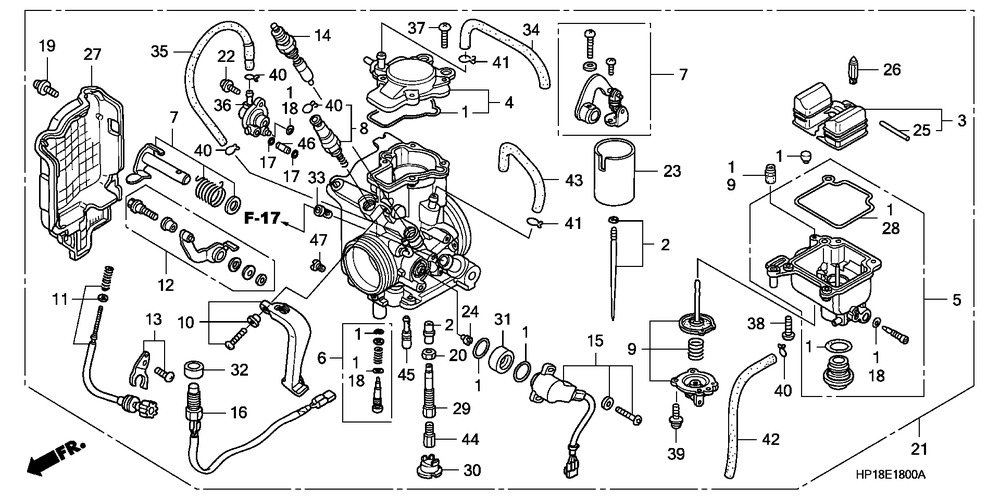

CARBURETOR ASSY. (QA16A A)
8825:-
22
16108-MW0-750
SCREW
45:-
23
16111-HP1-671
VALVE, THROTTLE
900:-
24
16145-MZ2-780
JOINT, CONNECTOR
250:-
25
16152-HN8-003
PIN, ARM
75:-
26
16155-HN7-003
VALVE COMP., FLOAT
465:-
27
16160-HP1-672
COVER, BODY
*
28
16163-MEA-671
GASKET, FLOAT CHAMBER
440:-
29
16165-HP1-671
HOLDER, NEEDLE JET
310:-
30
16168-HC4-003
HOLDER, JET
140:-
31
16172-HP1-671
COLLAR
*
32
16172-KEB-610
COLLAR, SETTING
60:-
33
16176-HP1-671
SCREEN, FUEL STRAINER
200:-
34
16198-HP1-671
TUBE
175:-
35
16199-HP1-671
TUBE COMP.
175:-
36
16510-MZ2-650
VALVE ASSY., AIR CUT
1895:-
37
93500-040120H
SCREW, PAN, 4X12, åtgår 4st
5:-
38
93500-040140H
SCREW, PAN, 4X14, åtgår 4st
15:-
39
93892-0401208
SCREW-WASHER, 4X12, åtgår 3st
15:-
40
95002-02079
CLIP, TUBE (B7), åtgår 4st
10:-
41
95002-02109
CLIP, TUBE (B10), åtgår 2st
15:-
42
95005-3540050
TUBE, 3.5X400 (95005-35001-50M)
*
43
95005-5014050
TUBE, 5X140 (95005-50001-50M)
*
44
99101-3571180
JET, MAIN, #118
205:-
45
99104-HP10480
JET, SLOW, #48
180:-
46
99108-MW01502
JET, SLOW AIR, #150
195:-
47
99112-HC40720
JET, BY-STARTER, #72
225:-
* Kontakta kundtjänst för prisuppgift: 018-15 60 00
