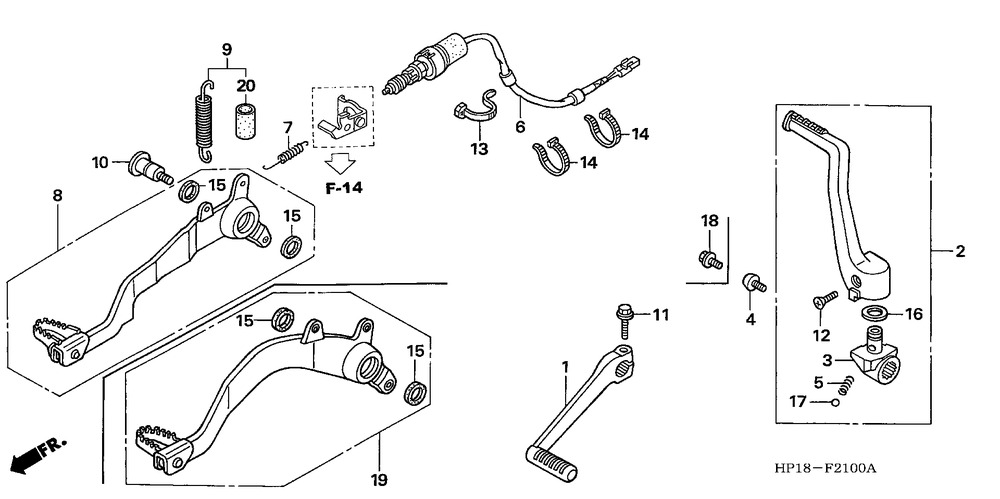

1
24700-HP1-600
PEDAL, GEAR CHANGE
1545:-
2
28300-HP1-000
ARM ASSY., KICK STARTER
2665:-
3
28302-HP1-000
JOINT, KICK ARM
980:-
4
28306-HP1-000
BOLT, KICK ARM
275:-
5
28333-124-000
SPRING, KICK STARTER STOPPER
30:-
6
35350-HP1-003
SWITCH ASSY., RR. STOP
*
7
35357-KR3-670
SPRING, STOP SWITCH
75:-
8
46510-HP1-000
PEDAL COMP., BRAKE
*
9
46513-HP1-000
SPRING ASSY., RR. BRAKE PEDAL
95:-
10
46513-MBN-670
SHAFT, BRAKE PIVOT
285:-
11
90004-GHB670
BOLT, FLANGE, 6X25 (NSHF)
40:-
12
90101-KCY760
SCREW, OVAL, 6X28
25:-
13
90650-KW3000
BAND, WIRE
55:-
14
90651-SA5701
BAND, HOSE, åtgår 2st
*
15
91251-444000
DUST SEAL, 15X20X2.5, åtgår 2st
80:-
16
91303-KA3732
DUST SEAL, 19X25X4.1 (NOK)
100:-
17
96211-08000
BALL, STEEL, #8 (1/4)
10:-
20
46515-KW3-000
TUBE, BRAKE PEDAL SPRING
70:-
* Kontakta kundtjänst för prisuppgift: 018-15 60 00
