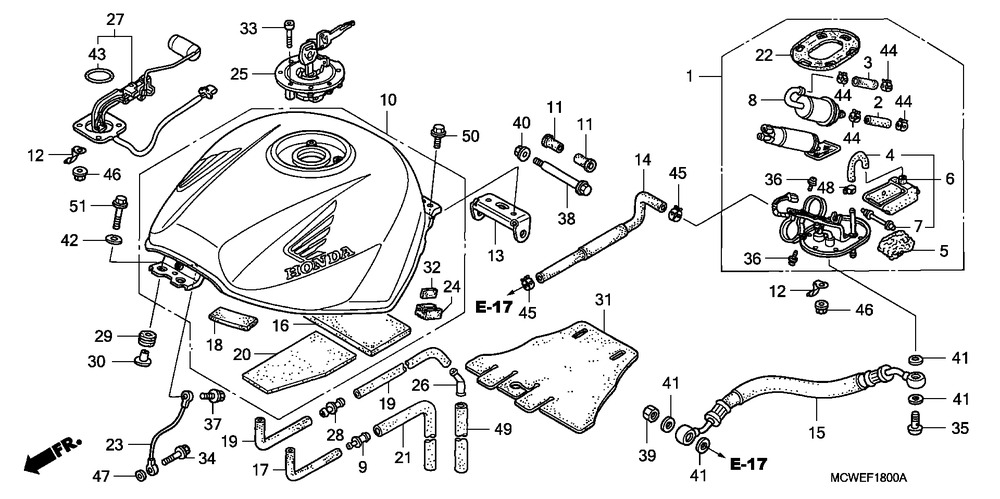

1
16700-MCW-D02
PUMP ASSY., FUEL
14255:-
2
16711-MBG-010
HOSE, PUMP
100:-
3
16712-MBG-010
HOSE B, FUEL PUMP
255:-
4
16713-MBG-010
TUBE, FUEL PUMP RETURN
65:-
5
16714-MBG-000
FILTER, FUEL RETURN
265:-
6
16716-MBG-305
RUBBER SET, FUEL PUMP UNIT
475:-
7
16717-MBG-000
STOPPER, FILTER
45:-
8
16900-MBG-013
FILTER COMP., FUEL
830:-
9
17359-419-670
JOINT, BREATHER TUBE
40:-
10
17500-MCW-H30ZE
TANK SET, FUEL (WL) *TYPE1*
10960:-
10
17500-MCW-H50ZA
TANK SET, FUEL (WL) *R101CU*
10960:-
11
17506-MB1-000
CUSHION, FUEL TANK PIVOT, åtgår 2st
45:-
12
17522-MCW-H00
CLAMPER A, TUBE, åtgår 2st
*
13
17524-MCW-D00
STAY, RR. FUEL TANK SETTING
210:-
14
17525-MCW-D01
HOSE, FUEL RETURN
295:-
15
17528-MCW-D01
HOSE COMP., FUEL FEED
2600:-
16
17542-MCW-D00
MAT B, FUEL TANK
300:-
17
17543-MBG-000
TUBE, DRAIN
350:-
18
17543-MCW-D00
MAT C, FUEL TANK
85:-
19
17544-MCW-H00
TUBE, BREATHER, åtgår 2st
*
20
17544-MEC-300
MAT D, FUEL TANK SILENCER
120:-
21
95005-8090050
TUBE, 8X900 (95005-80001-50M)
*
22
17574-MN5-000
PACKING, BASE
100:-
23
17575-MCW-D00
CABLE, FUEL TANK STOPPER
190:-
24
17611-ML7-000
CUSHION, FUEL TANK, åtgår 2st
115:-
25
17620-MAS-E03
CAP COMP., FUEL FILLER
3525:-
26
19103-ML7-000
JOINT, TUBE
95:-
27
37080-MCW-D00
FUEL UNIT SET
1855:-
28
38562-663-920
JOINT B, WASHER TUBE (MITSUBA)
*
29
61103-357-000
RUBBER, FR. FENDER MOUNTING, åtgår 2st
35:-
30
61104-422-000
COLLAR, SETTING, åtgår 2st
60:-
31
80115-MCW-D00
RUBBER, RR. HEAT GUARD
795:-
32
81214-MW0-300
RUBBER, PROTECTOR, åtgår 2st
65:-
33
90074-MT4000
BOLT, SOCKET, 4X21, åtgår 3st
70:-
34
90104-GF6000
BOLT, FLANGE, 6X20
80:-
35
90108-MBG000
BOLT, BANJO, 12MM
150:-
36
90110-MCH000
SCREW-WASHER, 4X10, åtgår 2st
15:-
37
90115-GCR000
BOLT, FLANGE, 6X14
65:-
38
90135-MCWD00
BOLT, TANK HINGE
95:-
39
90201-PD1000
NUT A, SEALING, 12MM
45:-
40
90301-473003
NUT, U, 6MM
55:-
41
90428-PD6003
WASHER, SEALING, 12MM, åtgår 4st
40:-
42
90525-428900
WASHER, PLAIN, 6MM, åtgår 2st
35:-
43
91305-MC7000
O-RING, 39.5X5
105:-
44
91405-PD1004
CLAMP, TUBE (D12), åtgår 4st
*
45
91406-MCWD01
CLAMP, FUEL HOSE (D10.5), åtgår 2st
50:-
46
94050-06080
NUT, FLANGE, 6MM, åtgår 10st
10:-
47
94101-06000
WASHER, PLAIN, 6MM
10:-
48
95002-4085004
CLAMP, TUBE (D8.5)
35:-
49
17550-MCW-D00
TUBE, BREATHER
200:-
50
95701-0601400
BOLT, FLANGE, 6X14, åtgår 2st
15:-
51
96001-0602807
BOLT, FLANGE, 6X28, åtgår 2st
25:-
* Kontakta kundtjänst för prisuppgift: 018-15 60 00
