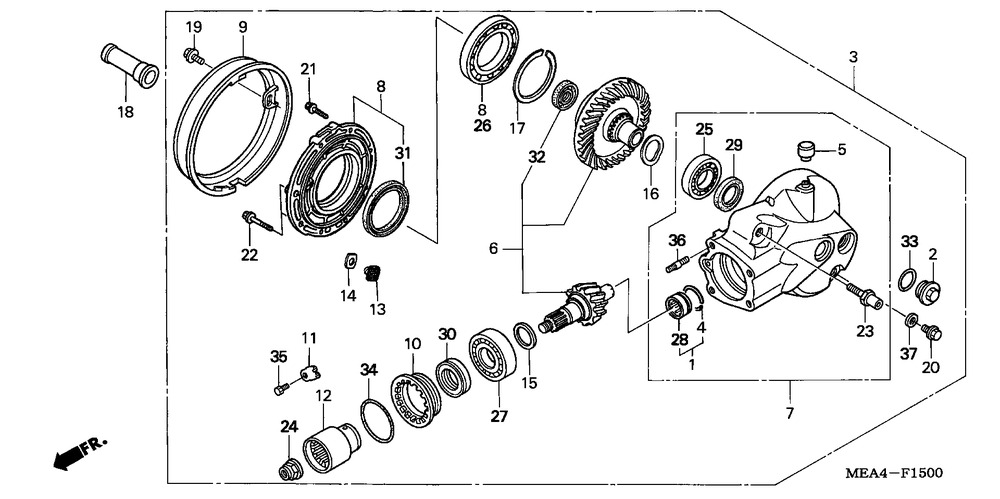

1
06910-MAM-A00
BEARING SET, NEEDLE
785:-
2
12361-035-000
CAP, TAPPET ADJUSTING HOLE
65:-
3
41300-MEA-671
GEAR ASSY., FINAL
*
4
41305-MB4-770
RING, STOPPER
85:-
5
41306-MB0-020
CAP, BREATHER
190:-
6
41310-MEA-670
GEAR SET, FINAL
*
7
41311-MCH-010
CASE SUB ASSY., FINAL GEAR
16011:-
8
41320-MCH-000
COVER SUB ASSY., FINAL GEAR
2036:-
9
41324-MCH-000
PLATE, DUST GUARD
1595:-
10
41331-MN5-000
RETAINER, BEARING
1736:-
11
41332-415-000
LOCK A, BEARING ADJUSTING (SINGLE TAB)
30:-
11
41333-415-000
LOCK B, BEARING ADJUSTING (DOUBLE TABS)
30:-
12
41410-ME9-770
JOINT, PINION
1822:-
13
41436-MB0-310
PIN, RING GEAR STOPPER
325:-
14
41438-MB0-310
SHIM B, STOPPER PIN (0.15)
70:-
14
41437-MB0-310
SHIM A, STOPPER PIN (0.10)
70:-
15
41456-MG9-000
SHIM G, PINION GEAR (1.68)
120:-
15
41455-MG9-000
SHIM F, PINION GEAR (1.62)
120:-
15
41454-MG9-000
SHIM E, PINION GEAR (1.56)
120:-
15
41453-MG9-000
SHIM D, PINION GEAR (1.50)
120:-
15
41452-MG9-000
SHIM C, PINION GEAR (1.44)
120:-
15
41451-MG9-000
SHIM B, PINION GEAR (1.38)
120:-
15
41450-MG9-000
SHIM A, PINION GEAR (1.32)
120:-
16
41510-MB0-003
WASHER, SPECIAL, 35X40
155:-
17
41538-MG9-000
SPACER I, RING GEAR (2.30)
180:-
17
41537-MG9-000
SPACER H, RING GEAR (2.24)
180:-
17
41536-MG9-000
SPACER G, RING GEAR (2.18)
180:-
17
41535-MG9-000
SPACER F, RING GEAR (2.12)
180:-
17
41534-MG9-000
SPACER E, RING GEAR (2.06)
215:-
17
41533-MG9-000
SPACER D, RING GEAR (2.00)
180:-
17
41532-MG9-000
SPACER C, RING GEAR (1.94)
180:-
17
41531-MG9-000
SPACER B, RING GEAR (1.88)
180:-
17
41530-MG9-000
SPACER A, RING GEAR (1.82)
180:-
18
42625-MCH-000
COLLAR B, RR. AXLE DISTANCE
595:-
19
90013-883000
BOLT, FLANGE, 6X12 (CT200)
*
20
90118-MCH000
BOLT, PLUG, 14MM
190:-
21
90133-MB0000
BOLT, FLANGE, 8X27, åtgår 6st
195:-
22
90134-HA0000
BOLT, FLANGE, 10X35, åtgår 2st
185:-
23
90157-MCH000
BOLT, RR. CUSHION
450:-
24
90381-MT3000
NUT, HEX., 16MM
105:-
25
91052-MN5003
BEARING, RADIAL BALL, 35X62X18 (TOYO)
635:-
26
91053-MCH003
BEARING, RADIAL BALL, 65X100X14
930:-
27
91061-MT3003
BEARING, RADIAL BALL (QJ3/28V1)
1893:-
28
91062-MG9013
BEARING, NEEDLE, 20X35X18
445:-
29
91261-MCH003
OIL SEAL, 35X54X8
155:-
30
91262-MCH003
OIL SEAL, 39X56X7
155:-
31
91265-MCH003
OIL SEAL, 65X85X7
180:-
32
91268-463003
DUST SEAL, 26X40X5
115:-
33
91302-001020
O-RING, 30.8MM
51:-
34
91359-MG9003
O-RING, 64.5X3.5 (ARAI)
110:-
35
92101-060120A
BOLT, HEX., 6X12
20:-
36
92916-100280E
BOLT, STUD, 2, 10X28, åtgår 4st
50:-
37
94109-14000
WASHER, DRAIN PLUG, 14MM
15:-
* Kontakta kundtjänst för prisuppgift: 018-15 60 00
