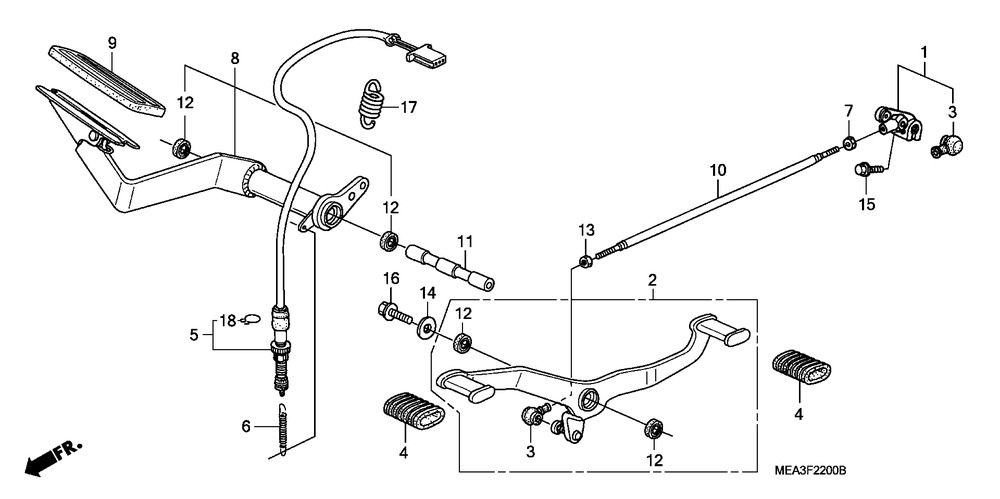

1
24702-MEA-740
ARM COMP., CHANGE
*
2
24710-MEA-740
PEDAL COMP., CHANGE
2402:-
3
24724-MBW-D21
COVER, DUST, åtgår 2st
149:-
4
24781-371-000
RUBBER, CHANGE PEDAL, åtgår 2st
71:-
5
35350-MEA-671
SWITCH ASSY., RR. STOP
545:-
6
35357-KY2-700
SPRING, STOP SWITCH
75:-
7
45423-KA4-700
NUT, HEX., 6MM (LEFT HAND THREAD)
48:-
8
46510-MEA-671
PEDAL COMP., RR. BRAKE
3400:-
9
46545-SA5-980
COVER, BRAKE PEDAL
216:-
10
90065-MEA670
BOLT, TIE ROD
684:-
11
90115-MEA670
SHAFT, BRAKE PIVOT
161:-
12
91251-MT4003
DUST SEAL, 15X20X3, åtgår 4st
80:-
13
94002-060200S
NUT, HEX., 6MM
14:-
14
94103-08000
WASHER, PLAIN, 8MM
7:-
15
95701-0602000
BOLT, FLANGE, 6X20
27:-
16
95701-0802000
BOLT, FLANGE, 8X20
21:-
17
46514-KZ4-J00
SPRING, BRAKE PEDAL
63:-
18
90601-KAF003
CLIP, SWITCH COVER
29:-
* Kontakta kundtjänst för prisuppgift: 018-15 60 00
