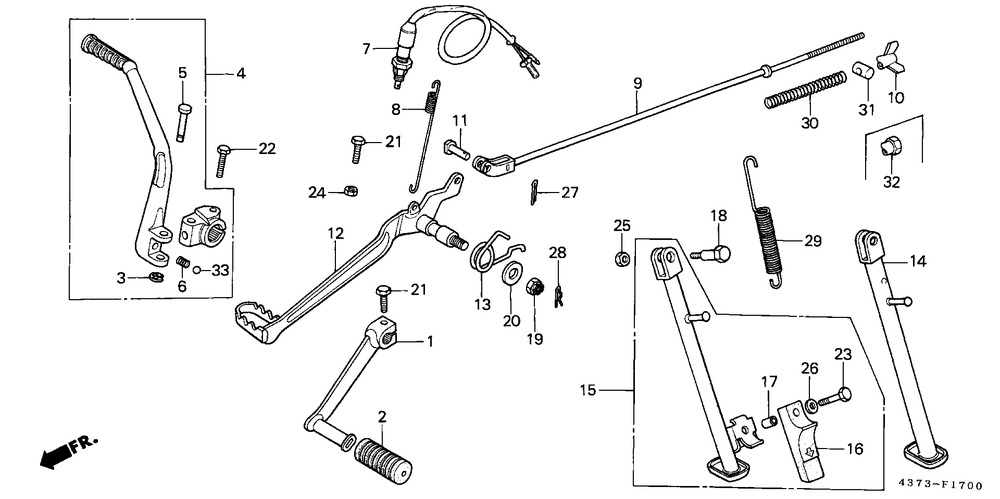

1
24700-437-000
PEDAL, GEAR CHANGE
828:-
2
24781-419-000
RUBBER, GEAR CHANGE PEDAL
53:-
3
28293-124-000
CLIP, KICK STARTER ARM
31:-
4
28300-427-770
ARM ASSY., KICK STARTER
2243:-
5
28321-427-770
PIN, KICK STARTER
75:-
6
28333-124-000
SPRING, KICK STARTER STOPPER
31:-
7
35350-437-010
SWITCH ASSY., RR. STOP
295:-
8
35357-361-010
SPRING, STOP SWITCH
50:-
9
43451-437-000
ROD, RR. BRAKE
265:-
10
43459-434-000
NUT, BRAKE ADJUSTING
182:-
11
43471-437-000
PIN, BRAKE ROD JOINT
80:-
12
46500-437-010
PEDAL COMP., BRAKE
1023:-
13
46514-437-000
SPRING, BRAKE PEDAL
117:-
14
50530-437-000
BAR, SIDE STAND
800:-
18
90108-283000
SCREW, SIDE STAND PIVOT
112:-
19
90351-268000
NUT, SELF-LOCK, 10MM
35:-
20
90501-579020
WASHER, EX. MANIFOLD
*
21
92101-060200A
BOLT, HEX., 6X20, åtgår 2st
19:-
22
92101-060220A
BOLT, HEX., 6X22
20:-
24
94002-060000S
NUT, HEX., 6MM
1306:-
25
94002-100000S
NUT, HEX., 10MM
1141:-
27
94201-20150
PIN, SPLIT, 2.0X15
15:-
28
94251-10000
PIN, LOCK, 10MM
15:-
29
95014-72402
SPRING D, SIDE STAND
62:-
30
95014-73100
SPRING A, BRAKE ROD
18:-
31
95015-32001
JOINT B, BRAKE ARM
18:-
33
96211-08000
BALL, STEEL, #8 (1/4)
15:-
* Kontakta kundtjänst för prisuppgift: 018-15 60 00
