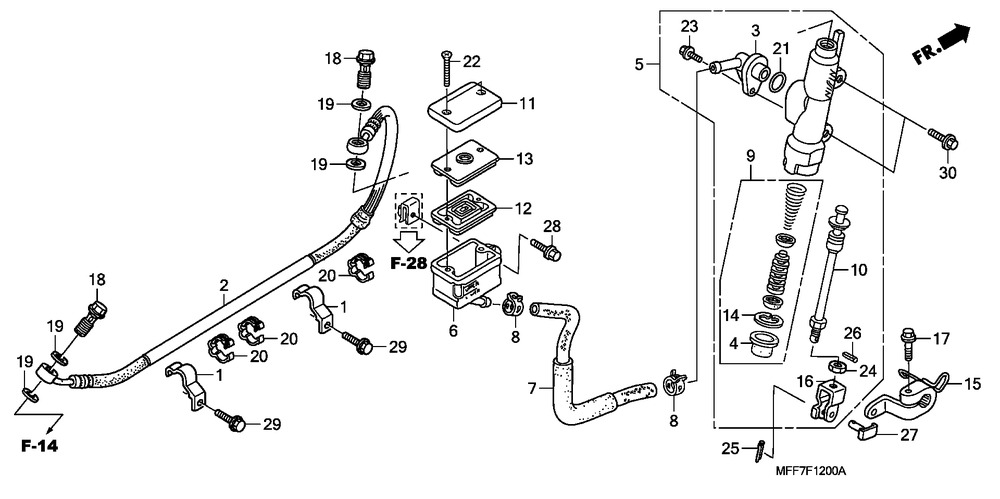

1
43159-MFF-D00
GUIDE A, RR. BRAKE HOSE, åtgår 2st
256:-
2
43310-MFF-D01
HOSE COMP., RR. BRAKE
*
3
43503-MS8-006
CONNECTOR
201:-
4
43504-MB2-006
BOOT COMP.
111:-
5
43510-MCB-772
CYLINDER SUB ASSY., RR. MASTER
4467:-
6
43511-KT8-006
CUP COMP., OIL
542:-
7
43512-MCB-611
HOSE, RR. MASTER CYLINDER
787:-
8
43514-445-771
CLAMP, MASTER CYLINDER OIL HOSE, åtgår 2st
162:-
9
43520-MB2-315
PISTON SET, MASTER CYLINDER (NISSIN)
1178:-
10
43530-MS6-901
ROD COMP., PUSH
501:-
11
45513-KK1-771
CAP, MASTER CYLINDER
456:-
12
45520-MG7-006
DIAPHRAGM
202:-
13
45521-HA2-006
PLATE, DIAPHRAGM
166:-
14
46182-MEL-D21
CIRCLIP
31:-
15
46502-MFF-D00
MIDDLE ARM, RR. BRAKE
607:-
16
46504-KV6-702
JOINT, BRAKE ROD
83:-
17
90104-MB6000
BOLT, FLANGE, 8X28
108:-
18
90145-MS9612
BOLT, OIL, 10X22, åtgår 2st
153:-
19
90545-300000
WASHER, OIL BOLT, åtgår 4st
47:-
20
90690-MCA003
CLIP, CABLE, 14MM, åtgår 3st
48:-
21
91212-422006
O-RING, 14.8X2.4
81:-
22
93600-040401G
SCREW, FLAT, 4X40, åtgår 2st
1306:-
23
93893-0401207
SCREW-WASHER, 4X12
15:-
24
94002-080000S
NUT, HEX., 8MM
921:-
25
94201-20120
PIN, SPLIT, 2.0X12
15:-
26
94305-20102
PIN, SPRING, 2X10
15:-
27
95015-54000
PIN D, JOINT
32:-
28
95701-0601808
BOLT, FLANGE, 6X18
31:-
29
96001-0601600
BOLT, FLANGE, 6X16, åtgår 2st
21:-
30
96300-0601600
BOLT, FLANGE, 6X16, åtgår 2st
22:-
* Kontakta kundtjänst för prisuppgift: 018-15 60 00
