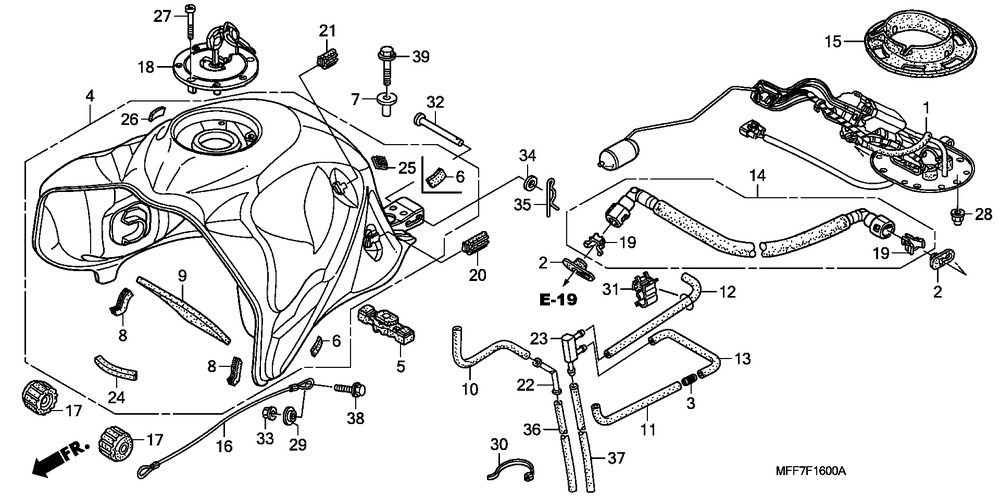

1
16700-MFF-D01
PUMP ASSY., FUEL
12658:-
2
16719-MEW-920
DAMPER, CONNECTOR, åtgår 2st
75:-
3
17359-419-670
JOINT, BREATHER TUBE
40:-
4
17502-MFF-D00ZA
TANK SET, FUEL *NHA65P*
13000:-
5
17503-MCB-610
RUBBER, RR. TANK
80:-
6
17508-MN5-000
RUBBER, CUSHION, åtgår 2st
75:-
7
17526-MK5-000
COLLAR, FUEL TANK MOUNTING
95:-
8
17530-MFF-D00
RUBBER, FUEL TANK FR., åtgår 2st
40:-
9
17536-MFF-D00
SILENCER SEAT, FUEL TANK
150:-
10
17543-MFF-D00
TUBE, DRAIN
115:-
11
17544-MFF-D00
TUBE A, BREATHER
85:-
12
17545-MFF-D00
TUBE B, BREATHER
240:-
13
17546-MFF-D00
TUBE C, BREATHER
105:-
14
17570-MFF-D00
HOSE COMP., FUEL FEED
1217:-
15
17574-MFF-D00
PACKING, BASE
525:-
16
17575-MFF-D01
CABLE, FUEL TANK STOPPER
195:-
17
17611-MAN-600
CUSHION, FUEL TANK FR., åtgår 2st
65:-
18
17620-MAS-E03
CAP COMP., FUEL FILLER
3522:-
19
17711-S0X-931
RETAINER (BLUE GREEN) (TOKAI), åtgår 2st
90:-
20
18293-MFF-D00
RUBBER, SEAT STAY, åtgår 2st
45:-
21
18293-MN0-000
RUBBER, PROTECTOR, åtgår 2st
40:-
22
19103-ML7-000
JOINT, TUBE
95:-
23
19525-MT8-000
JOINT, THREE WAY (D)
280:-
24
64122-MAT-300
RUBBER, COWL STAY UPPER
55:-
25
64243-MEW-920
FASTENER B, DUAL LOCK, 20X20, åtgår 2st
45:-
26
80126-GAG-750
RUBBER, SPACER, åtgår 2st
40:-
27
90074-MT4000
BOLT, SOCKET, 4X21, åtgår 3st
70:-
28
90201-MEJ770
NUT, FLANGE CAP, 6MM, åtgår 6st
55:-
29
90401-373770
WASHER, 6X20
100:-
30
90652-KT1771
BAND, WIRE (BLACK)
35:-
31
90690-GHB651
CLIP, CABLE, 15MM
35:-
32
90759-735610
PIN, ARM STOPPER
*
33
94050-06000
NUT, FLANGE, 6MM
15:-
34
94101-06000
WASHER, PLAIN, 6MM
10:-
35
94251-06000
PIN, LOCK, 6MM
15:-
36
95005-5560020
TUBE, 5.3X600 (95005-55001-20M)
*
37
95005-7550020S
TUBE, 7.3X480 (95005-75001-20M)
*
38
95701-0601200
BOLT, FLANGE, 6X12
20:-
39
95801-0803500
BOLT, FLANGE, 8X35
35:-
* Kontakta kundtjänst för prisuppgift: 018-15 60 00
