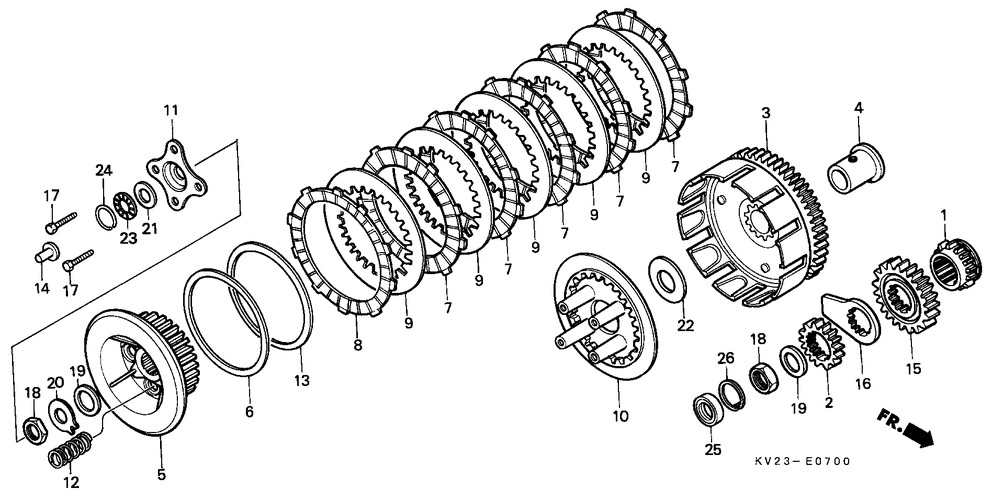

1
14312-KF0-000
SPROCKET, TIMING (19T)
615:-
2
15130-KV2-900
GEAR, OIL PUMP DRIVE (19T)
*
3
22100-KN5-671
OUTER COMP., CLUTCH
*
4
22116-KF0-000
GUIDE, CLUTCH OUTER
430:-
5
22120-KN5-670
CENTER COMP., CLUTCH (24T)
*
6
22125-435-000
SEAT, JUDDER SPRING
115:-
7
22201-MS6-620
DISK, CLUTCH FRICTION, åtgår 5st
280:-
8
22202-ML4-611
DISK, CLUTCH FRICTION
275:-
9
22321-KF0-770
PLATE, CLUTCH, åtgår 5st
185:-
10
22350-KW3-000
PLATE, CLUTCH PRESSURE
920:-
11
22361-KF0-000
PLATE, CLUTCH LIFTER
235:-
12
22401-KL3-670
SPRING, CLUTCH
*
13
22402-435-000
SPRING, JUDDER
530:-
14
22820-KF0-000
PIN, CLUTCH LIFTER
150:-
15
23121-KL3-670
GEAR, PRIMARY DRIVE (24T)
*
16
30220-KG0-013
ROTOR, PULSE GENERATOR
*
17
90001-KE2710
BOLT, HEX., 6X25, åtgår 4st
*
18
90235-KA4000
NUT, 18MM, åtgår 2st
105:-
19
90432-KE5000
WASHER, 18MM, åtgår 2st
55:-
20
90432-KN5670
WASHER, LOCK
*
21
90452-147006
WASHER, THRUST, 12MM(THOMPSON)
*
21
90452-147003
WASHER, THRUST, 12MM (TOYO)
45:-
22
90458-KE8000
WASHER, THRUST, 22X45X0.8
40:-
23
91001-147003
BEARING, NEEDLE, 12MM (NTN)
120:-
24
91012-KF0000
CLIP, NEEDLE THRUST BEARING, 12MM
55:-
25
91201-HM3A61
OIL SEAL, 14X22X5 (ARAI)
60:-
25
91201-HM3A61
OIL SEAL, 14X22X5 (NOK)
60:-
26
94520-24000
CIRCLIP, INTERNAL, 24MM
15:-
* Kontakta kundtjänst för prisuppgift: 018-15 60 00
