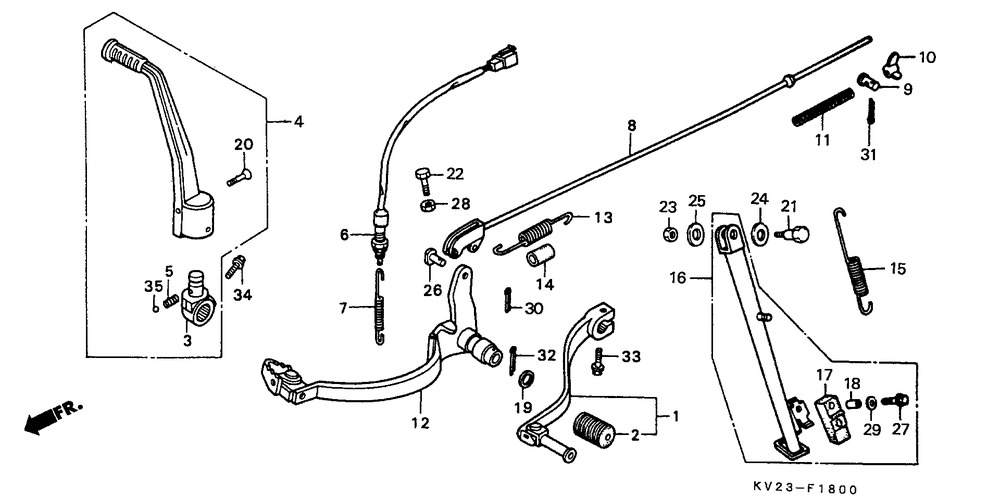

1
24700-KB7-940
PEDAL ASSY., CHANGE
*
2
24781-KE1-000
RUBBER, CHANGE PEDAL
60:-
3
28241-KB7-940
JOINT, KICK ARM
*
4
28300-KB7-980
ARM ASSY., KICK STARTER
*
5
28333-124-000
SPRING, KICK STARTER STOPPER
30:-
6
35350-KB7-971
SWITCH ASSY., RR. STOP
*
7
35357-KJ9-000
SPRING, STOP SWITCH
70:-
8
43451-KV2-920
ROD, RR. BRAKE
*
9
43453-MC4-000
JOINT, BRAKE ARM
*
10
43459-434-000
NUT, BRAKE ADJUSTING
160:-
11
43472-KB9-750
SPRING A, BRAKE ROD
40:-
12
46500-KB7-980
PEDAL ASSY., BRAKE
995:-
13
46511-KB7-980
SPRING, BRAKE PEDAL
*
14
46515-KB7-980
TUBE, BRAKE PEDAL SPRING
*
15
50535-429-000
SPRING, SIDE STAND
90:-
16
50540-KV2-920
BAR ASSY., SIDE STAND
*
17
50548-356-700
RUBBER, STAND
120:-
18
50549-356-700
COLLAR, STAND RUBBER SETTING
40:-
19
53312-657-000
WASHER, BUSH
65:-
20
90101-329000
BOLT, KICK ARM
85:-
21
90108-KV6000
SCREW, SIDE STAND PIVOT
120:-
22
BOLT, HEX., 6X18
*
23
90304-GE8003
NUT, U, 10MM
65:-
24
90501-MF9710
WASHER, THRUST, 24X13
45:-
25
90502-MF9710
WASHER, THRUST, 24X10
45:-
26
95015-53000
PIN A, JOINT
30:-
27
92101-060280A
BOLT, HEX., 6X28
40:-
28
94001-062000S
NUT, HEX., 6MM
1251:-
29
94101-06000
WASHER, PLAIN, 6MM
10:-
30
94201-16150
PIN, SPLIT, 1.6X15
5:-
31
94201-20200
PIN, SPLIT, 2.0X20
10:-
32
94201-30400
PIN, SPLIT, 3.0
15:-
33
95701-0602000
BOLT, FLANGE, 6X20
25:-
34
95701-0802800
BOLT, FLANGE, 8X28
35:-
35
96211-08000
BALL, STEEL, #8 (1/4)
10:-
* Kontakta kundtjänst för prisuppgift: 018-15 60 00
