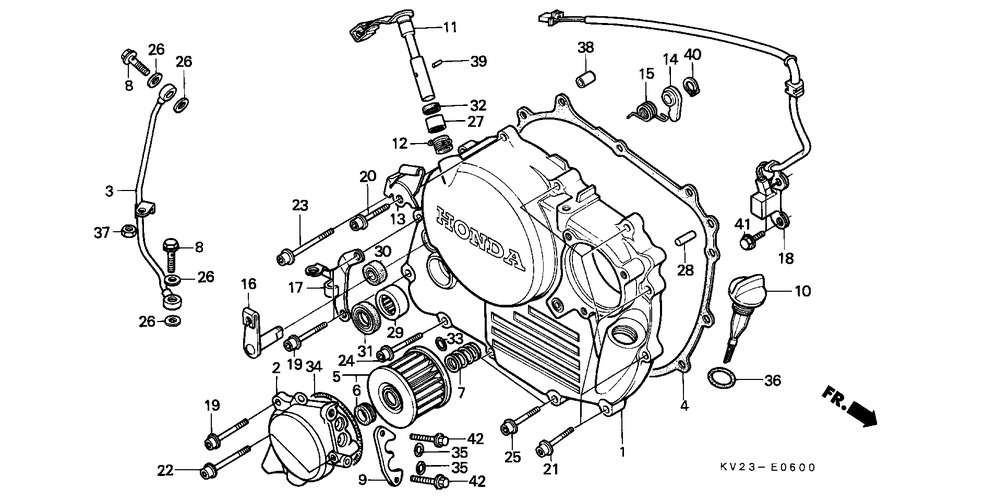

1
11330-KV2-900
COVER COMP., R. CRANKCASE
*
2
11333-KV2-901
COVER COMP., OIL FILTER
*
3
11335-KN5-670
PIPE COMP., OIL PASS
*
4
11394-KAS-890
GASKET, R. CRANKCASE COVER
190:-
5
15410-KF0-315
ELEMENT, OIL FILTER
210:-
6
15413-MC8-000
RUBBER, FILTER
45:-
7
15414-KF0-000
SPRING, OIL FILTER ELEMENT SETTING
60:-
8
15533-KN5-670
BOLT, FLANGE, 7X23, åtgår 2st
45:-
9
15630-KV2-901
PLATE, OIL HOSE SETTING
*
10
15650-KL3-670
GAUGE, OIL LEVEL
*
11
22810-KG0-980
LEVER COMP., CLUTCH
*
12
22815-KN5-671
SPRING, CLUTCH LEVER
*
13
22838-KF0-000
HOLDER, CLUTCH WIRE
*
14
28271-428-000
FOLLOWER, CAM
*
15
28274-KF0-000
SPRING, FOLLOWER
*
16
28280-KF0-000
SHAFT COMP., FOLLOWER
*
17
28287-KG0-980
RECEIVER B, DECOMPRESSION
*
18
30300-KG0-003
GENERATOR ASSY., PULSE
*
19
90091-KF0000
BOLT, FLANGE SOCKET, 6X25, åtgår 4st
70:-
20
90091-MG3000
BOLT, FLANGE SOCKET, 6X32
60:-
21
90092-KF0000
BOLT, FLANGE SOCKET, 6X28, åtgår 5st
*
22
90092-MG3000
BOLT, FLANGE SOCKET, 6X35
80:-
23
90093-KF0000
BOLT, FLANGE SOCKET, 6X40
85:-
24
90097-KF0000
BOLT, FLANGE SOCKET, 6X25
60:-
25
90098-KF0000
BOLT, FLANGE SOCKET, 6X28, åtgår 2st
80:-
26
90441-MC0000
WASHER, SEALING, 7MM, åtgår 4st
35:-
27
91053-719005
BEARING, NEEDLE, 12X16X10 (NTN), åtgår 2st
355:-
28
91101-KF0000
DOWEL PIN, 6X19
50:-
29
91106-KF0008
BEARING, NEEDLE, 20X26X12
280:-
30
91201-965000
OIL SEAL, 12X22X5
55:-
31
91204-KF0003
OIL SEAL, 20X28X5
88:-
31
91204-KF0003
OIL SEAL, 20X28X5
88:-
32
91255-KF0003
OIL SEAL, 12X17X2.5 (NOK)
60:-
32
91255-KF0003
OIL SEAL, 12X17X2.5 (ARAI)
60:-
33
91301-KF0000
GASKET, RUBBER, 9.8MM
60:-
34
91302-KF0003
O-RING, 54X2.4 (ARAI)
55:-
35
91314-ME5003
O-RING, 10X2.5, åtgår 2st
85:-
36
91307-KF0003
O-RING, 18X3 (ARAI)
35:-
37
94001-060700S
NUT, HEX., 6MM
5:-
38
94301-08200
DOWEL PIN, 8X20
40:-
39
94305-30102
PIN, SPRING, 3X10
15:-
40
94510-10000
CIRCLIP, EXTERNAL, 10MM
10:-
41
96001-0601400
BOLT, FLANGE, 6X14, åtgår 2st
30:-
42
96001-0601607
BOLT, FLANGE, 6X16, åtgår 2st
30:-
* Kontakta kundtjänst för prisuppgift: 018-15 60 00
