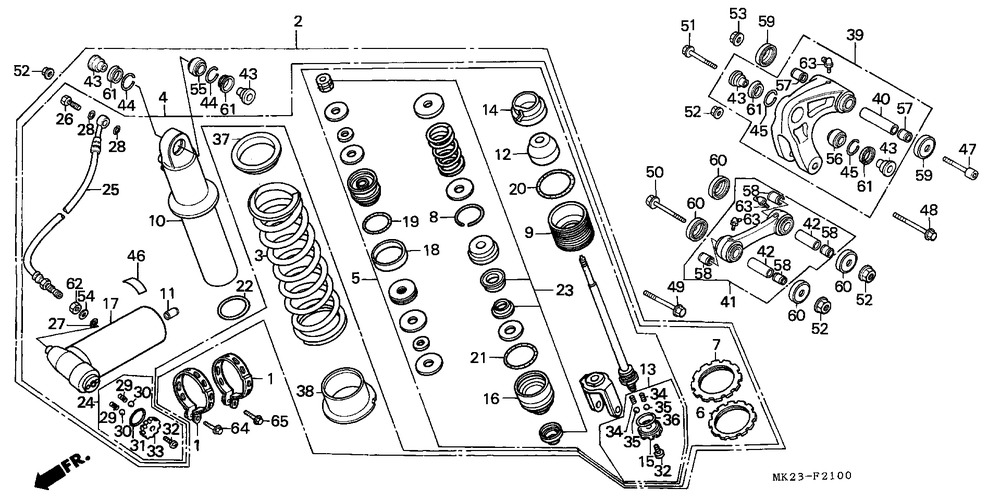

1
50252-MK2-670
BAND, SUB TANK
*
2
52400-MK2-003
CUSHION ASSY., RR.
*
3
52401-MK2-003
SPRING, RR. CUSHION
*
4
52410-MK2-003
DAMPER COMP., RR.
*
5
52421-MK2-003
ROD COMP., PISTON
*
6
52422-KN5-003
ADJUSTER, SPRING
*
7
52423-KA3-711
NUT, ADJUSTER
140:-
8
52423-MK2-771
RING D, STOPPER
*
9
52424-MK2-771
SEAT, SPRING
*
10
CASE, DAMPER
*
11
52425-381-771
CAP, AIR VALVE
85:-
12
52427-MK2-771
RUBBER, STOPPER
*
13
52428-KN5-003
PLATE SET, ADJUSTING
*
14
PLATE, END
*
15
52429-KN5-003
PLATE, ADJUSTING
*
16
52429-MK2-771
CASE COMP., ROD GUIDE
*
17
52430-MK2-003
TANK ASSY., RESERVE
*
18
52431-KF0-003
RING, PISTON
*
19
52432-KF0-003
O-RING C, 2.0X29.5
55:-
20
52432-MK2-771
O-RING, 2.0X47.5
*
21
52434-KF0-003
O-RING D, 3.5X29.7
*
22
52435-KF0-003
RING, STOPPER
*
23
52436-MK2-771
OIL SEAL SET
380:-
24
52438-KN5-003
PLATE SET, ADJUSTING
*
25
52440-MK2-003
HOSE COMP., JOINT
*
26
52441-KA3-711
BOLT, OIL, 10X22
70:-
27
52441-MA0-003
O-RING, 9.8X1.9
*
28
52442-KA3-711
WASHER, SPECIAL, 10MM, åtgår 2st
35:-
29
52445-KN5-003
SPRING, CLICK, åtgår 2st
*
30
52446-KF0-003
BALL
*
31
52447-KF0-003
O-RING, 2X23.5
*
32
52448-KF0-003
SCREW, åtgår 2st
35:-
33
52449-KF0-771
PLATE, ADJUSTING
*
34
52455-KF0-003
SPRING, CLICK, åtgår 2st
45:-
35
52456-KF0-003
BALL, åtgår 2st
50:-
36
52457-KN5-003
SEAL, RING
150:-
37
52458-KN5-003
SEAT B, SPRING
*
38
52459-KN5-003
SEAT C, SPRING (SHOWA)
*
39
ARM ASSY., CUSHION
*
40
52463-KN5-000
COLLAR, CUSHION ARM PIVOT
225:-
41
52470-KN5-000
ROD ASSY., CUSHION CONNECTING
*
42
52473-KN5-000
COLLAR, CUSHION CONNECTING ROD, åtgår 2st
155:-
43
52486-KN5-003
COLLAR, DAMPER
*
44
52487-KA4-831
RING, STOPPER, åtgår 2st
50:-
45
52487-KN5-000
RING, STOPPER, åtgår 2st
40:-
46
LABEL, RR. DAMPER CAUTION (FRENCH)
*
46
87516-MA0-003
LABEL, RR. DAMPER CAUTION
*
47
90128-MV1000
BOLT, SOCKET, 12X100
115:-
48
90129-KF0000
BOLT, FLANGE, 10X77
325:-
49
90150-KF0000
BOLT, FLANGE, 10X72
220:-
50
90151-KV6910
BOLT, FLANGE, 10X69
165:-
51
90153-KA3730
BOLT, FLANGE, 10X48
*
52
90304-GE8003
NUT, U, 10MM, åtgår 4st
65:-
53
90306-KF0003
NUT, FLANGE, 12MM
80:-
54
90501-MT2000
WASHER
40:-
55
91077-KN5004
BEARING, SPHERICAL, 14MM
615:-
56
91077-KN5004
BEARING, SPHERICAL, 14MM
615:-
57
91078-KN5003
BEARING, CUSHION ARM (NTN), åtgår 2st
300:-
58
91079-KN5003
BEARING, CONNECTING ROD, åtgår 4st
290:-
59
91261-KN5003
SEAL, CUSHION ARM, åtgår 2st
245:-
60
91262-KN5003
SEAL, CUSHION CONNECTING ROD PIVOT, åtgår 4st
245:-
61
91351-KN5004
DUST SEAL B, åtgår 4st
105:-
61
91351-KN5004
DUST SEAL B, åtgår 4st
105:-
62
94002-120000S
NUT, HEX., 12MM
20:-
63
96201-80000
NIPPLE, GREASE (B.T6S), åtgår 3st
65:-
64
96300-0602000
BOLT, FLANGE, 6X20
20:-
65
96300-0602500
BOLT, FLANGE, 6X25
40:-
* Kontakta kundtjänst för prisuppgift: 018-15 60 00
