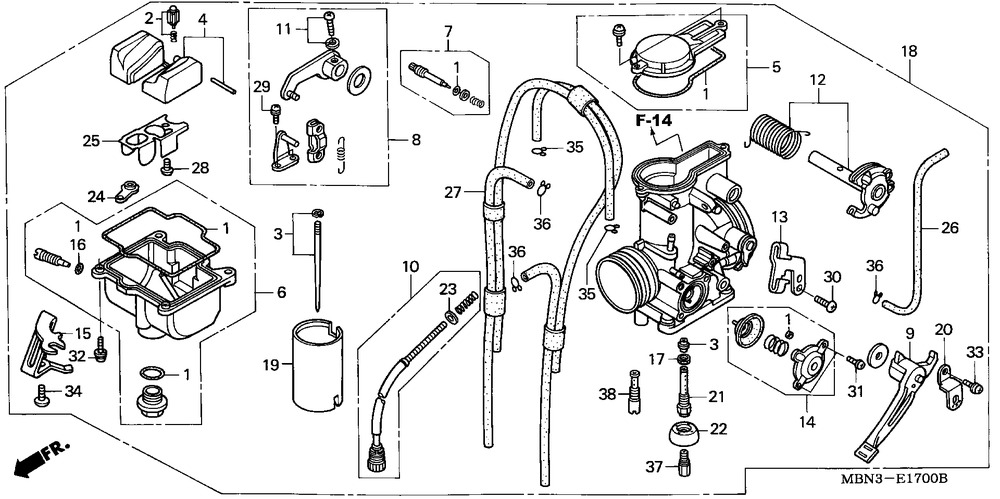

Honda » XR650R5 (Europe Direct) » CARBURETOR

1
16010-MBN-671
GASKET SET
290:-
2
16011-HA2-671
VALVE SET, FLOAT
533:-
3
16012-MBN-641
NEEDLE SET, JET
438:-
4
16013-HA2-671
FLOAT SET
341:-
5
TOP SET
*
6
CHAMBER SET, FLOAT
*
7
16016-KN4-L10
SCREW SET A
217:-
8
16018-MBN-672
ARM SET, LINK
1604:-
9
16019-MBN-641
LEVER COMP., CHOKE
*
10
SCREW SET B
*
11
16029-KCE-670
SCREW SET C
74:-
12
LINK SET, THROTTLE
*
13
16038-MBN-671
PLATE, STAY
105:-
14
16048-MBN-671
VALVE SET, AIR CUT
1519:-
15
PLATE, STAY
*
16
16076-ND5-004
O-RING, 1.3X4.3
24:-
17
NUT, HEX.
*
18
16100-MBN-642
CARBURETOR ASSY. (PE78C B)
9095:-
19
16112-MBN-671
VALVE, THROTTLE
915:-
20
PLATE, SETTING
*
21
16165-MBN-641
HOLDER, NEEDLE JET
300:-
22
16168-KA5-004
HOLDER, JET
99:-
23
16178-ML7-004
WASHER, PLAIN
151:-
24
16179-HA0-003
BINDER
74:-
25
PLATE, BUFFER
*
26
16198-KN5-405
TUBE
59:-
27
16199-MBN-671
TUBE COMP., AIR VENT
255:-
28
93500-030060H
SCREW, PAN, 3X6
10:-
29
93500-030080H
SCREW, PAN, 3X8, åtgår 2st
10:-
30
93500-050100H
SCREW, PAN, 5X10
10:-
31
93892-0401008
SCREW-WASHER, 4X10, åtgår 2st
15:-
32
93892-0401608
SCREW-WASHER, 4X16, åtgår 4st
19:-
33
93892-0501008
SCREW-WASHER, 5X10
15:-
34
93892-0501208
SCREW-WASHER, 5X12
15:-
35
95002-02079
CLIP, TUBE (B7), åtgår 2st
10:-
36
95002-02659
CLIP, TUBE (B6.5), åtgår 3st
15:-
37
99113-GHB1800
JET, MAIN, #180
162:-
37
99113-GHB1820
JET, MAIN, #182
162:-
37
99113-GHB1850
JET, MAIN, #185
162:-
37
99113-GHB1880
JET, MAIN, #188
113:-
37
99101-3571900
JET, MAIN, #190
124:-
37
99113-GHB1920
JET, MAIN, #192
165:-
37
99101-3571950
JET, MAIN, #195
165:-
37
99113-GHB1780
JET, MAIN, #178
162:-
37
99101-3571750
JET, MAIN, #175
152:-
37
99101-3571720
JET, MAIN, #172
152:-
37
99113-GHB1550
JET, MAIN, #155
165:-
37
99113-GHB1580
JET, MAIN, #158
165:-
37
99113-GHB1600
JET, MAIN, #160
152:-
37
99113-GHB1620
JET, MAIN, #162
152:-
37
99113-GHB1650
JET, MAIN, #165
162:-
37
99113-GHB1680
JET, MAIN, #168
162:-
37
99101-3571700
JET, MAIN, #170
152:-
38
99103-MAG0600
JET, SLOW, #60
161:-
38
99103-MAG0620
JET, SLOW, #62
161:-
38
99105-MBN0650
JET, SLOW, #65
165:-
38
99105-MBN0680
JET, SLOW, #68
165:-
38
99105-MBN0700
JET, SLOW, #70
165:-



* Kontakta kundtjänst för prisuppgift: 018-15 60 00
