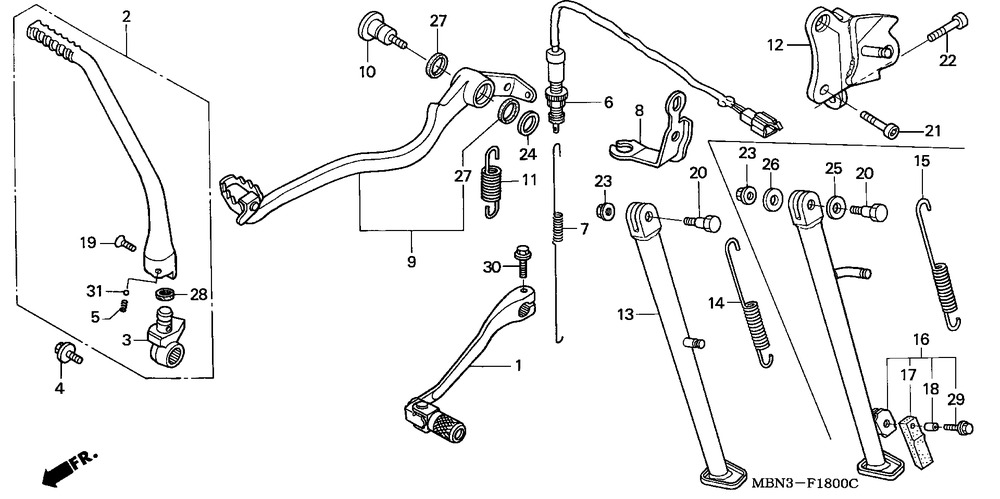

1
24700-MBN-670
PEDAL COMP., GEAR CHANGE
1625:-
2
28300-MBN-670
ARM ASSY., KICK STARTER
2455:-
3
28302-MBN-670
JOINT, KICK ARM
1190:-
4
28306-KAE-770
BOLT, KICK JOINT
155:-
5
28333-124-000
SPRING, KICK STARTER STOPPER
30:-
6
35350-MBN-651
SWITCH ASSY., RR. STOP
460:-
7
35357-MBN-650
SPRING, STOP SWITCH
70:-
8
35358-MBN-650
STAY, STOP SWITCH
190:-
9
46510-MBN-650
PEDAL, RR. BRAKE
2625:-
10
46513-MBN-670
SHAFT, BRAKE PIVOT
275:-
11
46514-MBN-670
SPRING, BRAKE PEDAL
70:-
12
50150-MBN-671
BRACKET COMP., SIDE STAND
1460:-
13
50530-MBN-670
BAR, SIDE STAND
1390:-
14
50535-KN5-670
SPRING, SIDE STAND
100:-
19
90101-KCY760
SCREW, OVAL, 6X28
25:-
20
90108-KV6000
SCREW, SIDE STAND PIVOT
115:-
21
90113-MBN670
BOLT, SOCKET, 8X27, åtgår 2st
80:-
22
90114-MBN670
BOLT, SOCKET, 10X35
145:-
23
90304-GE8003
NUT, U, 10MM
UTGÅTT
24
90436-VA3000
WASHER, SPECIAL (22X8.5X2)
*
27
91251-444000
DUST SEAL, 15X20X2.5, åtgår 2st
80:-
28
91303-KA3732
DUST SEAL, 19X25X4.1 (NOK)
100:-
30
96001-0602200
BOLT, FLANGE, 6X22
25:-
31
96211-08000
BALL, STEEL, #8 (1/4)
10:-
* Kontakta kundtjänst för prisuppgift: 018-15 60 00
