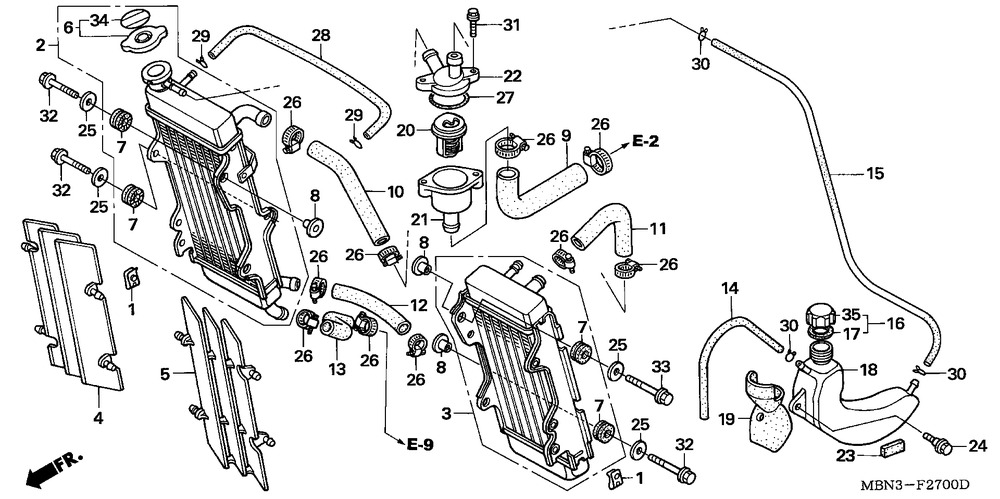

1
18354-KS6-000
NUT, CHAMBER SPRING, åtgår 2st
57:-
2
19010-MBN-640
RADIATOR, R.
5748:-
3
19015-MBN-670
RADIATOR, L.
5748:-
4
19033-MBN-670
GRILLE, R. RADIATOR
853:-
5
19034-MBN-670
GRILLE, L. RADIATOR
853:-
6
19045-MZ1-621
CAP COMP., RADIATOR
575:-
7
19051-KA3-830
RUBBER, RADIATOR MOUNTING, åtgår 4st
85:-
8
19052-MAC-680
COLLAR, RADIATOR MOUNTING, åtgår 3st
61:-
9
19061-MBN-670
HOSE, THERMOSTAT
121:-
10
19062-MBN-670
HOSE, R. UPPER
107:-
11
19063-MBN-670
HOSE, L. UPPER
80:-
12
19064-MBN-670
HOSE, R. LOWER
90:-
13
19065-MBN-670
HOSE, WATER PUMP
71:-
14
19104-MBN-670
TUBE, RESERVE TANK BREATHER
*
15
19105-MBN-670
TUBE, RADIATOR BREATHER
105:-
16
19105-MG8-000
CAP ASSY., RESERVE TANK
166:-
17
19107-MG8-000
PACKING, RESERVE TANK
35:-
18
19110-MBN-670
TANK, RADIATOR RESERVE
915:-
19
19111-MBN-670
GUARD, RESERVE TANK
426:-
20
19300-ML7-003
THERMOSTAT ASSY.
975:-
21
19311-MBN-670
CASE, THERMOSTAT
*
22
19315-MBN-670
COVER, THERMOSTAT
745:-
23
81215-MZ0-700
SEAL, SADDLEBAG
15:-
24
90111-162000
BOLT, FLANGE, 6MM
68:-
25
90403-KA3830
WASHER, RADIATOR MOUNTING, åtgår 3st
31:-
26
90670-GHB650
CLAMP, WATER HOSE, åtgår 10st
66:-
27
91311-KE8000
O-RING, 47.5X2
68:-
28
95001-7530040S
TUBE, FUEL, 7.3X230 (95001-75001-60M)
157:-
29
95002-01130
CLIP, TUBE (A13), åtgår 2st
27:-
30
95002-02100
CLIP, TUBE (B10), åtgår 3st
15:-
31
96001-0602007
BOLT, FLANGE, 6X20, åtgår 2st
21:-
32
90005-KGB610
BOLT, FLANGE, 6X26.5, åtgår 3st
50:-
33
96001-0602807
BOLT, FLANGE, 6X28
28:-
34
19055-MV9-881
SEAL, RADIATOR CAP (ENGLISH/FRENCH/JAPANESE)
117:-
35
19104-ME9-000
CAP, RESERVE TANK
200:-
* Kontakta kundtjänst för prisuppgift: 018-15 60 00
