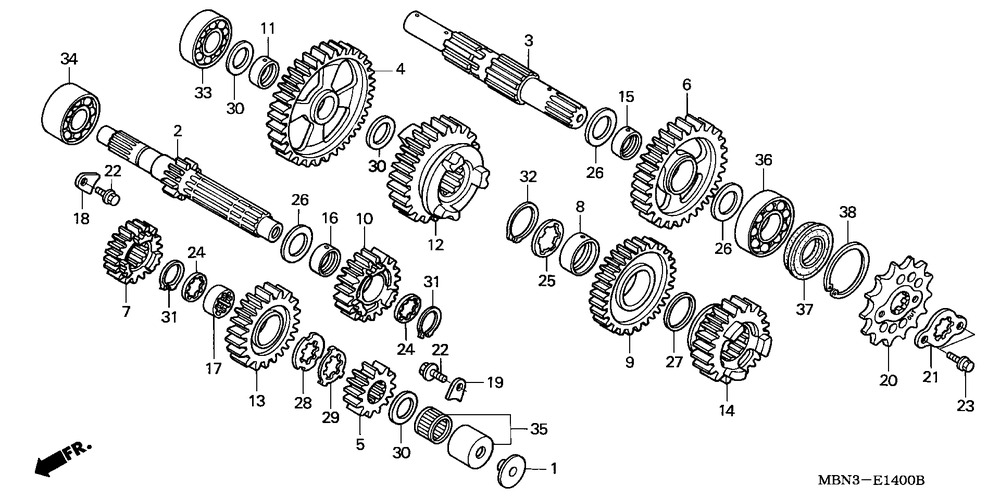

1
15171-KN8-000
GUIDE, LIFTER ROD
231:-
2
23211-MBN-670
MAINSHAFT (12T)
*
3
23220-MBN-671
COUNTERSHAFT COMP.
*
4
23411-MBN-670
GEAR, COUNTERSHAFT LOW (37T)
*
5
23421-MBN-670
GEAR, MAINSHAFT SECOND (16T)
*
6
23431-MBN-670
GEAR, COUNTERSHAFT SECOND (34T)
2244:-
7
23441-MBN-670
GEAR, MAINSHAFT THIRD (18T)
*
8
23442-MR5-670
BUSH, 28X31X10
262:-
9
23451-MBN-670
GEAR, COUNTERSHAFT THIRD (30T)
2244:-
10
23461-MBN-670
GEAR, MAINSHAFT FOURTH (21T)
2244:-
11
23462-HB3-000
BUSH, 20MM
153:-
12
23471-MBN-671
GEAR, COUNTERSHAFT FOURTH (28T)
*
13
23481-MBN-670
GEAR, MAINSHAFT FIFTH (26T)
2323:-
14
23491-MBN-671
GEAR, COUNTERSHAFT FIFTH (29T)
2832:-
15
23495-KV3-700
COLLAR, 25X28X9.5
255:-
16
23495-MB0-000
COLLAR, 25X12
322:-
17
23512-KY2-000
COLLAR, SPLINE, 25X12.4
*
18
23521-MBN-670
PLATE A, BEARING SETTING
*
19
23531-MBN-670
PLATE B, BEARING SETTING
*
20
23801-MBN-670
SPROCKET, DRIVE (14T)
471:-
21
23811-MN8-000
PLATE, FIXING
152:-
22
90071-MF5000
BOLT, FLANGE SOCKET, 6X14, åtgår 2st
87:-
23
90118-958003
BOLT, FLANGE, 6X12, åtgår 2st
97:-
24
90451-KY2000
WASHER, SPLINE, 25X31X1.5, åtgår 2st
58:-
25
90452-MR7000
WASHER, SPLINE, 28X34X1.5
51:-
26
90456-MA6000
WASHER, THRUST, 25MM, åtgår 3st
48:-
27
90458-729920
WASHER, THRUST, 28MM
*
28
90461-KY2000
WASHER, SPLINE, 25MM
81:-
29
90462-KAZ000
WASHER, LOCK, 25MM
118:-
30
90469-ME5000
WASHER, THRUST, 20X0.9, åtgår 3st
46:-
31
90601-107000
CIRCLIP, 25MM, åtgår 2st
36:-
32
90603-MN4000
CIRCLIP, 28MM
61:-
33
91001-GM4033
BEARING, SPECIAL RADIAL BALL (6204) (NTN)
293:-
34
91003-MBN671
BEARING, BALL, 5205A
918:-
35
91022-MG2791
BEARING, NEEDLE, 20MM
497:-
36
91024-MBN671
BEARING, BALL, 6305
835:-
37
91205-MBN672
OIL SEAL, 25X36X5
107:-
38
94524-40100
CIRCLIP, INTERNAL, 40MM
23:-
* Kontakta kundtjänst för prisuppgift: 018-15 60 00
