0
13200-12603

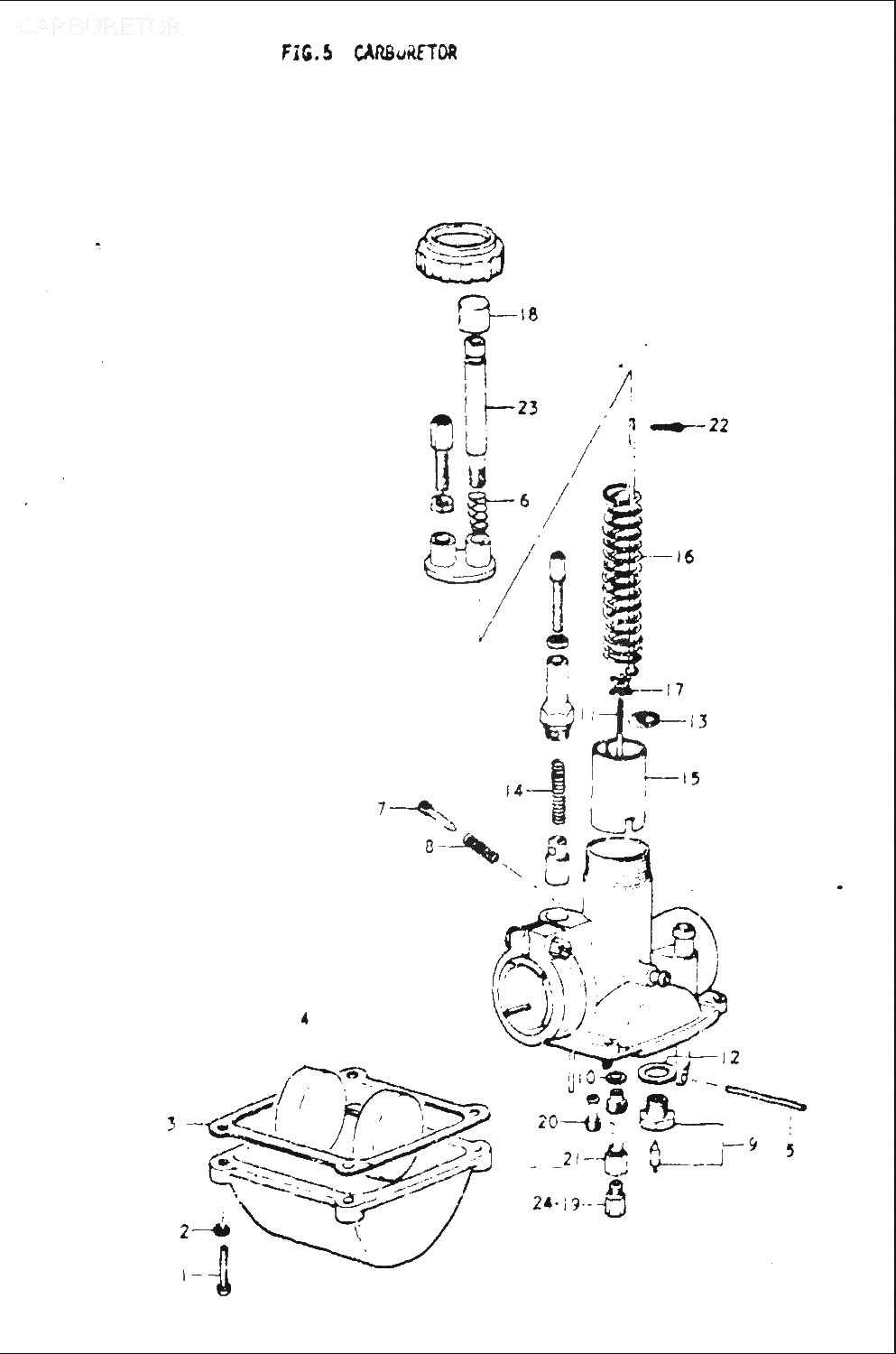

CARBURETOR ASSY
*
1
02112-04203
SCREW, åtgår 4st
15:-
3
13251-09211
GASKET, FLOAT CHAMBER
113:-
4
13252-09210
FLOAT
409:-
5
13254-01010
PIN
32:-
6
13268-05010
THROTTLE ADJUSTER SPRING (0000)
93:-
7
13269-01010
PILOT AIR ADJUSTING SCREW
242:-
8
13268-01010
SPRING (M12MARK2,M15D,M12M12MARK2,M15D,M12)
48:-
9
13370-09211
NEEDLE VALVE ASS'Y
1003:-
10
13382-03110
WASHER
24:-
11
13383-12011
NEEDLE, JET
307:-
12
13392-01010
NEEDLE VALVE SEAT GASKET
22:-
13
13394-40D00
CLIP, NEEDLE
43:-
14
13417-01010
SPRING
60:-
16
13573-36110
SPRING, THROTTLE VALVE RETUR (O K10-431800 OD=18(0.71)I.D=16.4=7
48:-
17
13581-09210
PLATE
53:-
18
13688-08010
THROTTLE ADJUSTER CAP
72:-
19
09491-75001
MAIN JET
*
20
09492-35004
JET, PILOT
*
21
09494-00029
JET, NEEDLE
*
23
13267-05010
THROTTLE VALVE STOP SCREW
228:-
24
09491-70001
JET, MAIN
*
24
09491-80001
MAIN JET
*
24
09491-90001
JET MAIN 90
*
24
09491-90001
JET MAIN 90
*
24
09491-95001
MAIN JET
*
* Kontakta kundtjänst för prisuppgift: 018-15 60 00
