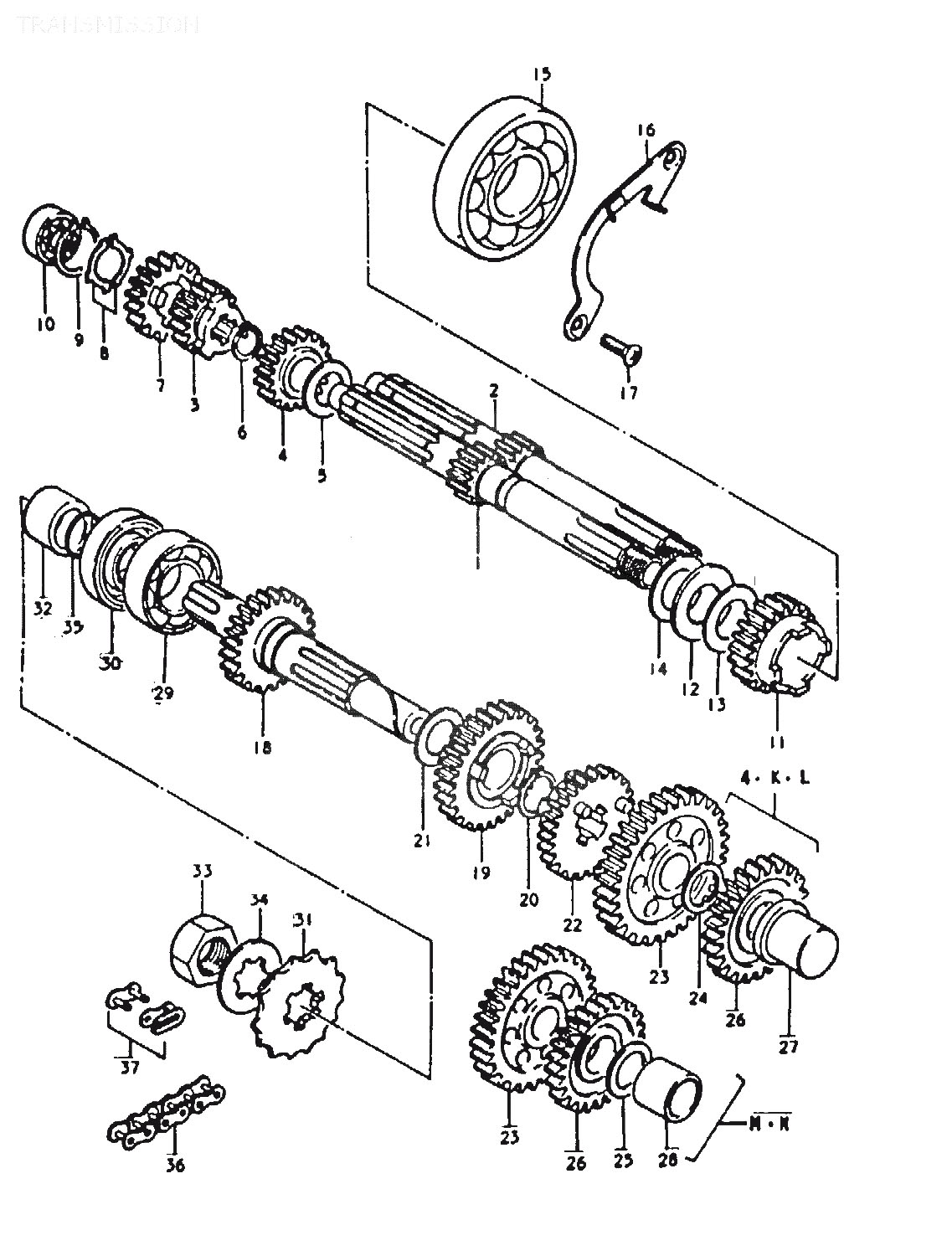

1
24121-12000
COUNTERSHAFT
*
3
24221-07000
GEAR, 2ND DRIVE
*
4
24231-07000
GEAR, 3RD DRIVE
*
5
08211-17241
WASHER, CRANKSHAFT THRUST
34:-
6
09380-17001
CIRCLIP, LH
25:-
7
24241-07000
GEAR, 4TH DRIVE
*
8
09399-14001
RING, 4TH DRIVE GEAR, åtgår 2st
49:-
9
09380-26001
CIRCLIP
43:-
10
09262-12001
BEARING
324:-
11
26280-03002
GEAR, KICK STARTER DRIVEN
*
12
09263-20002
BEARING
*
13
09160-20005
WASHER (00 ID=20(0.78) OD=30(1.18)3))
*
14
09160-20007
WASHER (O.D.=34.5(1.36), L.D.=20(O.D.=34.5(1.36), L.D.=20(0.8(0.
*
16
24741-25000
PLATE, COUNTERSHAFT BEARING
*
18
24131-07000
DRIVESHAFT
*
19
24321-07000
GEAR, 2ND DRIVEN
*
22
24331-07000
GEAR, 3RD DRIVEN
*
23
24310-07001
GEAR, 1ST DRIVEN
*
26
26260-12000
GEAR, KICK STARTER IDLE
*
27
09319-15002
BUSHING, DRIVESHAFT
*
30
09283-25003
OIL SEAL
194:-
32
09180-20016
SPACER (20X25X15.5)
*
33
09140-20001
NUT
44:-
34
09167-20006
LOCK WASHER
34:-
35
09280-20001
O RING, CNTR SHAFT
28:-
36
27600-08010
CHAIN ASSY, DRIVE (#428X104&)
*
37
27620-20210
JOINT, DRIVE CHAIN
*
* Kontakta kundtjänst för prisuppgift: 018-15 60 00
