0
13200-29C30

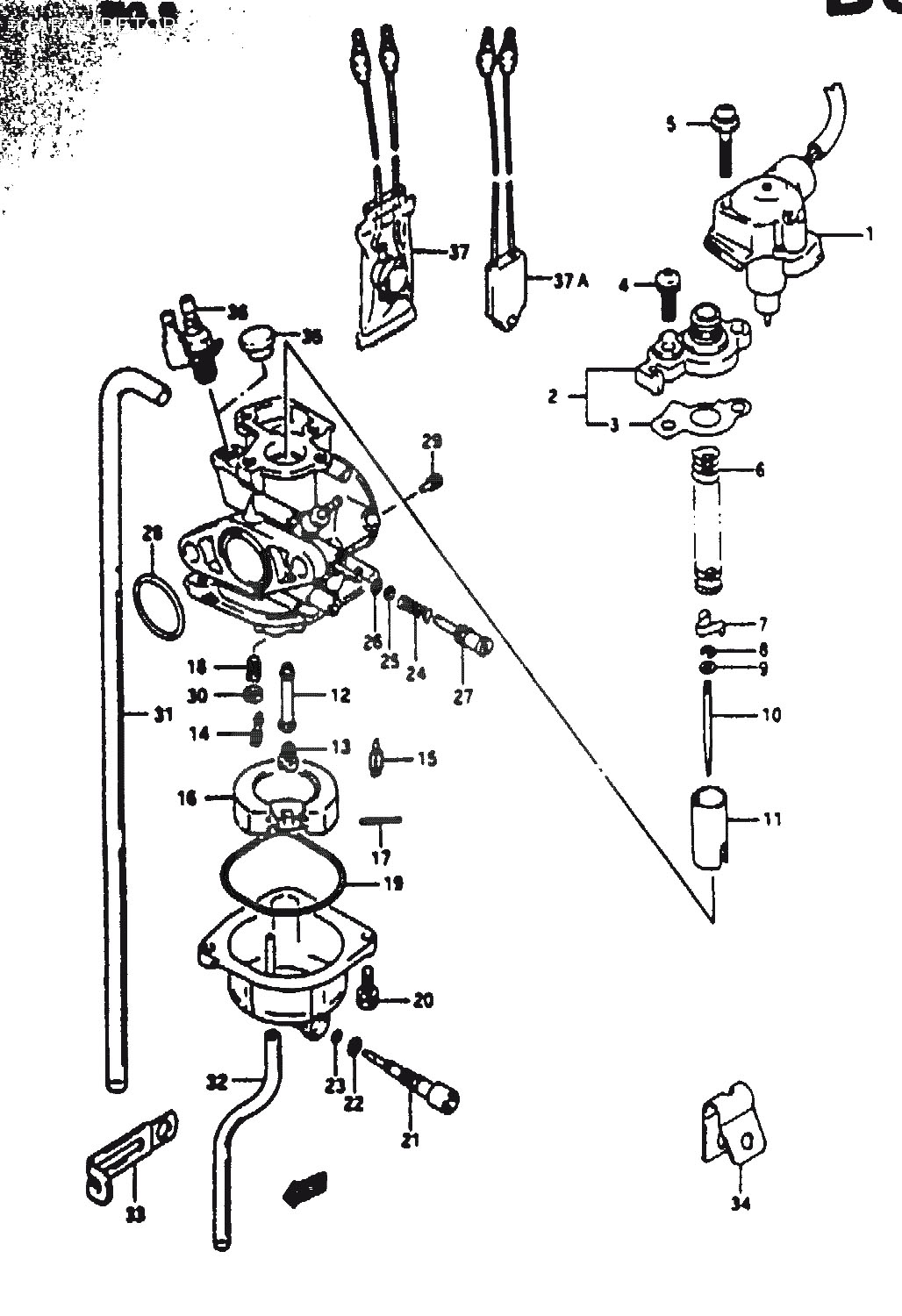

CARBURETOR ASSY
*
0
13200-36C10
CARBURETOR ASSY
*
0
13200-36C20
CARBURETOR ASSY
*
1
13430-29C11
ELEMENT ASSY, THERMO
3840:-
2
13260-39C00
CAP ASSY, TOO
310:-
3
13258-39C00
GASKET
80:-
4
13601-04148
SCREW, åtgår 2st
30:-
5
13601-04228
SCREW, åtgår 2st
70:-
6
13573-37B60
SPRING
140:-
7
13581-39C00
CLIP
50:-
8
13533-98410
E RING
*
9
13382-37B60
WASHER
65:-
10
13383-02930
NEEDLE, JET (3L16-3)
*
11
13551-37B60
VALVE, PISTON (CA:2.5)
885:-
12
09494-00660
JET, NEEDLE (E-3)
*
13
09491-62007
JET, MAIN (62.5)
330:-
14
09492-17014
JET, PILOT (17.5)
*
15
13370-47A00
VALVE, NEEDLE
*
16
13250-47A00
FLOAT
675:-
17
13254-47A00
PIN, FLOAT
65:-
18
09493-50003
.JET, PILOT NO. 2
*
19
13258-47A00
GASKET
*
20
02112-34123
SCREW, åtgår 2st
25:-
21
13247-37B70
SCREW, DRAIN
165:-
22
13278-02340
O RING
35:-
24
13268-35010
.SPRING (K,L,M,A,BR)
50:-
25
13291-35010
WASHER
40:-
26
13295-38010
O RING
*
27
13267-29A00
ADJUSTER, THROTTLE
170:-
28
13278-09400
O RING
95:-
29
09493-95001
JET, AIR (0.95)
215:-
30
13683-39C00
GASKET
140:-
31
13684-29C50
HOSE (3.5X6.5X750)
250:-
32
09352-30503-600
HOSE
105:-
33
09404-06429
CLAMP
20:-
34
09403-06401
CLAMP
45:-
35
09250-06001
CAP, DAMPER BOSS
25:-
36
13692-36C00
HEATER, CARBURETOR
*
36
13692-02D00
BEATER, CARBURETOR (15W)
*
36
13651-25E00
BEATER, CARBURETOR (15W)
*
37
13694-36C01
SWITCH, THERMO
*
37
13655-29C00
SWITCH, THERMO
*
37
13694-40D00
SWITCH, THERMO
*
* Kontakta kundtjänst för prisuppgift: 018-15 60 00
