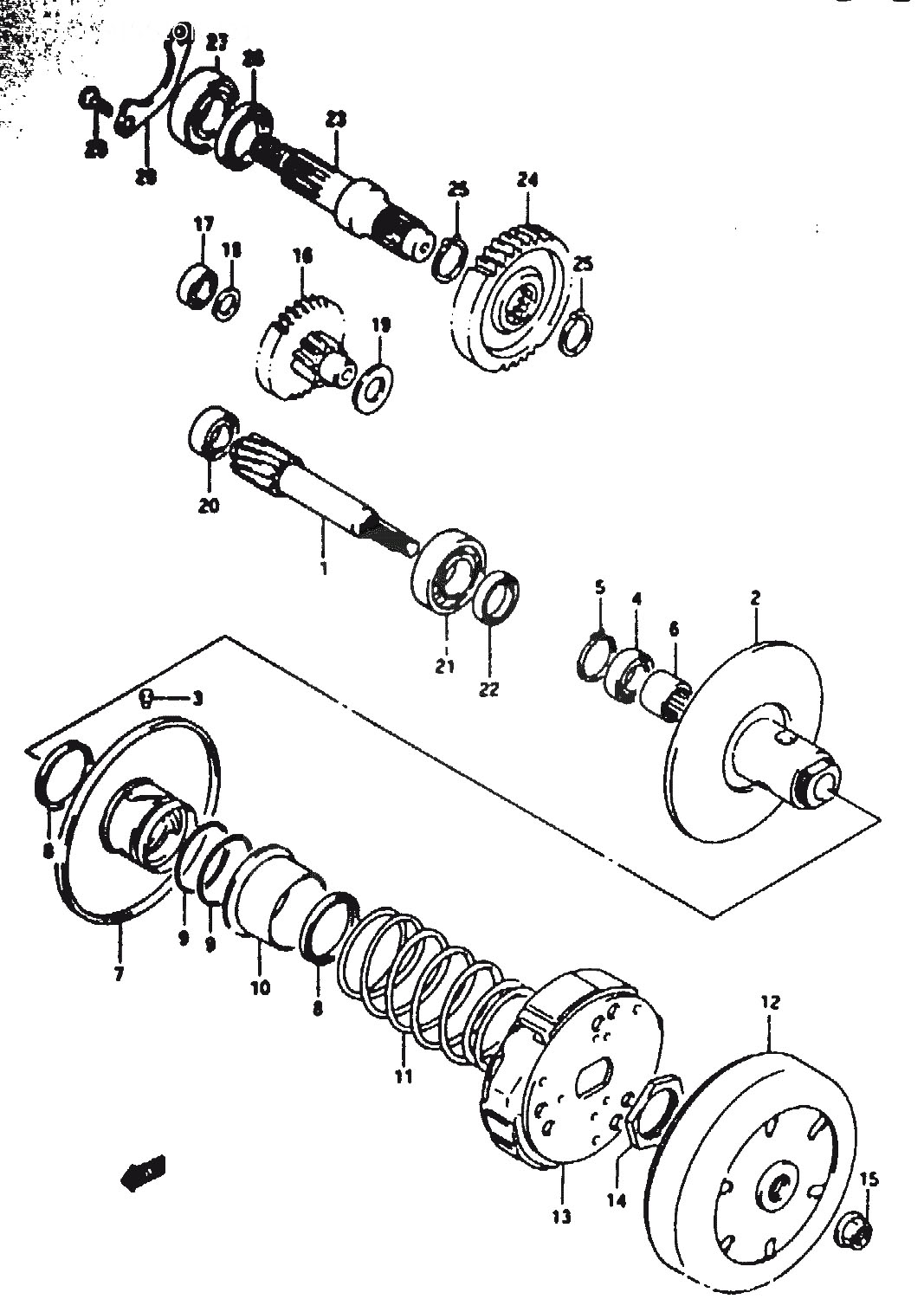

1
24131-36C01
SHAFT, DRIVE (NT:11)
*
2
21210-04C10
FACE, FIXED DRIVEN
2125:-
3
09201-06007
PIN, åtgår 3st
*
4
09262-19018
BEARING, FIXED LH
*
6
09263-17012
BEARING, FIXED RH
*
7
21240-04C10
FACE, MOVABLE DRIVEN
1880:-
8
09284-34002
OIL SEAL (34X39X3), åtgår 2st
120:-
9
09280-41005
O RING (D:4.6,ID:41.9), åtgår 2st
40:-
11
21243-25E00
SPRING, MOVABLE DRIVEN
560:-
12
21220-04C20
HOUSING, CLUTER
*
13
21501-39C00
CLUTCH ASSY, SHOE
*
14
09140-28004
NUT
105:-
16
24150-29C24
SHAFT, IDLE
*
17
08113-62017
BEARING, RH
280:-
18
08211-12201
WASHER
*
19
08211-16251
THRUST WASHER
*
20
08113-62017
BEARING, RH
280:-
22
09283-17023
OIL SEAL (17X28X5.5)
160:-
23
24141-36C01
SHAFT, REAR AXLE
2405:-
24
24321-29C00
GEAR, FINAL DRIVEN
*
26
09283-27010
OIL SEAL, LH
155:-
27
08130-62047
BEARING
545:-
28
24751-07900
RETAINER, BEARING
60:-
30
24751-07900
RETAINER, BEARING
60:-
31
02122-06163
SCREW, åtgår 2st
20:-
32
02122-06167
SCREW, åtgår 2st
25:-
* Kontakta kundtjänst för prisuppgift: 018-15 60 00
