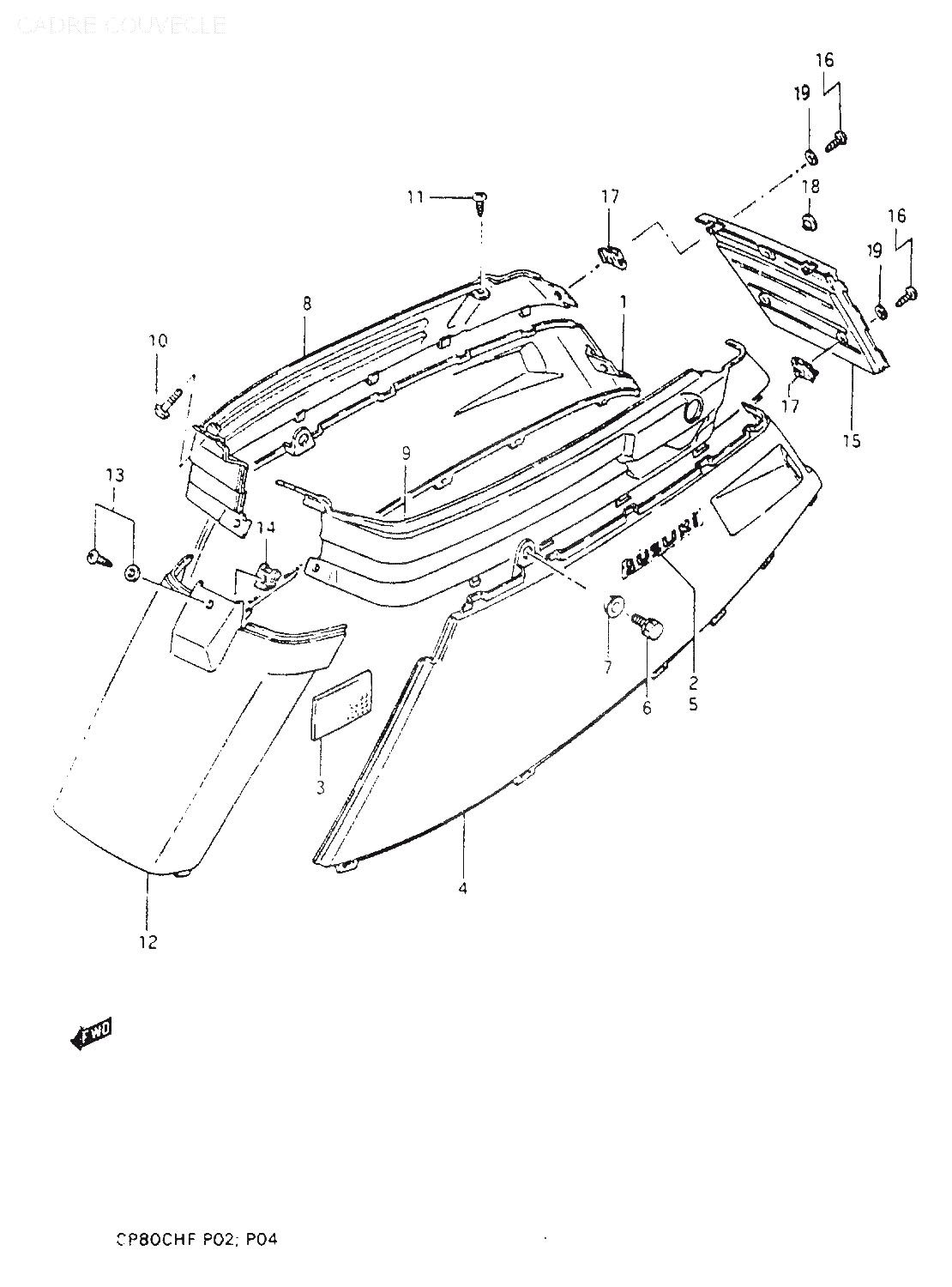

1
47111-03A40-00J
COVER, SIDE RH
*
1
47111-03A40-22R
COVER, SIDE RH
*
1
47111-03A40-04Y
COVER, SIDE RH
*
2
68131-03A50-16D
EMBLEM
*
2
68131-03A50-05F
EMBLEM
*
3
47122-02E00
HEAT SHIELD, SIDE COVER
*
4
47211-03A40-00J
COVER, SIDE LH
*
4
47211-03A40-22R
COVER, SIDE LH
*
4
47211-03A40-04Y
COVER, SIDE LH
*
5
68131-03A50-16D
EMBLEM
*
5
68131-03A50-05F
EMBLEM
*
6
01104-06165
BOULON, COTE SUPERIEUR, åtgår 2st
*
8
47121-03A40
COVER, SIDE UPPER RH
*
9
47221-03A40
COVER, SIDE UPPER LH
*
10
02142-16255
SCREW M6X25 DIN 7985
*
11
03241-04125
VIS, ARRIERE SUPERIEUR, åtgår 2st
*
12
47321-03A00-00J
COVER, FRAME FRONT
*
12
47321-03A00-22R
COVER, FRAME FRONT
*
12
47321-03A00-04Y
COVER, FRAME FRONT
*
13
03241-15205
VIS
*
14
09148-05017
NUT
39:-
15
47331-03A00
COVER, FRAME REAR
*
16
03241-05165
SCREW, åtgår 4st
*
17
09148-05017
NUT, åtgår 4st
39:-
18
09169-08037
WASHER
*
* Kontakta kundtjänst för prisuppgift: 018-15 60 00
