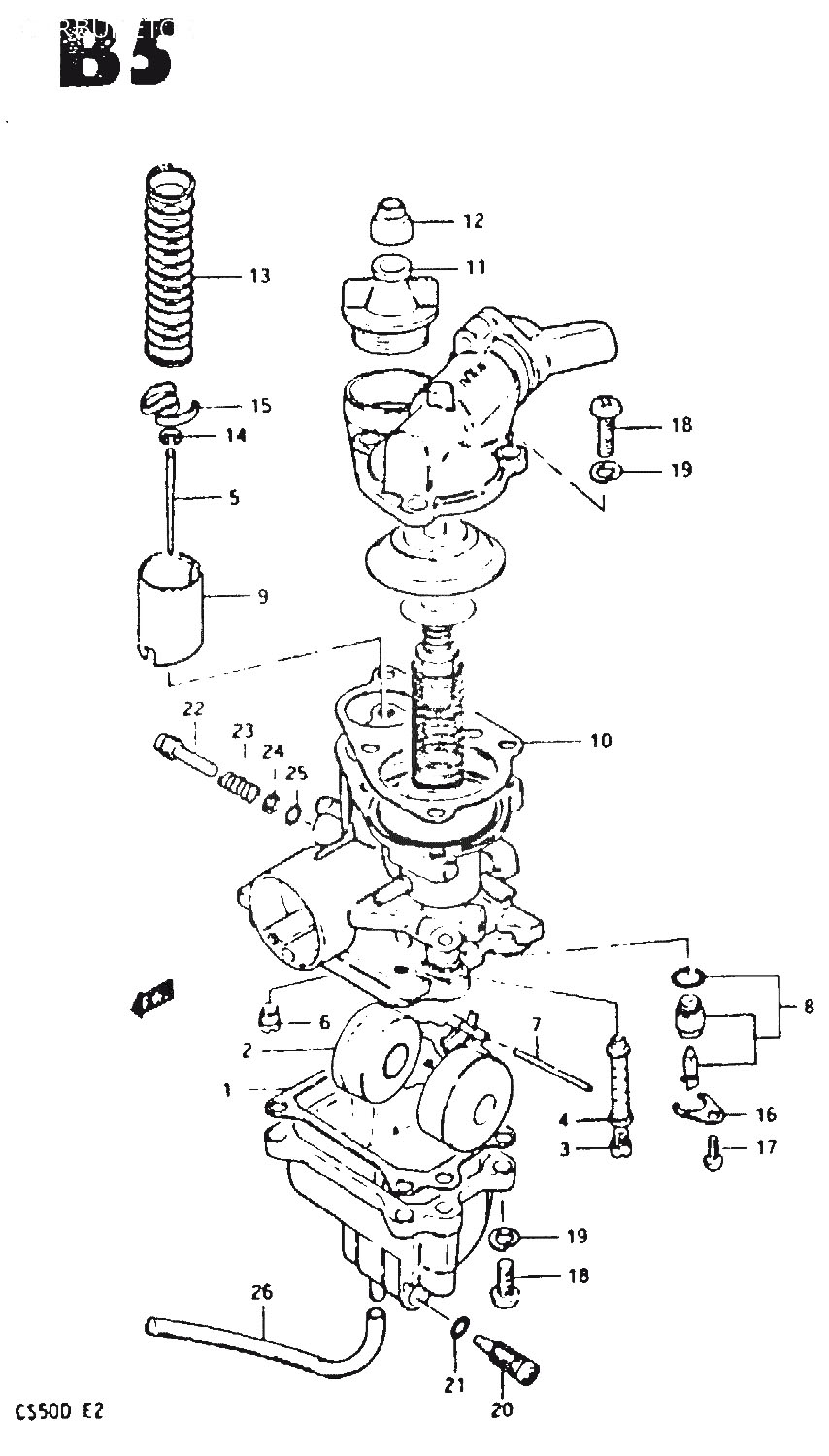

1
13258-02100
GASKET
55:-
2
13250-02100
FLOAT
*
3
09491-85006
JET, MAIN (85)
160:-
4
09494-00334
JET, NEEDLE (E-3)
*
6
09492-17006
JET, PILOT (17.5)
150:-
7
13254-20010
.PIN, FLOAT
40:-
8
13370-02421
VALVE ASSY, NEEDLE
1165:-
9
13551-02500
VALVE, THROTTLE (CA:2.0)
*
10
13249-02500
GASKET
95:-
11
13261-02500
CAP
*
13
13573-02101
SPRING, CARBURETOR RETURN
*
16
13373-46710
PLATE
85:-
20
13247-02340
SCREW, DRAIN
55:-
21
13249-52011
O RING
*
22
13267-02100
ADJUSTER, THROTTLE VALVE STOP
*
24
13291-35010
WASHER
40:-
25
13295-33010
O RING (K,LM,A,B)
50:-
26
13684-02100
HOSE, OVER FLOW
*
* Kontakta kundtjänst för prisuppgift: 018-15 60 00
