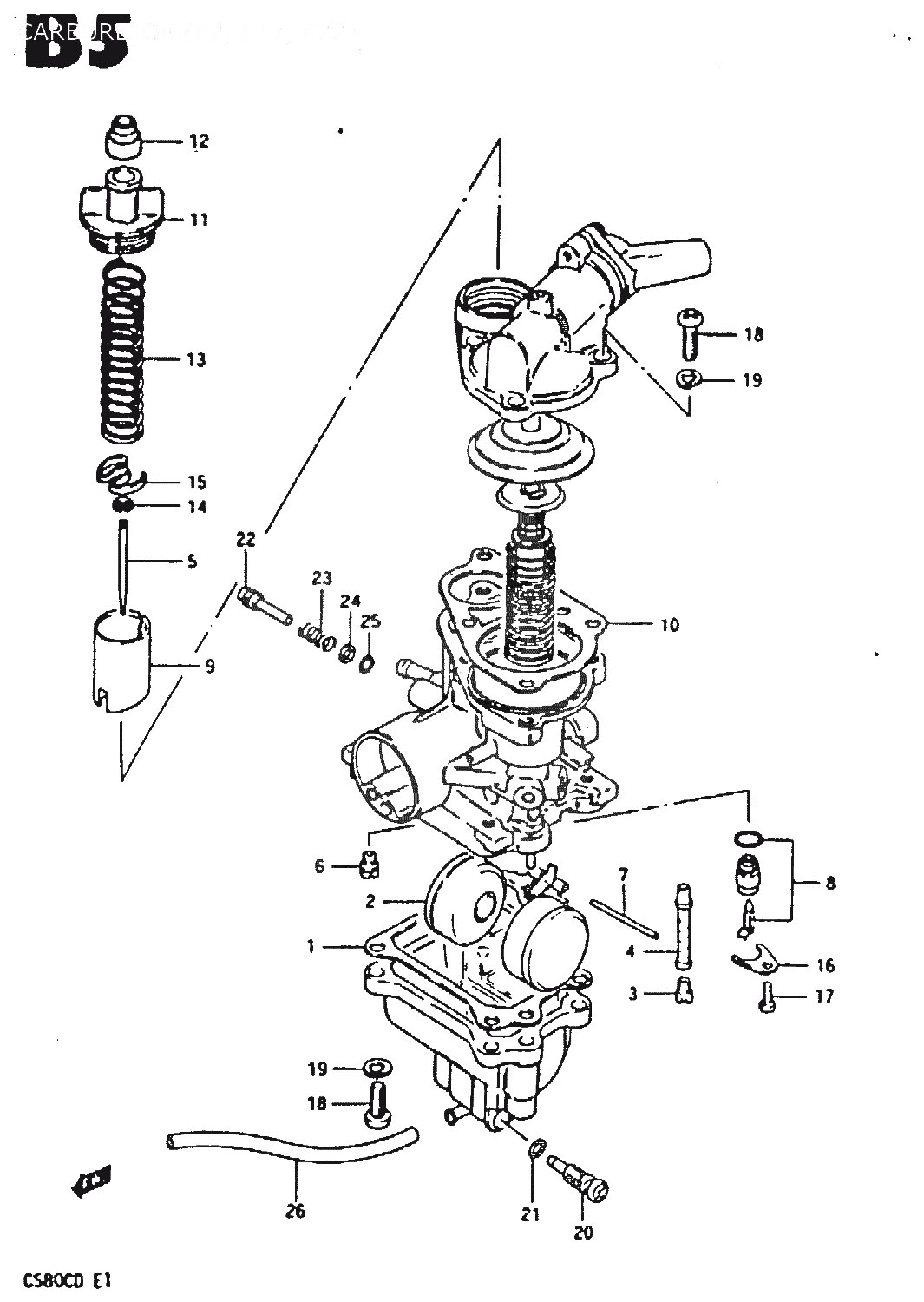

1
13258-02100
GASKET
55:-
2
13250-06410
FLOAT
470:-
3
09491-82006
JET, MAIN (82.5)
*
4
09494-00429
JET, NEEDLE (E-7)
*
5
13383-02160
NEEDLE, JET (3C3-3)
*
6
09492-15006
JET,PILOT
*
7
13254-20010
.PIN, FLOAT
40:-
8
13370-02421
VALVE ASSY, NEEDLE
1165:-
9
13551-02500
VALVE, THROTTLE (CA:2.0)
*
10
13249-02500
GASKET
95:-
11
13261-02500
CAP
*
13
13573-02101
SPRING, CARBURETOR RETURN
*
16
13373-46710
PLATE
85:-
20
13247-02340
SCREW, DRAIN
55:-
21
13278-02340
O RING
35:-
22
13267-35010
ADJUSTER, THROTTLE VALVE STOP
*
24
13291-35010
WASHER
40:-
25
13295-33010
O RING (K,LM,A,B)
50:-
26
13684-30650
TUBE, AIR VENT
*
* Kontakta kundtjänst för prisuppgift: 018-15 60 00
