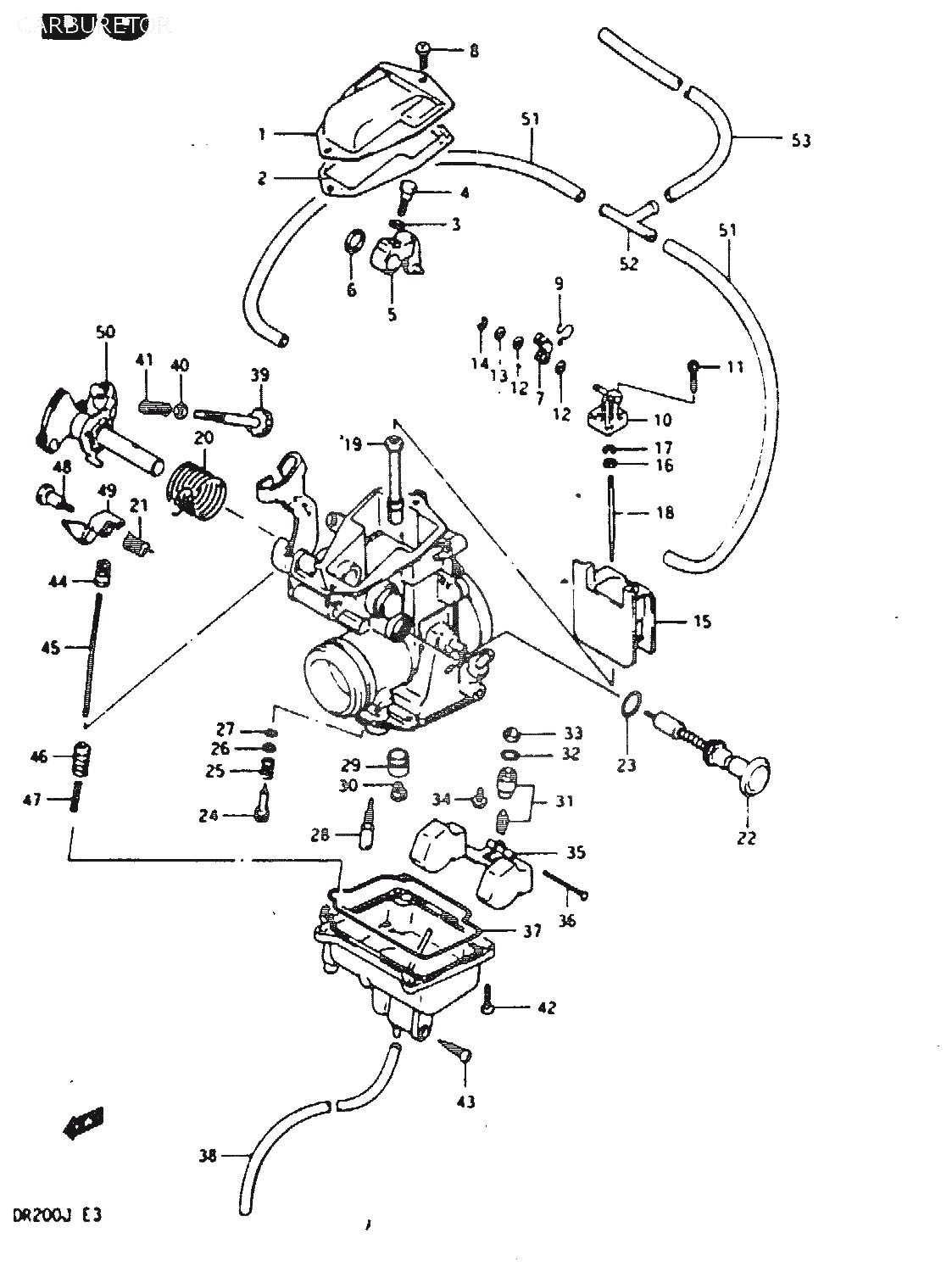

1
13261-27A00
CAP, TOP
*
2
13266-27A00
GASKET
67:-
3
13614-45010
WASHER
*
4
13613-43010
BOLT
*
7
13447-14A00
PLATE
194:-
10
13398-42A20
CONNECTOR
*
10
13398-27A02
CONNECTOR
267:-
11
13566-14A00
SCREW, åtgår 2st
*
12
13445-14A00
GASKET, åtgår 2st
33:-
15
13551-42A20
VALVE, PISTON (CA:1.5)
*
15
13551-42A21
VALVE, PISTON (CA:1.5)
*
16
13382-47010
.PLATE
35:-
17
13394-10010
CLIP, NEEDLE
63:-
18
13383-42A20
NEEDLE, JET (5FP85-3)
*
19
09494-00513
JET, NEEDLE (P-6)
*
20
13573-42A20
SPRING
165:-
21
13494-27A00
SPRING
*
22
13411-42A20
PLUNGER ASSY
303:-
24
13279-47070
SCREW, PILOT (1,1/2)
187:-
25
13268-47070
SPRING
38:-
28
09492-25008
** SUPERSEEDED
*
29
13331-13A00
RING
62:-
30
09491-23011
JET, MAIN (115)
197:-
34
13602-43410
SCREW
24:-
35
13252-27A00
FLOAT
*
36
13254-92311
PIN, FLOAT
30:-
37
13251-27A00
O RING
94:-
38
13684-18900
HOSE, OVER FLOW (3X5X500)
*
39
13267-01400
ADJUSTER
*
40
13427-38300
WASHER
22:-
42
13601-04148
SCREW, åtgår 4st
24:-
43
13247-13A00
SCREW, DRAIN
67:-
44
13499-44500
BOOT
124:-
45
13487-14A00
ROD
108:-
46
13493-27A00
PLUNGER
108:-
47
13271-09400
SPRING
50:-
48
13613-14A00
BOLT
89:-
49
13490-14A00
LEVER
105:-
50
13553-42A20
SHAFT ASSY
*
51
13683-42A30
HOSE ASSY, åtgår 2st
*
52
09367-06002
3 WAY CONNECTOR
43:-
53
13683-42A20
HOSE (5*8*175)
*
* Kontakta kundtjänst för prisuppgift: 018-15 60 00
