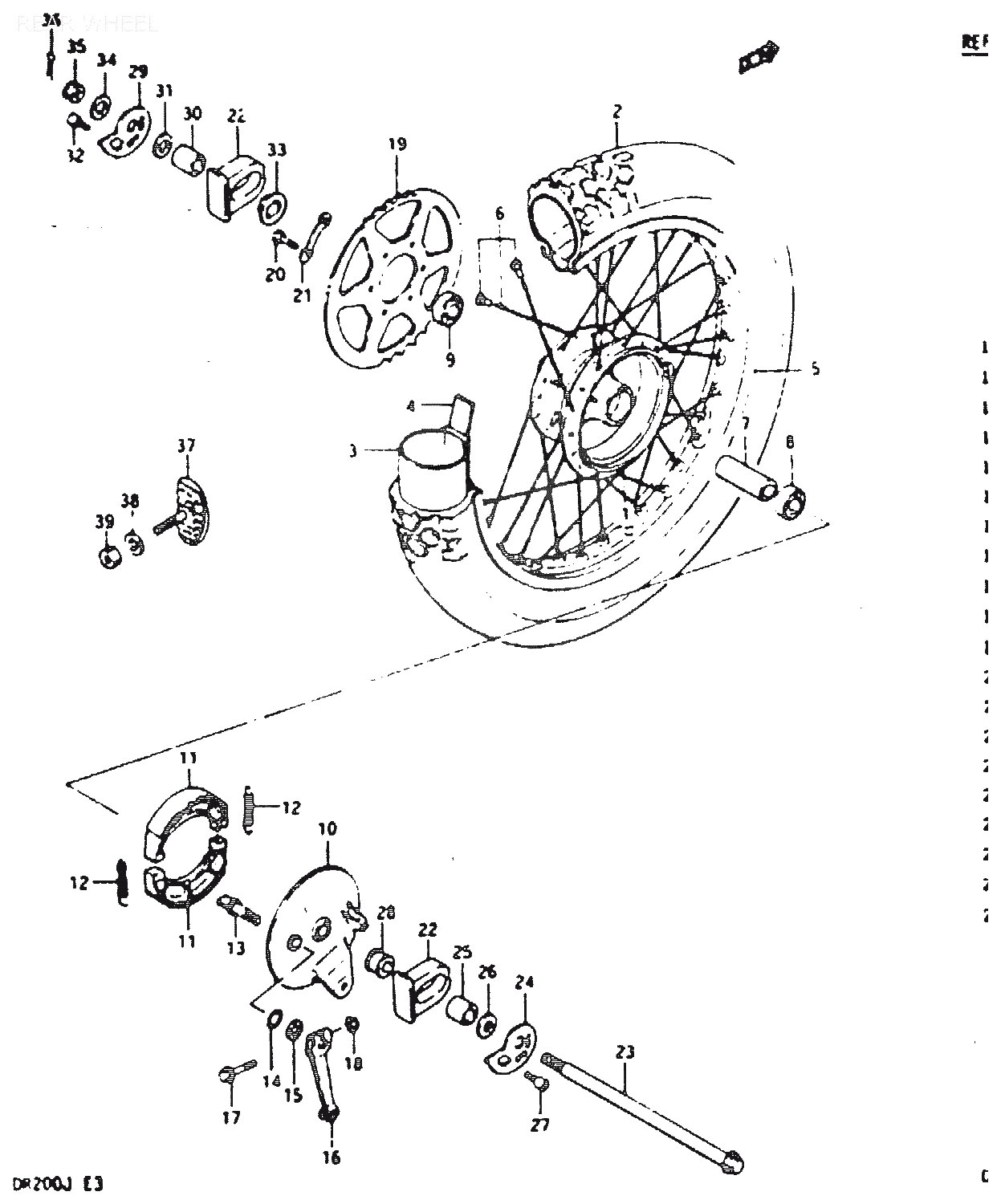

1
64110-44A00
DRUM, REAR HUB
*
2
65100-42A10
TIRE, REAR (100/100-18) BS
*
3
65200-33030
TUBE, INNER REAR
*
4
65261-29230
PROTECTOR
*
5
65311-42A11
RIM, REAR WHEEL (215X18) GOLD (TO 65311-42A11MODEL G/H)
*
6
65320-42A01
SPOKE ASSY, REAR
*
7
09180-15013
SPACER (15.3X21.7X107.50)
145:-
8
08143-62027
BEARING, RH
265:-
10
64210-48000
PANEL, BRAKE ANCHER
2387:-
12
09443-07001
SPRING, åtgår 2st
30:-
16
64451-30501
LEVER, REAR BRAKE CAM
280:-
19
64511-42A00
SPROCKET, REAR (NT:45)
*
20
09111-08065
BOLT, åtgår 6st
55:-
21
09169-08013
LOCK WASHER, åtgår 3st
37:-
22
61470-42A00
CAP, REAR SWINGING ARM, åtgår 2st
*
23
64711-44A10
AXLE, REAR
*
24
61411-42A00
ADJUSTER, CHAIN RH
145:-
25
61413-42A00
SPACER, CHAIN ADJUSTER
113:-
26
09160-15039
WASHER (15.5X30X3.20)
25:-
27
61431-42A10
BOLT, CHAIN ADJUSTER
*
28
64741-42A00
SPACER, AXLE RH
145:-
29
61421-42A00
ADJUSTER, CHAIN LH
145:-
30
61413-42A00
SPACER, CHAIN ADJUSTER
113:-
31
09160-15039
WASHER (15.5X30X3.20)
25:-
32
61431-42A10
BOLT, CHAIN ADJUSTER
*
33
64750-42A00
SPACER, AXLE LH
240:-
* Kontakta kundtjänst för prisuppgift: 018-15 60 00
