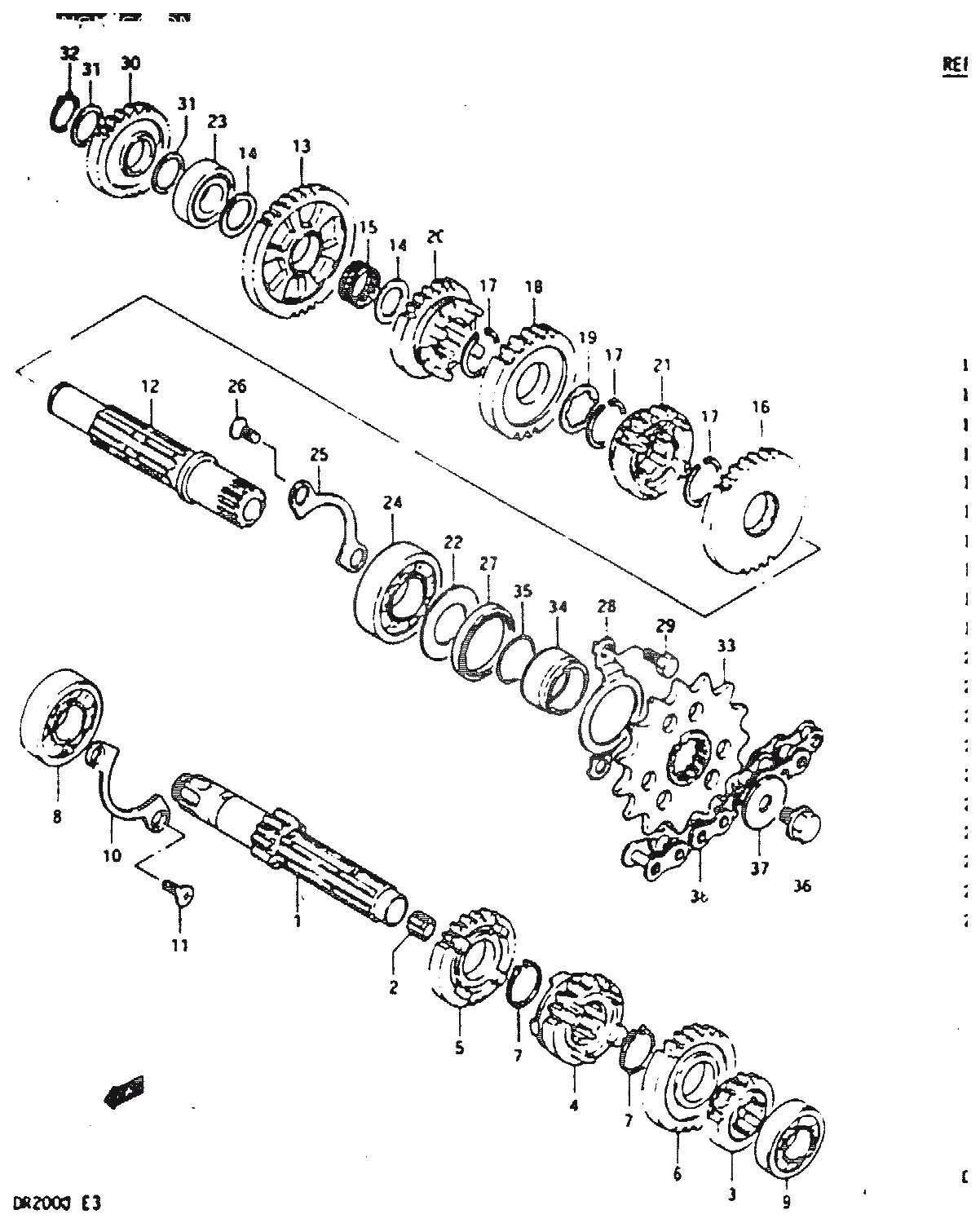

1
24120-42A00
COUNTERSHAFT (NT:11)
*
2
24125-38201
BUSH
49:-
3
24221-42A02
GEAR, 2ND DRIVE (NT:15)
1220:-
4
24231-42A02
GEAR, 3RD DRIVE (NT:16)
*
5
24241-42A00
GEAR, 4TH DRIVE (NT:21)
*
6
24251-42A03
GEAR, 5TH DRIVE (NT:23)
*
7
09380-20009
CIRCLIP, åtgår 2st
27:-
9
08123-60020
BEARING, LH
*
10
24741-05200
RETAINER, DRIVE SHAFT BEARING
45:-
12
24130-42A00
DRIVESHAFT
*
13
24311-42A00
GEAR, 1ST DRIVEN (NT:33)
1292:-
15
09263-17004
BEARING (17X21X9.8)
172:-
16
24320-42A02
GEAR, 2ND DRIVEN (NT:29)
*
17
09380-22006
CIRCLIP, åtgår 3st
45:-
18
24331-42A01
GEAR, 3RD DRIVEN (NT:23)
*
19
09167-22011
WASHER (22.1X27X0.5)
40:-
20
24341-42A01
GEAR, 4TH DRIVEN (NT:23)
*
21
24351-42A02
GEAR, 5TH DRIVEN (NT:21)
1077:-
22
24359-42A00
WASHER, OIL SEALING
32:-
23
09264-17001
BEARING (17X36X12)
568:-
24
09262-22018
BEARING (22X50X14)
349:-
25
24741-05200
RETAINER, DRIVE SHAFT BEARING
45:-
27
09283-30053
SEAL, DRIVE SHAFT OIL
125:-
28
24751-42A01
HOLDER, OIL SEAL
*
30
26260-42A01
GEAR, KICK IDLE (NT:24)
*
31
08211-17221
WASHER, åtgår 2st
34:-
32
08331-31178
CIRCLIP
*
33
27511-42A00
SPROCKET (NT:15)
*
34
27531-42A00
SPACER, ENGINE SPROCKET
164:-
35
09280-21008
O RING (D:2.5,ID:21)
30:-
37
08211-08283
WASHER
38:-
38
27600-42A11-112
CHAIN, DRIVE (520*112L)
*
* Kontakta kundtjänst för prisuppgift: 018-15 60 00
