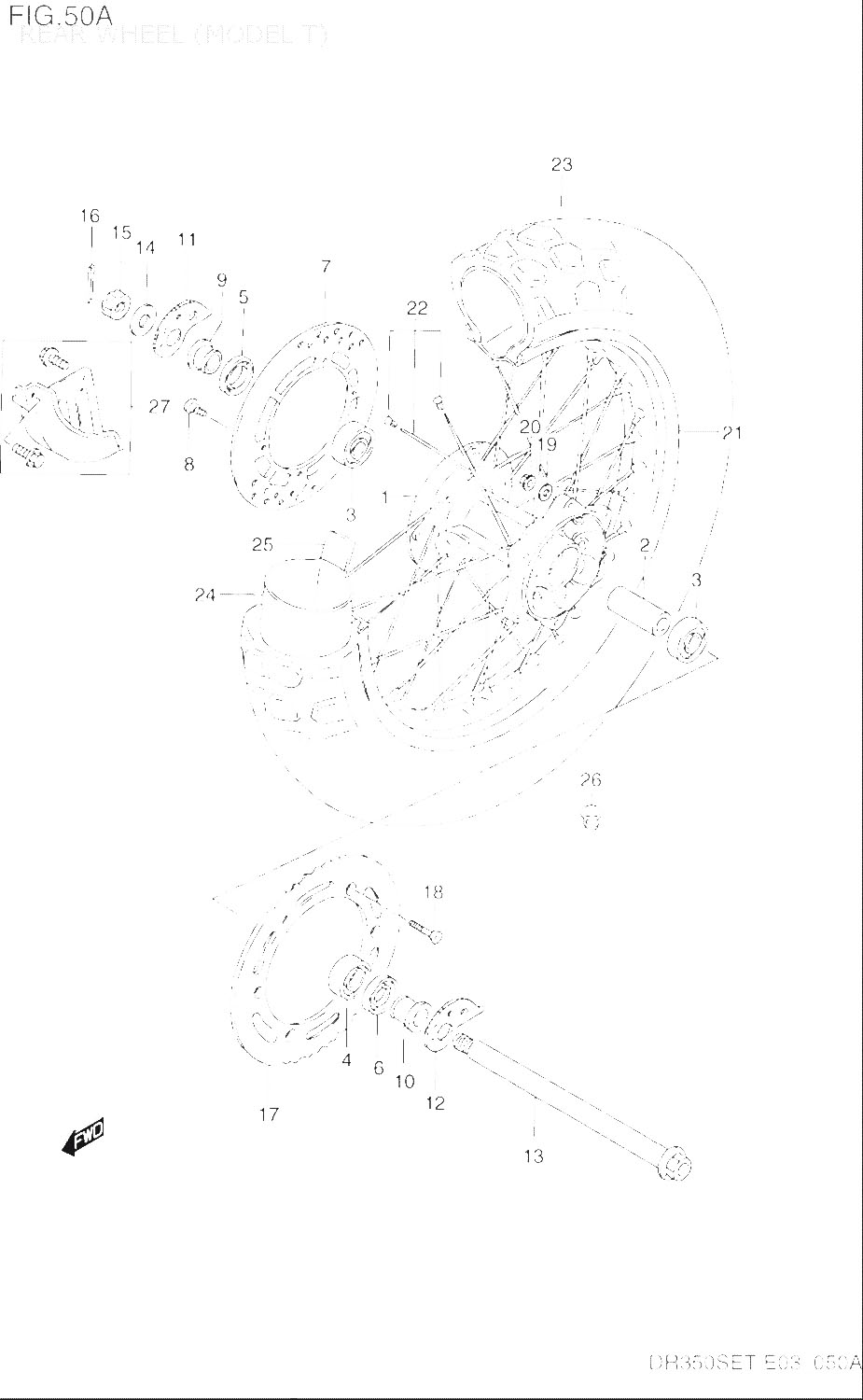

1
64111-14D10
HUB, REAR WHEEL
3862:-
2
64731-14D00
SPACER, BEARING
350:-
3
08133-60047
BEARING, LH, åtgår 2st
434:-
4
08123-62047
BEARING
449:-
5
09282-26001
OIL SEAL, RH (26X42X8)
227:-
6
09283-26019
OIL SEAL, LH (26X47X5)
157:-
7
69211-03D10
DISC, REAR BRAKE
2059:-
8
09106-08155
BOLT, DISC, åtgår 4st
52:-
9
64741-14D00
SPACER, REAR AXLE RH
228:-
10
64751-14D00
SPACER, AXLE LH
330:-
11
61410-14D10
ADJUSTER, CHAIN RH (T:4.0)
515:-
12
61421-14D10
ADJUSTER, CHAIN LH (T:4.0)
*
13
64711-15D50
AXLE, REAR (L:283.5)
1490:-
14
09160-19022
WASHER
70:-
15
08314-4018A
NUT
60:-
16
04111-4030A
COTTER PIN
22:-
17
64511-14E00
SPROCKET, REAR (NT:41-520)
824:-
18
09120-08004
BOLT (8X20), åtgår 6st
40:-
19
08322-0108A
WASHER, SEAT DAMPER UPPER, åtgår 6st
29:-
20
08319-31087
NUT, åtgår 6st
34:-
21
65311-08D00
RIM, REAR WHEEL (2.15X18)
*
22
65320-03D10
SPOKE ASSY, REAR WHEEL
*
23
65110-15D50
TIRE, REAR (110/90-18) DUNLOP
*
24
65200-42AA0
TUBE ASSY, WHEEL INNER
*
25
65261-15D00
PROTECTOR, INNER TUBE
*
26
09250-08013
CAP
30:-
27
69200-28C00
COVER, REAR DISC (MODEL N/P/R/SFOR 69100-15D10OPT,OFF ROAD USE O
398:-
* Kontakta kundtjänst för prisuppgift: 018-15 60 00
