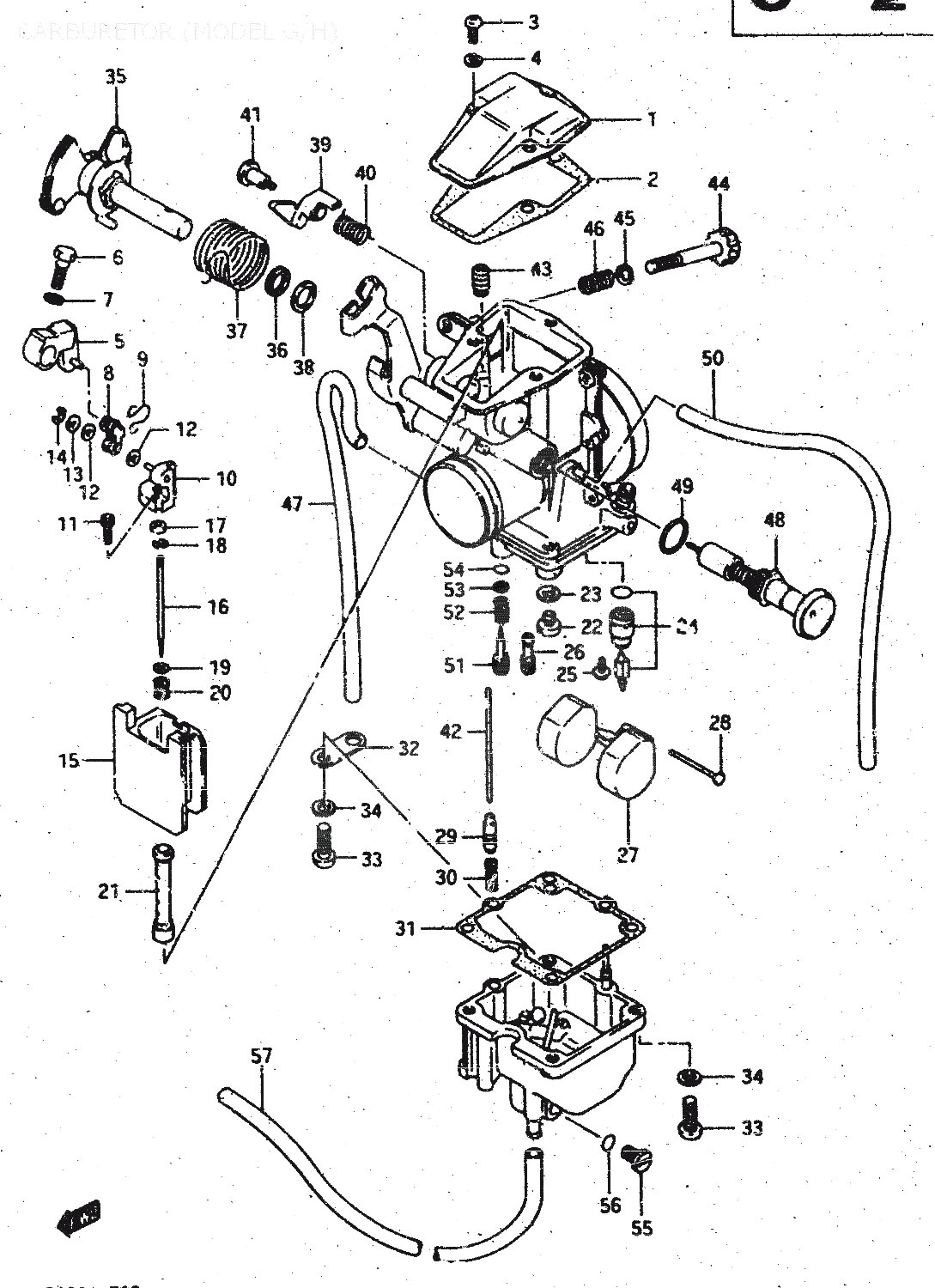

1
13261-14A00
CAP, TOP
*
2
13266-14A00
GASKET
*
4
08321-31046
LOCK WASHER, åtgår 3st
*
6
13613-43010
BOLT
*
7
08321-31056
LOCK WASHER
*
8
13447-14A00
PLATE
194:-
9
13446-14A00
SPRING
*
10
13398-14A01
BRACKET
*
11
13566-14A00
SCREW, åtgår 2st
*
12
13445-14A00
GASKET, åtgår 2st
33:-
15
13551-14A00
VALVE, PISTON
*
16
13383-14A00
NEEDLE, JET (6CM1-3)
*
17
13387-47010
RING
67:-
18
13394-10010
CLIP, NEEDLE
63:-
19
13382-47010
.PLATE
35:-
20
13388-47010
.SPRING
125:-
21
09494-00489
JET, NEEDLE (0-0)
*
22
09491-27009
JET, MAIN (135)
197:-
25
13602-43410
SCREW
24:-
26
09492-15007
.JET, PILOT NO. 1
193:-
27
13252-14A00
FLOAT
*
28
13254-92311
PIN, FLOAT
30:-
29
13493-14A00
PLUNGER
*
30
13271-09400
SPRING
50:-
31
13251-14A00
GASKET
*
32
13693-16600
PLATE
*
34
08321-31056
LOCK WASHER, åtgår 4st
*
35
13553-15A00
SHAFT ASSY
*
36
13556-32410
SEAL
*
37
13573-14A00
SPRING
*
39
13490-14A00
LEVER
105:-
40
13494-14A00
SPRING
*
41
13613-14A00
BOLT
89:-
42
13487-14A00
ROD
108:-
43
13499-44500
BOOT
124:-
44
13267-01400
ADJUSTER
*
45
13427-38300
WASHER
22:-
46
13271-93011
SPRING
*
48
13400-14A00
PLUNGER ASSY
*
51
13279-47070
SCREW, PILOT (1,1/2)
187:-
52
13268-47070
SPRING
38:-
53
13291-29900
WASHER
17:-
55
13247-05010
PLUG, DRAIN
67:-
56
13249-05010
GASKET, DRAIN PLUG
23:-
57
13683-37420
HOSE (3.5X6.5X500)
*
* Kontakta kundtjänst för prisuppgift: 018-15 60 00
