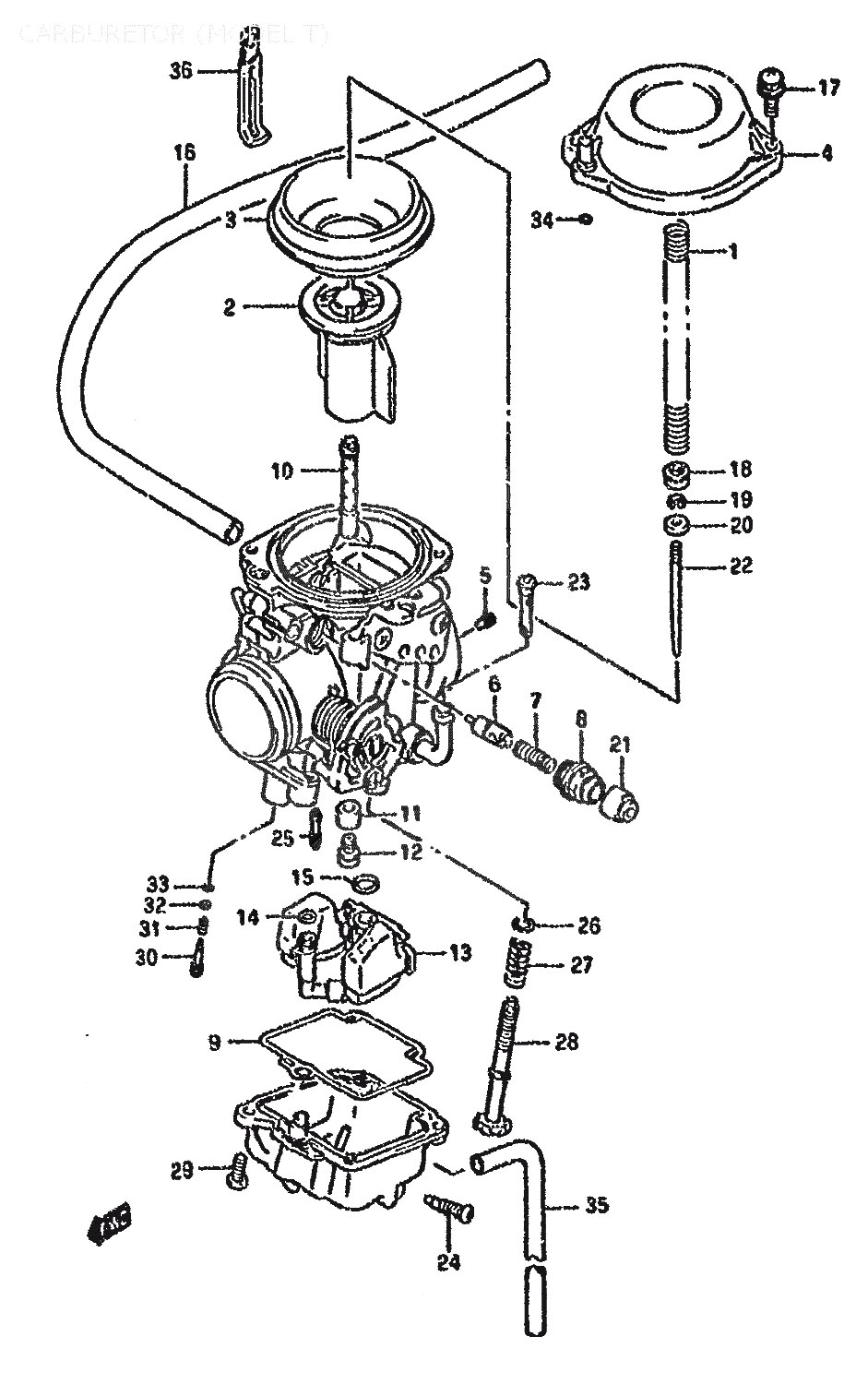

1
13417-17D00
SPRING
98:-
2
13501-12D00
VALVE, PISTON
*
2
13501-13D00
VALVE,PISTON
*
4
13502-12D00
COVER, DIAPHRAGM
*
4
13502-12D10
COVER, DIAPHRAGM
665:-
5
09493-26004
JET, AIR (1.3)
273:-
5
09493-28007
JET, PILOT AIR (1.4)
*
6
13411-12D00
PLUNGER ASSY
307:-
7
13417-22010
SPRING
49:-
8
13418-43410
HOLDER, GUIDE
103:-
9
13258-44B00
GASKET, FLOAT CHAMBER
137:-
10
09494-00749
JET,NEEDLE (X-9)
*
11
13331-07D00
RING
74:-
12
09491-28010
JET, MAIN (140)
133:-
13
13250-13D00
FLOAT ASSY
2193:-
14
13374-46710
O RING
39:-
18
13331-12D00
RING
74:-
19
13394-31210
E RING
60:-
20
13387-07D00
RING
74:-
22
13383-12D20
NEEDLE,JET (6H13-3)
260:-
22
13383-13D10
NEEDLE,JET (6H20-3)
*
23
13236-12C00
FILTER
145:-
24
13247-13A00
SCREW, DRAIN
67:-
25
09492-50022
JET,PILOT (50)
*
26
13427-38300
WASHER
22:-
27
13271-24D00
SPRING
110:-
28
13267-13D01
ADJUSTER
232:-
30
13269-37110
SCREW,PILOT (3/4)
225:-
30
13269-37110
SCREW,PILOT (3/4)
225:-
30
13269-37110
SCREW,PILOT (3/4)
225:-
31
13268-47070
SPRING
38:-
32
13291-29900
WASHER
17:-
34
13278-02340
O RING
30:-
36
09404-06429
CLAMP
20:-
36
13268-47070
SPRING
38:-
37
13291-29900
WASHER
17:-
39
13556-44B00
SEAL, åtgår 2st
72:-
40
13557-47070
WASHER
72:-
41
13617-44080
E RING
35:-
42
13278-02340
O RING
30:-
43
13684-18900
HOSE, OVER FLOW (3X5X500)
*
* Kontakta kundtjänst för prisuppgift: 018-15 60 00
