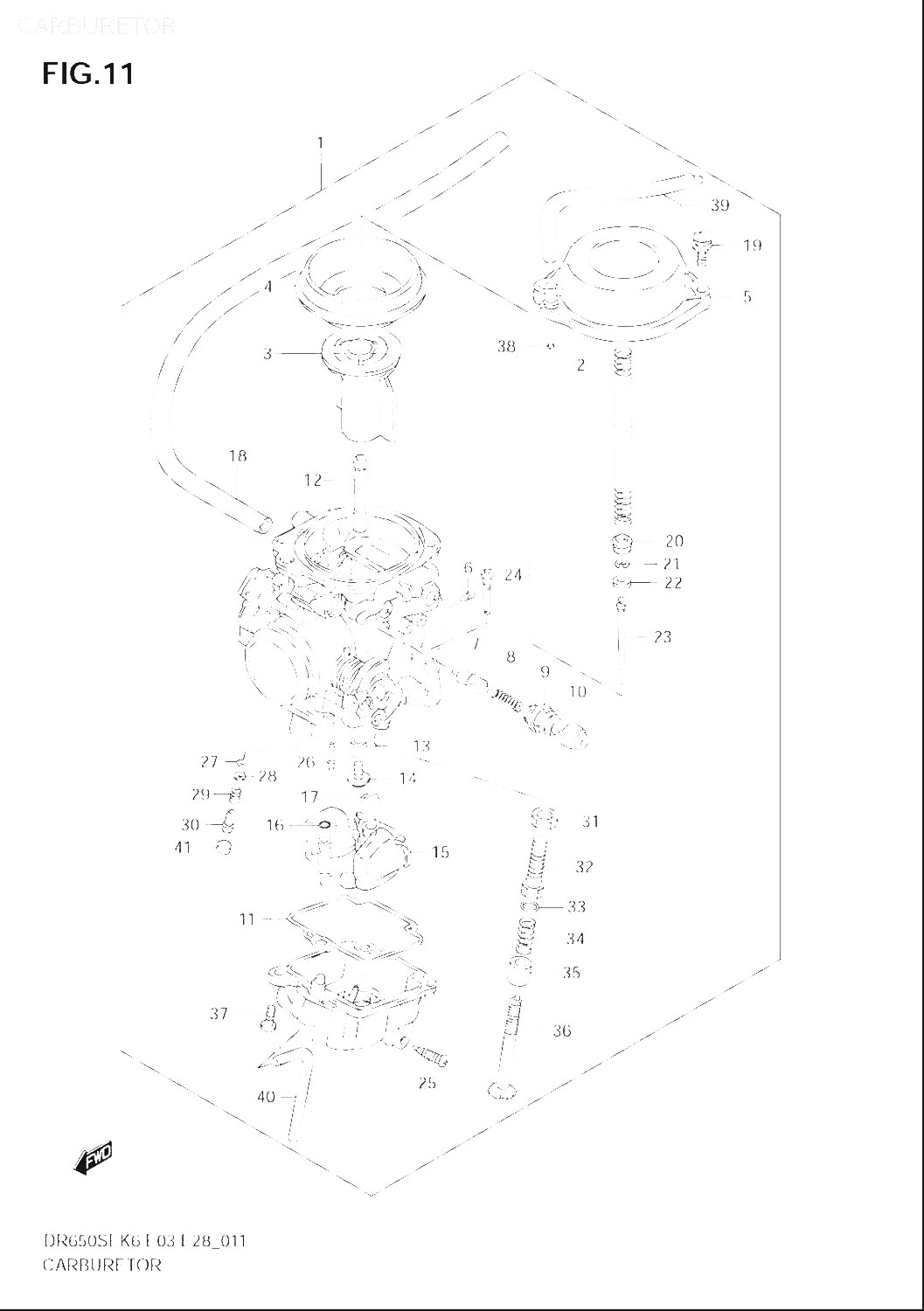

1
13200-32E12
CARBURETOR ASSY
*
1
13200-32E61
CARBURETOR ASSY
*
2
13417-17D00
SPRING
115:-
3
13501-32E00
VALVE, PISTON
1180:-
5
13502-41C00
COVER, DIAPHRAGM
655:-
6
09493-20007
JET, PILOT AIR (1.0)
185:-
7
13411-12D00
PLUNGER ASSY
355:-
8
13417-22010
SPRING
60:-
9
13418-43410
HOLDER, GUIDE
120:-
11
13258-44B00
GASKET, FLOAT CHAMBER
160:-
12
09494-00884
JET, NEEDLE (Y-5M)
705:-
13
13331-07D00
RING
90:-
14
09491-28010
JET, MAIN (140)
155:-
15
13250-12EH0
FLOAT/NEEDLE VALVE ASSY
1635:-
16
13374-46710
O RING
50:-
17
13374-35C00
O RING
120:-
18
13683-32E00
HOSE (6.5X10.5X275)
245:-
19
02112-7516A
SCREW, åtgår 2st
50:-
20
13331-12D00
RING
90:-
21
13394-31210
E RING
75:-
22
13387-07D00
RING
90:-
23
13383-32E10
NEEDLE, JET (6F23-1)
260:-
24
13236-12C00
FILTER
170:-
25
13247-02340
SCREW, DRAIN
55:-
26
09492-42010
JET, PILOT (42.5)
155:-
28
13291-29900
WASHER
20:-
29
13268-47070
SPRING
50:-
30
13279-47070
SCREW, PILOT (1,1/2)
220:-
31
13607-37010
NUT
*
32
13267-31D00
ADJUSTER
440:-
33
13615-43010
WASHER
45:-
34
13271-33C00
SPRING
95:-
35
13432-95210
RING
95:-
36
13267-31D10
ADJUSTER
240:-
38
13278-02340
O RING
35:-
40
13684-32E10
HOSE (3X5X450) (E33E.NO.107128~)
190:-
41
13281-05A00
PLUG
50:-
* Kontakta kundtjänst för prisuppgift: 018-15 60 00
