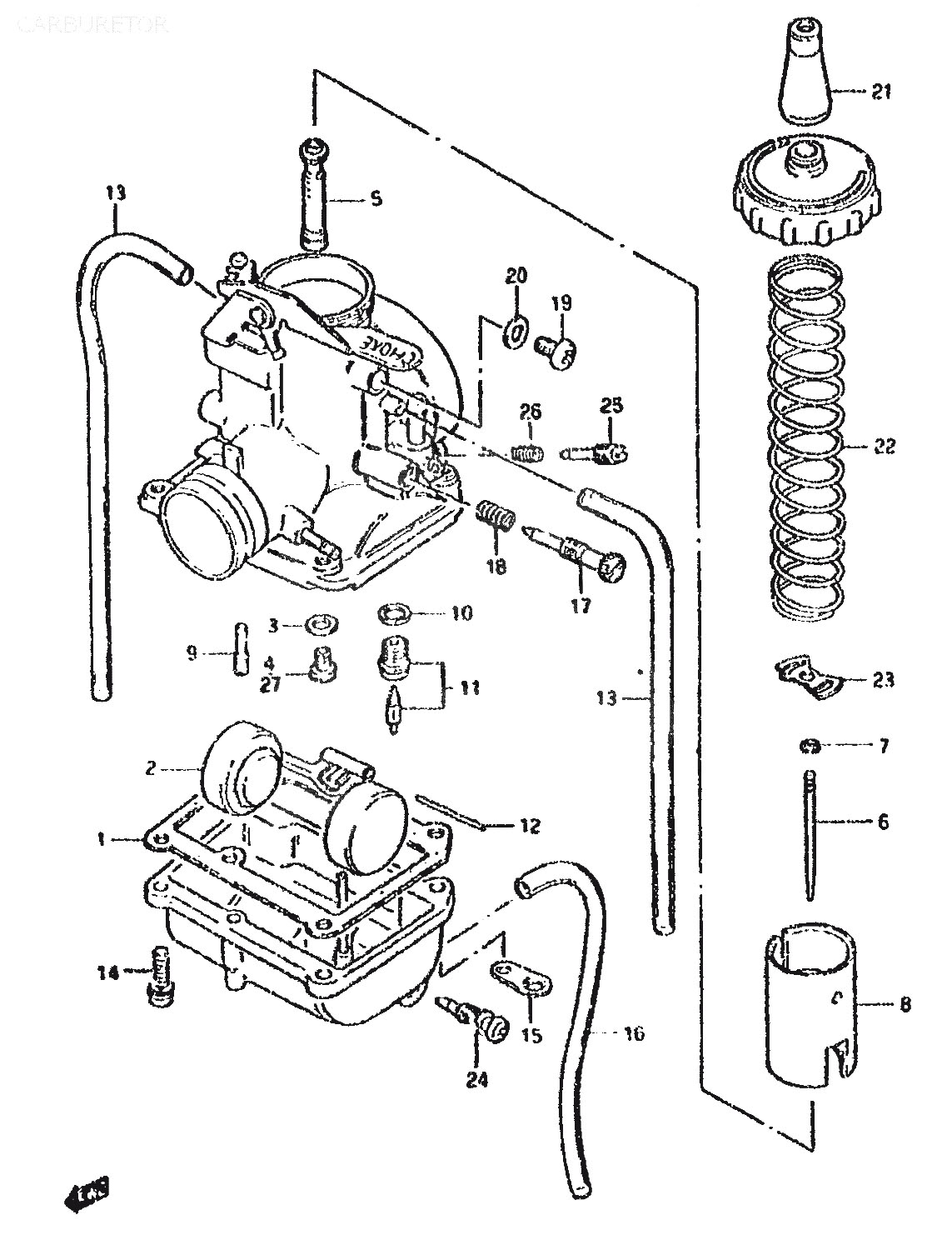

1
13251-23010
GASKET
*
2
13252-03400
FLOAT
*
4
09491-87005
JET, MAIN (87.5)
145:-
5
09494-00398
JET,NEEDLE
308:-
6
13383-03400
NEEDLE, JET (4L27-3)
150:-
7
13394-10010
CLIP, NEEDLE
63:-
8
13551-03400
THROTTLE VALVE (CA:1.5)
427:-
9
09492-25005
JET, PILOT (25)
145:-
10
13392-01010
NEEDLE VALVE SEAT GASKET
22:-
11
13370-23010
VALVE ASSY, NEEDLE
515:-
12
13254-01010
PIN
32:-
13
13683-36A00
HOSE, OVER FLOW (3X5X300), åtgår 2st
*
14
13601-04148
SCREW, åtgår 4st
24:-
15
13693-97010
PLATE, åtgår 2st
*
16
13684-40A00
HOSE
130:-
17
13267-95110
SCREW, THROTTLE STOP
97:-
18
13268-48700
SPRING
38:-
20
13523-46110
WASHER
30:-
21
13681-33010
BOOT
90:-
22
13573-36110
SPRING, THROTTLE VALVE RETUR (O K10-431800 OD=18(0.71)I.D=16.4=7
48:-
23
13581-09210
PLATE
53:-
24
13247-02340
SCREW, DRAIN
48:-
26
13268-01010
SPRING (M12MARK2,M15D,M12M12MARK2,M15D,M12)
48:-
27
09491-82003
JET, MAIN (82.5)
175:-
27
09491-85008
JET, MAIN (85)
197:-
27
09491-90007
JET, MAIN (90)
193:-
27
09491-92004
JET, MAIN (92.5)
145:-
27
09491-95005
.JET, MAIN
194:-
* Kontakta kundtjänst för prisuppgift: 018-15 60 00
